WHF 4215 ETS (968999127) - Husqvarna 42" Walk-Behind Mower (2002-02) Frame Assembly Parts Diagram

42" Walk-Behind Mower

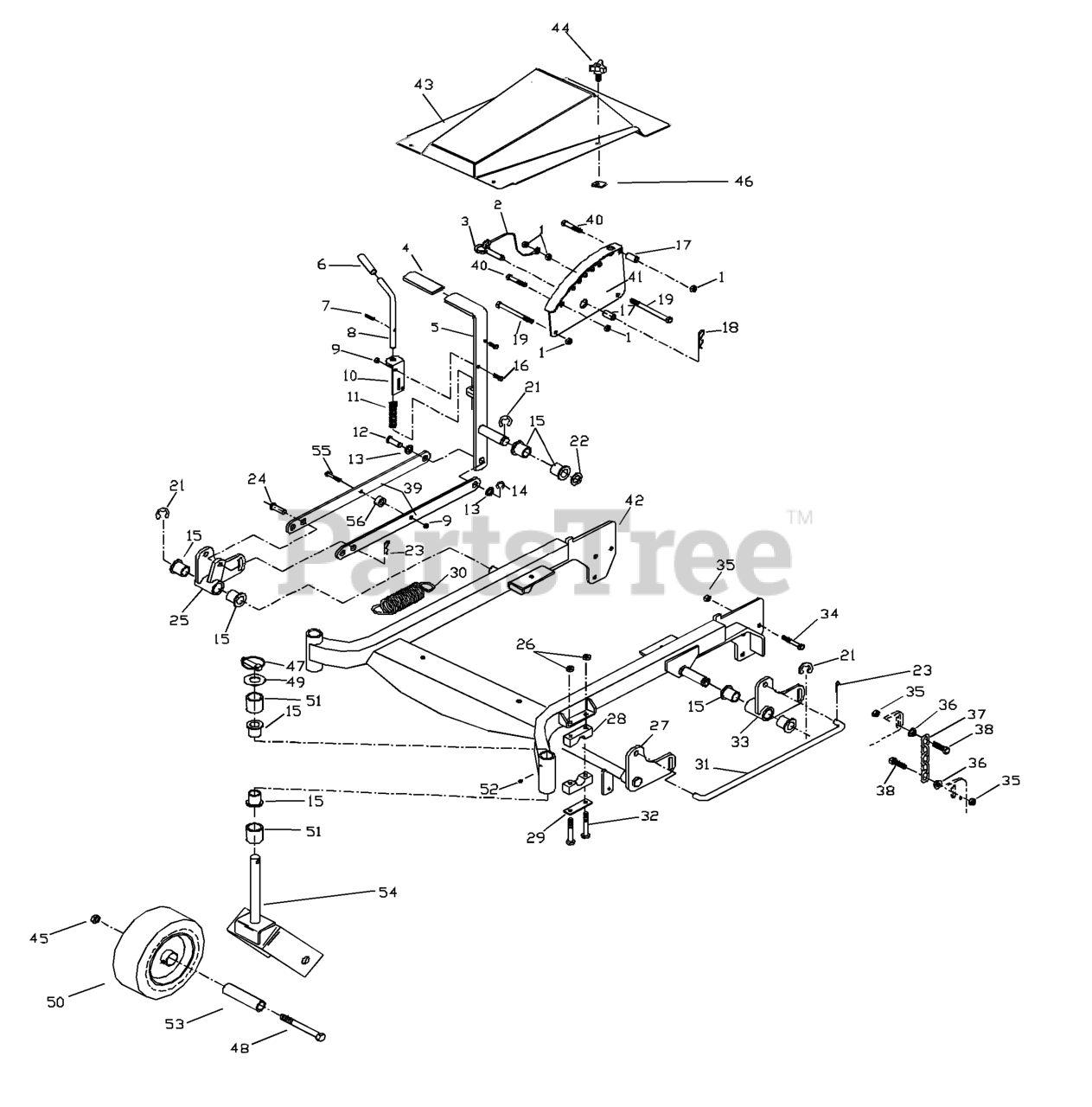

Frame Assembly Parts Diagram

  • Title

1

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

2

Husqvarna 539102563

LANYARD

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539102526

HITCH PIN
(Superseded to 596917701)

$

$

Not available

4

Husqvarna 539102515

GRIP

$

$

Not available

5

Husqvarna 539105604

LIFT LEVER

$

$

Not available

6

Husqvarna 539101050

GRIP

$3.49

$

In Stock, Qty 5

0

7

Husqvarna 539106532

ROLL PIN

$3.49

$

In Stock, Qty 6

0

8

Husqvarna 539104523

PIN

$

$

Not available

9

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$3.49

$

In Stock, only 4 left!

0

10

Husqvarna 539103534

PIN MT, UPPER

$

$

Not available

11

Husqvarna 539101058

SPRING

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539105060

CLEVIS PIN

$

$

Not available

13

Husqvarna 539991043

BUSHING
(Superseded to 596933401)

$3.49

$

In Stock, Qty 13

0

14

Husqvarna 539105069

E-RING 5/8

$

$

Not available

15

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 14

0

16

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539104530

DECK LIFT SPACER

$

$

Not available

18

Husqvarna 539976989

HAIRPIN #4
(Superseded to 596273101)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 539990591

HCS 3/8C X 4 1/2

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104761

GREASE ZERK LONG

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539101802

E-RING 7/8

$

$

Not available

22

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.49

$

In Stock, only 1 left!

0

23

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 596029501)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$

$

Not available

25

Husqvarna 539104606

BELLCRANK WLDMT - RT

$

$

Not available

26

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.49

$

In Stock, Qty 14

0

27

Husqvarna 539104608

LIFT WLDMT

$

$

Not available

28

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

In Stock, Qty 11

0

29

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

30

Husqvarna 539102642

SPRING

$31.99

$

In Stock, Qty 5

0

31

Husqvarna 539105652

CONNECTING ROD

$

$

Not available

32

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

33

Husqvarna 539104607

BELLCRANK WLDMT-LT

$

$

Not available

34

Husqvarna 539100143

HCS 7/16-14 X 1 GR 5 ZD
(Superseded to 596238601)

$3.49

$

Usually ships in 3-10 days

0

35

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.49

$

In Stock, only 2 left!

0

36

Husqvarna 539102582

NUT 7/16C WHIZ
(Superseded to 596577901)

$3.49

$

In Stock, only 3 left!

0

37

Husqvarna 539102641

LIFT CHAIN
(Superseded to 594722002)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 539101175

HCS 7/16C X 1 1/2
(Superseded to 594944601)

$3.49

$

In Stock, only 2 left!

0

39

Husqvarna 539106622

FLAT LINKAGE

$

$

Not available

40

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

41

Husqvarna 539105582

HEIGHT ADJ PLATE

$

$

Not available

42

Husqvarna 539106595

FRONT FRAME (ORANGE)

$

$

Not available

43

Husqvarna 539106064

HOOD

$

$

Not available

44

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539101874

LYNCH PIN 7/16

$5.99

$

In Stock, Qty 5

0

48

Husqvarna 539101907

HCS 1/2C X 5 1/2

$13.99

$

In Stock, Qty 6

0

49

Husqvarna 539106656

BSHG 1.003X1.252X1.75 LG OIL

$4.99

$

In Stock, only 1 left!

0

50

Husqvarna 539104594

TIRE, CASTER (COMPLETE)
(Superseded to 539106993)

$113.99

$

In Stock, Qty 7

0

50

Husqvarna 539106993

TIRE/WHEEL.CASTER

$113.99

$

In Stock, Qty 7

0

50

Husqvarna 539103495

TIRE.11X4.00-5NHS.4PR.SMOOTH

$85.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539106995

TIRE - CASTER
(Superseded to 539114697)

$

$

Not available

50

Husqvarna 539104600

RIM

$

$

Not available

50

Husqvarna 539106994

RIM

$

$

Not available

50

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0

50

Husqvarna 539103300

ZERK
(Superseded to 542164296)

$3.99

$

In Stock, only 2 left!

0

50

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, Qty 20+

0

50

Husqvarna 539977356

ENDCAP, NOTCHED

$7.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 539106598

CASTER SPACERS - 1"

$

$

Not available

52

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

53

Husqvarna 539105543

SPACER

$11.99

$

In Stock, Qty 20+

0

54

Husqvarna 539106588

CASTOR FORK

$

$

Not available

55

Husqvarna 539100266

BOLT HEX 1/4 X 1-1/4

$

$

Not available

56

Husqvarna 539923515

SPACER

$5.99

$

In Stock, only 2 left!

0
