WHF 4215 ETS (968999127) - Husqvarna 42" Walk-Behind Mower (2002-09) Front Deck Assembly 42" Parts Diagram

42" Walk-Behind Mower

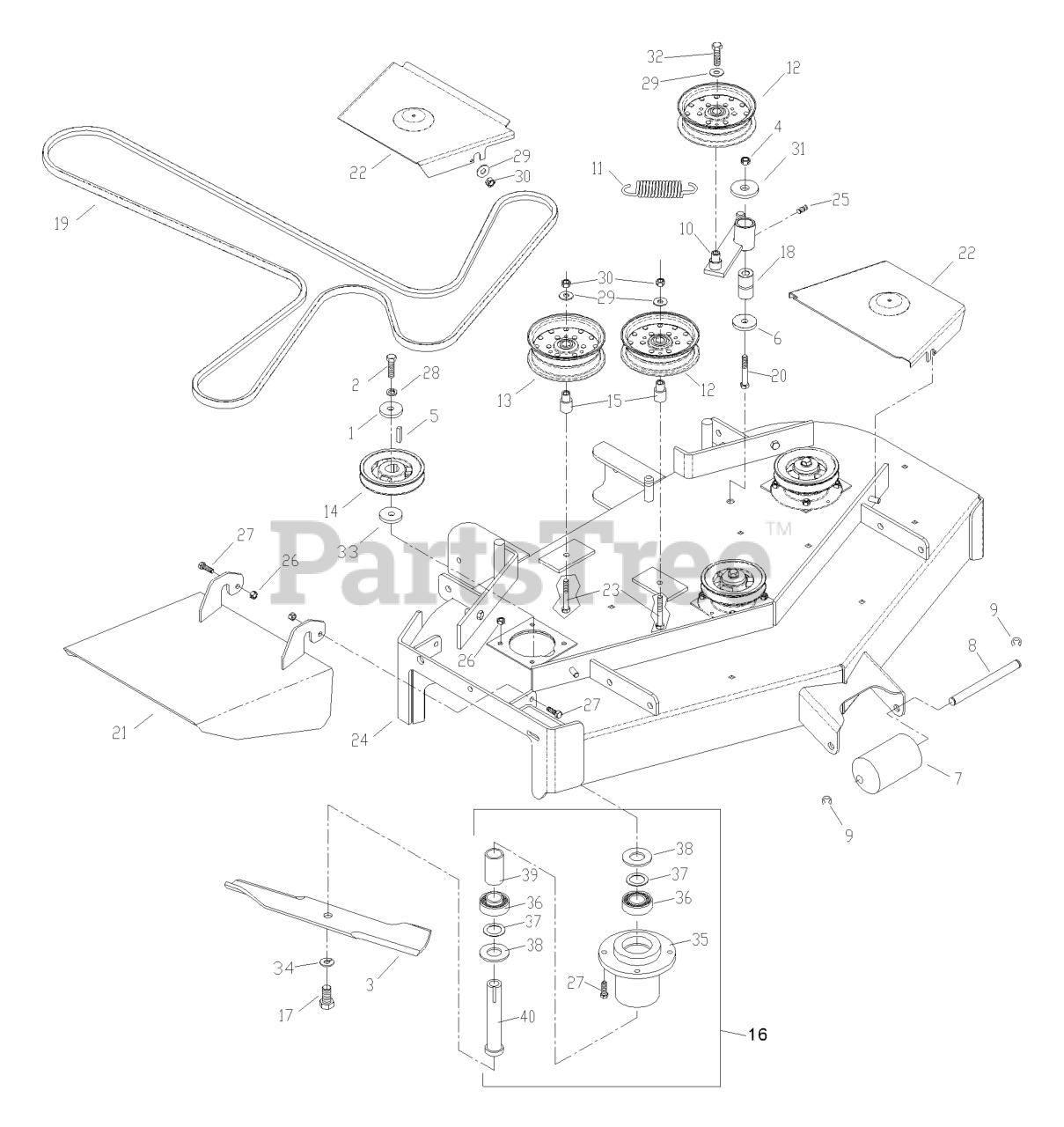

Front Deck Assembly 42" Parts Diagram

  • Title

1

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

2

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

3

Husqvarna 539103274

BLADE OEM, 14-7/8

$20.99

$

In Stock, only 2 left!

0

4

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

6

Husqvarna 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$11.99

$

In Stock, only 2 left!

0

7

Husqvarna 539976828

ROLLER

$

$

Not available

8

Husqvarna 539103437

AXLE

$

$

Not available

9

Husqvarna 539101949

E-RING 1/2 (2 2)

$

$

Not available

10

Husqvarna 539103230

IDLER ARM

$

$

Not available

11

Husqvarna 539103256

SPRING

$13.99

$

In Stock, Qty 17

0

12

Husqvarna 539103257

IDLER PULLEY

$56.99

$

In Stock, Qty 20+

0

13

Husqvarna 539103258

IDLER PULLEY (TALL)

$51.99

$

In Stock, Qty 8

0

14

Husqvarna 539103283

PULLEY

$68.99

$

In Stock, only 2 left!

0

15

Husqvarna 539103295

IDLER BUSHING

$17.99

$

In Stock, Qty 18

0

16

Husqvarna 539104403

HOUSING ASM.
(Superseded to 539107408)

$512.99

$

In Stock, only 3 left!

0

17

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

18

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 20+

0

19

Husqvarna 539105642

BELT
(Superseded to 539109244)

$

$

Not available

20

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 14

0

21

Husqvarna 539105361

DISCHARGE CHUTE 42"

$

$

Not available

22

Husqvarna 539105363

BELT SHIELD

$

$

Not available

23

Husqvarna 539990637

HCS 3/8C X 2 1/2

$4.99

$

In Stock, Qty 18

0

24

Husqvarna 539106575

DECK W/DECALS

$

$

Not available

25

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

27

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

29

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

30

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

31

Husqvarna 539990550

WASHER 1/2 FLAT

$

$

Not available

32

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 11

0

33

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$11.99

$

In Stock, only 3 left!

0

34

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, only 2 left!

0

35

Husqvarna 539104852

HOUSING, DIE CAST

$74.99

$

In Stock, only 2 left!

0

36

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$35.99

$

In Stock, only 1 left!

0

37

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$

$

Not available

38

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$11.99

$

In Stock, only 3 left!

0

39

Husqvarna 539102676

SPACER

$10.99

$

In Stock, Qty 14

0

40

Husqvarna 539104402

SPINDLE

$

$

Not available

41

Husqvarna 539105439

MAIN BAFFLE

$

$

Not available

42

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

43

Husqvarna 539105435

CENTER BAFFLE

$

$

Not available

44

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0
