WHF 4817 (966947005) - Husqvarna 48" Walk-Behind Mower (2009-09) 36" Mower Deck Parts Diagram

48" Walk-Behind Mower

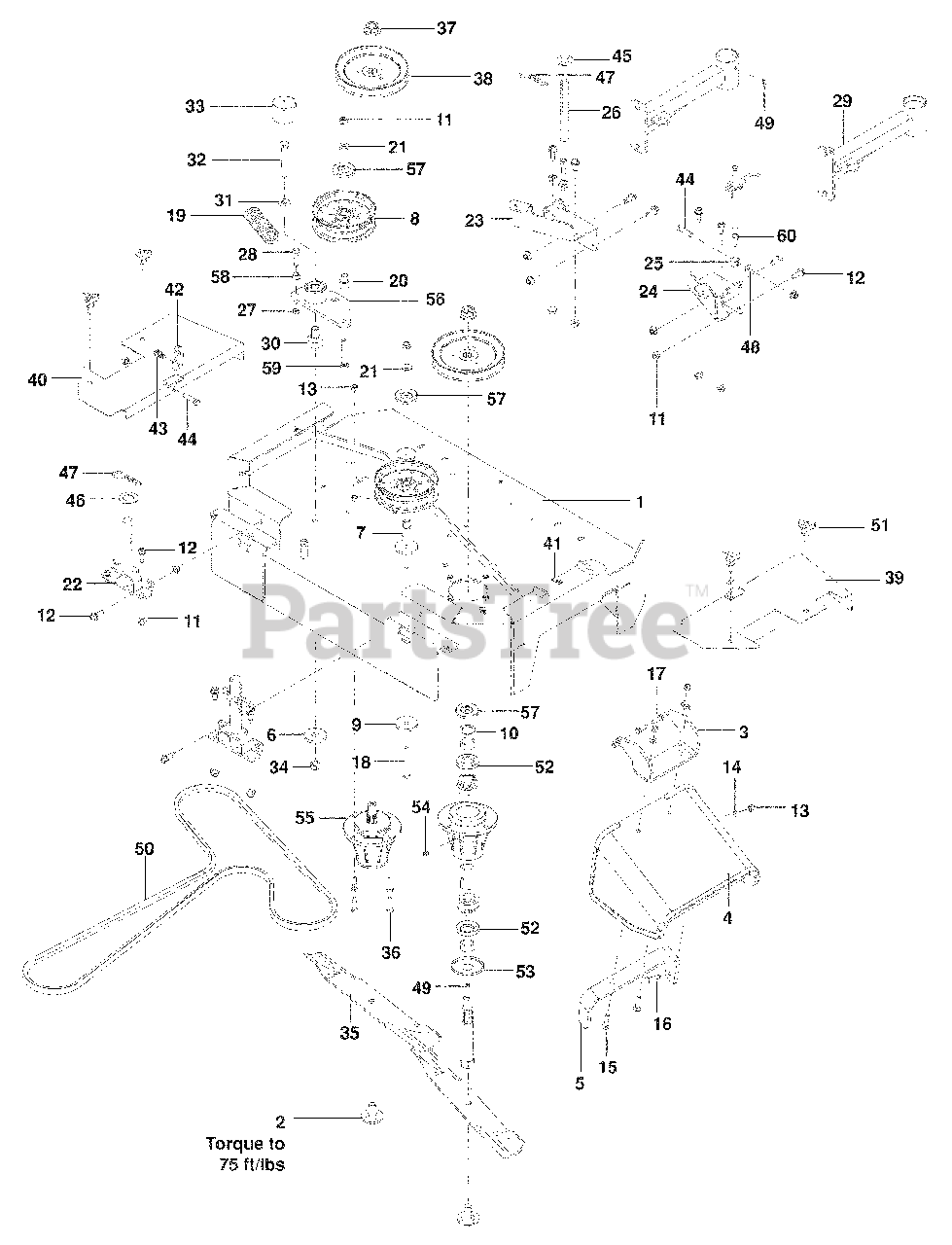

36" Mower Deck Parts Diagram

  • Title

1

Husqvarna 574615101

CUTTER DECK w/ DECALS

$

$

Not available

2

Husqvarna 539119007

BLADE BOLT w/ WASHER

$8.99

$

In Stock, Qty 18

0

3

Husqvarna 539132583

HINGE, CHUTE

$

$

Not available

4

Husqvarna 539130903

CHUTE

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130922

REINFORCEMENT, BRKT

$

$

Not available

6

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

7

Husqvarna 539103295

BUSHING IDLER

$9.99

$

In Stock, Qty 17

0

8

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, Qty 11

0

9

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

10

Husqvarna 539916561

WASHER

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 521966501

NUT 3/8-16 HEX FLG NYLOC

$

$

Currently unavailable

12

Husqvarna 521966501

BOLT 3/8-16 x 1 THD FRM

$

$

Currently unavailable

13

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

16

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 525852901

SPRING

$

$

Not available

20

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

21

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 525854001

PIN ASSY

$

$

Not available

23

Husqvarna 525757302

SUPPORT, FRONT LH

$

$

Not available

24

Husqvarna 525757402

SUPPORT, FRONT RH

$

$

Not available

25

Husqvarna 539113739

ROD END 3/8-24 RH

$

$

Not available

26

Husqvarna 525854101

ROD, HOC

$

$

Not available

27

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539107042

HCS 3/8-16 x 1½ GR 8

$3.99

$

In Stock, Qty 6

0

29

Husqvarna 525853602

SUPPORT, CASTER

$

$

Not available

30

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 539115528

WASHER ½" BELLEVILLE

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 539103433

HCS ½-13 x 3¼

$4.99

$

In Stock, Qty 11

0

33

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

34

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539100341

BLADE, 18"

$

$

Not available

36

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, Qty 10

0

37

Husqvarna 539130653

NUT ¾-16 FLANGE

$7.49

$

In Stock, only 1 left!

0

38

Husqvarna 522023801

PULLEY

$

$

Not available

39

Husqvarna 525803202

COVER, RH

$

$

Not available

40

Husqvarna 525803102

COVER, LH

$

$

Not available

41

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 15

0

42

Husqvarna 525833002

HOOK

$

$

Not available

43

Husqvarna 539132687

SPRING, COMPRESSION

$

$

Not available

44

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

45

Husqvarna 539109333

WASHER ¾ FLAT SAE

$4.99

$

In Stock, Qty 19

0

46

Husqvarna 539113987

SPACER

$

$

Not available

47

Husqvarna 525305801

HAIR PIN COTTER 3"

$

$

Not available

48

Husqvarna 539109562

WASHER 3/8 x ¾

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 523075001

BELT, DECK

$113.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539104411

KNOB w/ STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

53

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

54

Husqvarna 539977326

GREASE POPPET

$13.99

$

In Stock, only 1 left!

0

55

Husqvarna 539131385

HOUSING ASSY
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539130391

ARM, IDLER w/ BEARINGS

$

$

Not available

57

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

58

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539990155

NUT 3/8-24 HEX GR 2

$4.99

$

In Stock, Qty 16

0
