WHF 4817 (966947005) - Husqvarna 48" Walk-Behind Mower (2009-09) Engine Parts Diagram

48" Walk-Behind Mower

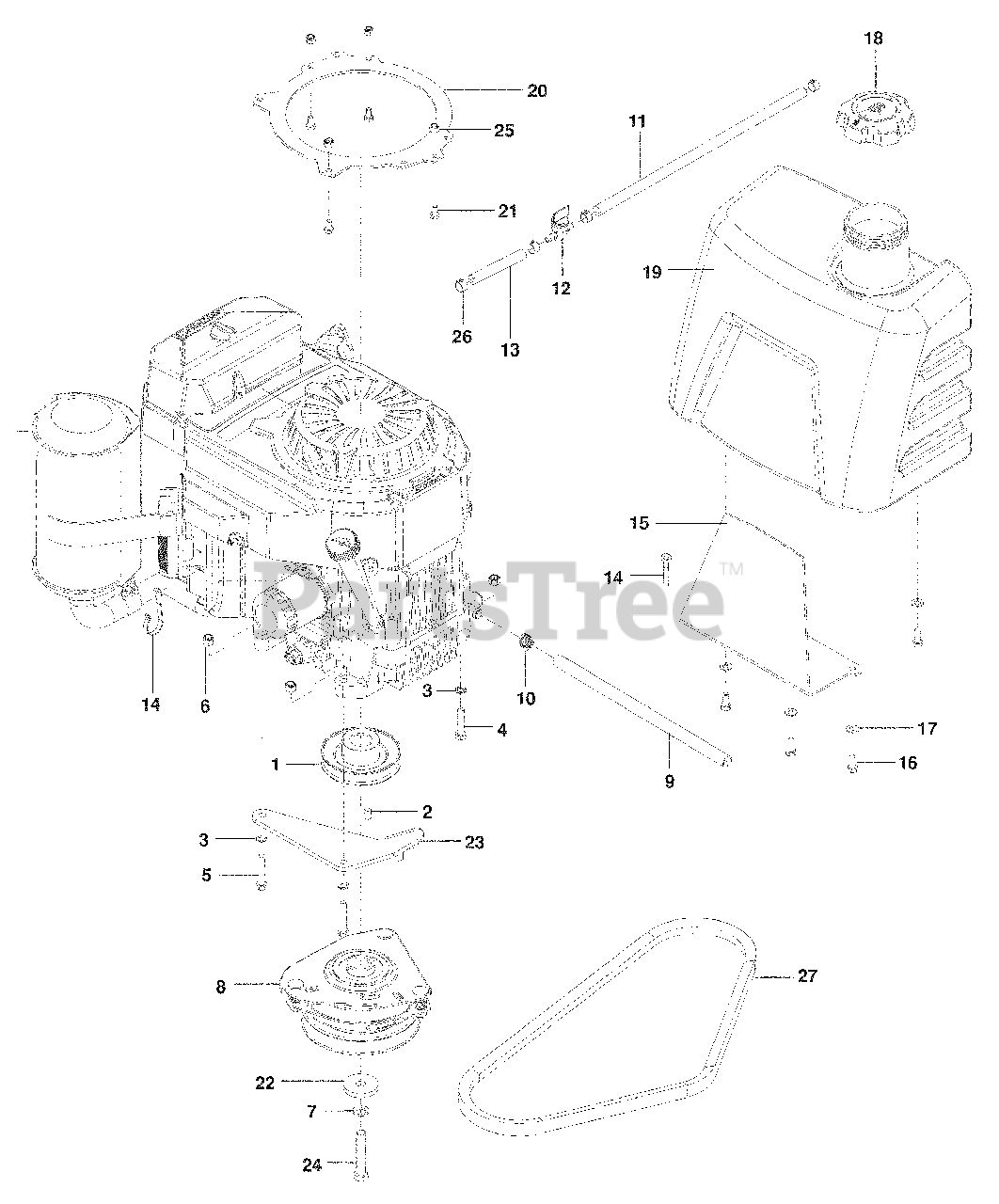

Engine Parts Diagram

  • Title

1

Husqvarna 539132525

PULLEY

$

$

Not available

2

Husqvarna 539105718

KEY ¼ SQ x ½

$

$

Not available

3

Husqvarna 539109556

LOCK WASHER 5/16 STAR

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539976935

HCS 5/16-18 x 1½

$1.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

8

Husqvarna 532400008

CLUTCH 90 FT/LB
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107937

HOSE, OIL DRAIN

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976966

CLAMP, HOSE

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108212

FUEL LINE, 12"

$1.99

$

In Stock, Qty 5

0

12

Husqvarna 539916325

VALVE, FUEL

$47.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575296701

FUEL LINE, 3½"

$

$

Not available

14

Husqvarna 539107098

CLAMP

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539132633

PLATE

$

$

Not available

16

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539130393

CAP, FUEL TANK

$

$

Not available

19

Husqvarna 539132549

TANK, FUEL
(Superseded to 575320601)

$

$

Not available

20

Husqvarna 539132548

ADAPTER, RECOIL

$

$

Not available

21

Husqvarna 539990071

HCS ¼-20 x ½

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

23

Husqvarna 539132527

CLUTCH STOP

$

$

Not available

24

Husqvarna 539991120

HCS 7/16-20 x 2½

$6.49

$

In Stock, Qty 11

0

25

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539912222

CLAMP

$4.99

$

In Stock, only 1 left!

0

27

Husqvarna 539106725

BELT

$30.99

$

In Stock, only 1 left!

0
