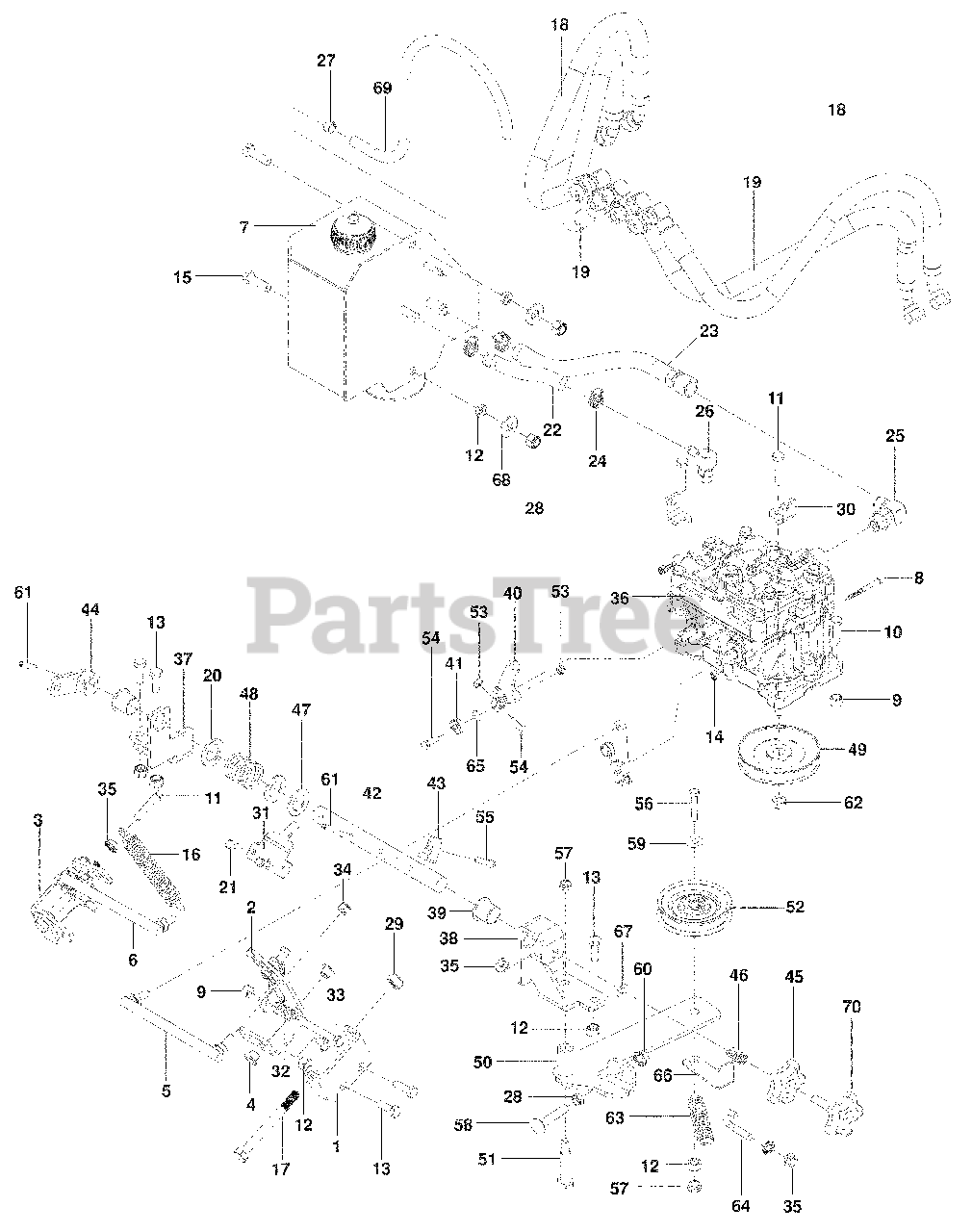

WHF 4817 (966947005) - Husqvarna 48" Walk-Behind Mower (2009-09) Hydro Pump-Motor Parts Diagram

48" Walk-Behind Mower

Hydro Pump-Motor Parts Diagram

  • Title

1

Husqvarna 539132535

BRACKET

$

$

Not available

2

Husqvarna 539132537

BELLCRANK, RH

$

$

Not available

3

Husqvarna 539132539

BELLCRANK, LH

$

$

Not available

4

Husqvarna 539132533

BEARING, FLANGE

$

$

Not available

5

Husqvarna 539132550

LINK, CONTROL, RH

$51.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539132551

LINK, CONTROL, LH

$

$

Not available

7

Husqvarna 573944101

RESERVOIR

$

$

Not available

8

Husqvarna 521976101

SCREW #10-24 SCKT HD

$

$

Not available

9

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 3 left!

0

11

Husqvarna 539976935

HCS 5/16-18 x 1½

$1.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539108507

Hcs 3/8-16 x 7/8

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976977

NUT #10-24 HEX NYLOC

$

$

Not available

15

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 539916159

SPRING

$7.49

$

In Stock, only 4 left!

0

17

Husqvarna 510129901

HCS M10-1.5 x 100 GR 8.8

$

$

Not available

18

Husqvarna 505203201

HOSE, 4

$

$

Not available

19

Husqvarna 505203101

HOSE, 3

$

$

Not available

20

Husqvarna 510362801

WASHER, FIBER

$

$

Not available

21

Husqvarna 539107705

HCS M6-1.0 x 16MM GR 8.8

$

$

Not available

22

Husqvarna 505280201

HOSE, RETURN

$

$

Not available

23

Husqvarna 505280101

HOSE, SUCTION

$

$

Not available

24

Husqvarna 539976966

CLAMP, HOSE

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101242

ELBOW 90°

$39.99

$

Usually ships in 3-10 days

0

26

Husqvarna 505280401

FITTING 90°

$

$

Not available

27

Husqvarna 539912222

CLAMP

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 539109332

Nut 3/8-16 Hex Jam
(Superseded to 596433501)

$3.99

$

In Stock, Qty 11

0

29

Husqvarna 510130001

NUT, M10-1.5 NYLON RING

$

$

Not available

30

Husqvarna 510111002

BRACKET, SPRING

$

$

Not available

31

Husqvarna 539132515

PLATE, NEUTRAL STOP

$

$

Not available

32

Husqvarna 539101224

SPRING

$26.99

$

In Stock, only 1 left!

0

33

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539103153

NUT M8 x 1.25 NYLOC

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 521976001

PUMP, DUP10S

$

$

Not available

37

Husqvarna 539132511

SUPPORT, CAM LH

$

$

Not available

38

Husqvarna 539132513

SUPPORT, CAM RH

$

$

Not available

39

Husqvarna 539132520

BEARING, FLANGE

$

$

Not available

40

Husqvarna 539132516

ARM, HYDRO

$

$

Not available

41

Husqvarna 539132523

BEARING, FOLLOWER

$6.99

$

In Stock, only 1 left!

0

42

Husqvarna 539132519

SHAFT, CAM

$

$

Not available

43

Husqvarna 539132518

CAM, TRACKING

$

$

Not available

44

Husqvarna 539132517

ARM, SPEED CONTROL

$

$

Not available

45

Husqvarna 522718401

KNOB

$

$

Not available

46

Husqvarna 539132687

SPRING, COMPRESSION

$

$

Not available

47

Husqvarna 539132521

WASHER, 20MM

$

$

Not available

48

Husqvarna 539132524

SPRING, COMPRESSION

$

$

Not available

49

Husqvarna 539131727

PULLEY, PUMP

$

$

Not available

50

Husqvarna 539132532

ARM, IDLER

$

$

Not available

51

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 532004898)

$

$

Not available

52

Husqvarna 539113683

V-IDLER

$66.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539108120

NUT ¼-20 HEX THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

54

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539106307

HCS M6-1.0 x 30MM GR 8.8

$

$

Not available

56

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

57

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 6

0

58

Husqvarna 539100145

RHSNB 3/8-16 x 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 6

0

59

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 505224001

ROLL PIN, 6 MM x 30 MM

$

$

Not available

62

Husqvarna 539131528

NUT, M10-1.5 L/H HEX

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539010195

SPRING

$47.99

$

In Stock, Qty 8

0

64

Husqvarna 539112896

J-BOLT

$

$

Not available

65

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

66

Husqvarna 525612702

KEEPER, BELT

$

$

Not available

67

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 539922091

FUEL LINE

$3.99

$

Usually ships in 3-10 days

0

70

Husqvarna 522718501

KNOB, ADJUSTMENT

$

$

Not available
