WHF 4817 (968999252) - Husqvarna 48" Walk-Behind Mower (2004-09) Deck 48" Parts Diagram

48" Walk-Behind Mower

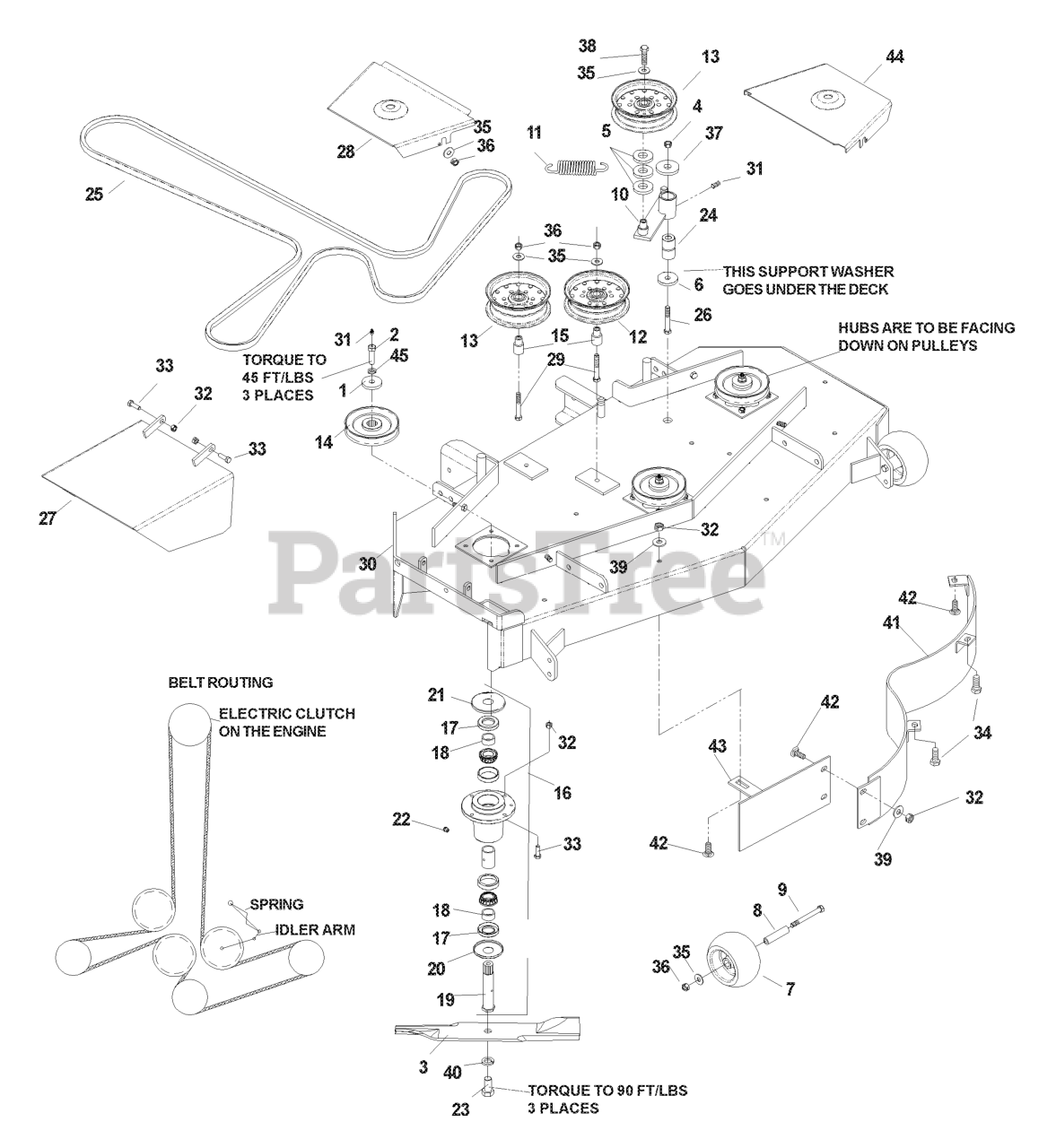

Deck 48" Parts Diagram

  • Title

1

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 9

0

2

Husqvarna 539108766

DRILLED BOLT 7/16-20 X 1 1/2"
(Superseded to 539112120)

$31.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539100340

BLADE OEM 16 1/4"

$28.99

$

In Stock, Qty 14

0

4

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539991043

BUSHING
(Superseded to 596933401)

$3.49

$

In Stock, Qty 13

0

6

Husqvarna 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$11.99

$

In Stock, only 2 left!

0

7

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

8

Husqvarna 539102698

BUSHING

$

$

Not available

9

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 9

0

10

Husqvarna 539103230

IDLER ARM

$

$

Not available

11

Husqvarna 539103256

SPRING

$13.99

$

In Stock, Qty 17

0

12

Husqvarna 539103257

IDLER PULLEY

$56.99

$

In Stock, Qty 20+

0

13

Husqvarna 539103258

IDLER PULLEY (TALL)

$51.99

$

In Stock, Qty 7

0

14

Husqvarna 539107276

RP PULLEY - 42/48"
(Superseded to 539112141)

$51.99

$

In Stock, Qty 10

0

15

Husqvarna 539103295

IDLER BUSHING

$17.99

$

In Stock, Qty 18

0

16

Husqvarna 539108773

SPINDLE ASSY - 52/61"
(Superseded to 966956101)

$159.99

$

In Stock, Qty 16

0

17

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 17

0

18

Husqvarna 539108758

SPACER

$

$

Not available

19

Husqvarna 539108760

52/61 SPINDLE - SPLINED SHAFT
(Superseded to 539112122)

$

$

Not available

20

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 17

0

22

Husqvarna 539977326

PLUG-VENTED

$11.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

24

Husqvarna 539103427

PIVOT BUSHING

$11.99

$

In Stock, Qty 20+

0

25

Husqvarna 539109243

BELT, DECK

$91.99

$

In Stock, Qty 14

0

26

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 12

0

27

Husqvarna 539104546

DEFLECTOR CHUTE

$159.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539108902

RT 48 SHIELD, ORG

$

$

Not available

29

Husqvarna 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, Qty 18

0

30

Husqvarna 539106576

DECK W/DECALS 48"

$

$

Not available

31

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990184

NUT 5/16C CENTERLOCK
(Superseded to 596580701)

$3.49

$

In Stock, Qty 14

0

33

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.49

$

In Stock, Qty 19

0

34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 539990546

NUT 3/8C CENTERBLOCK
(Superseded to 595305901)

$3.49

$

In Stock, Qty 20+

0

37

Husqvarna 539990550

WASHER 1/2 FLAT
(Superseded to 595316401)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD
(Superseded to 596583101)

$4.99

$

In Stock, Qty 11

0

39

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

40

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, only 2 left!

0

41

Husqvarna 539105448

MAIN BAFFLE - 48" DECK BLK

$

$

Not available

42

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

43

Husqvarna 539105444

CENTER BAFFLE 48"

$

$

Not available

44

Husqvarna 539108904

LT 48 SHIELD, ORG

$

$

Not available

45

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0
