WHF 4817 - Husqvarna 48" Walk-Behind Mower (2009-09) MOWER DECK / CUTTING DECK Parts Diagram

48" Walk-Behind Mower

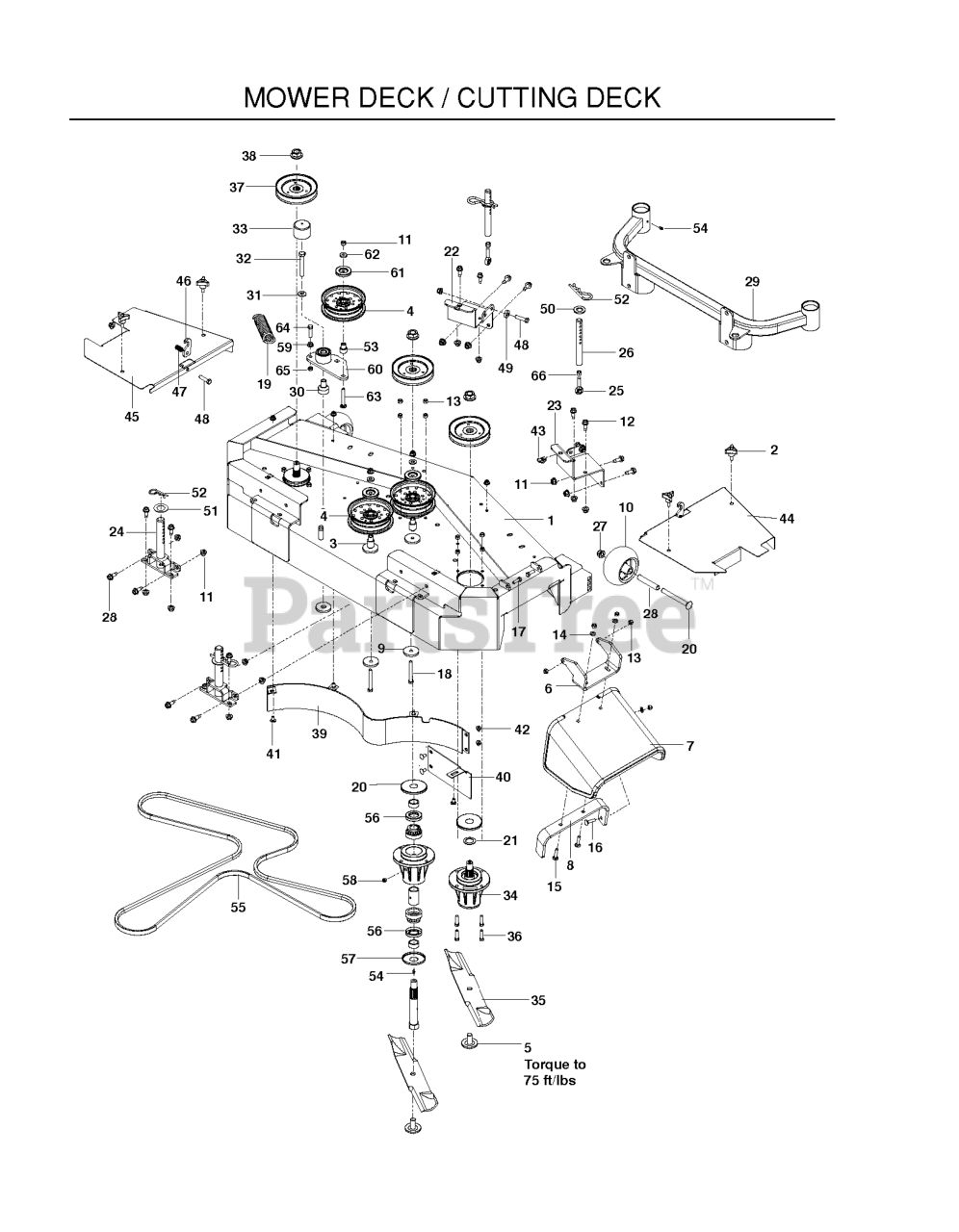

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

20

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

34

Husqvarna 539131385

HOUSING ASM, 72
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$8.99

$

In Stock, Qty 20+

0

12

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 3 left!

0

52

Husqvarna 525305801

HAIRPIN

$

$

Not available

28

Husqvarna 574196401

TUBE, ROLLER AXLE

$

$

Not available

37

Husqvarna 522023701

PULLEY - 5.25

$

$

Not available

50

Husqvarna 539109333

WASHER 3/4 FLAT SAE ZD

$4.99

$

In Stock, Qty 19

0

40

Husqvarna 539105444

CENTER BAFFLE 48"

$72.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

11

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

42

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

46

Husqvarna 525833002

HOOK OR

$

$

Not available

1

Husqvarna 574615201

CUTTER DECK 48" W/DECALS

$

$

Not available

61

Husqvarna 510254501

DUST SHIELD

$

$

Not available

32

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

18

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

6

Husqvarna 539132583

HINGE CHUTE - BLACK

$

$

Not available

29

Husqvarna 525853702

SUPPORT, CASTER 48 OR

$

$

Not available

59

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539113987

SPACER

$

$

Not available

57

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

41

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

63

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

In Stock, only 3 left!

0

66

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

22

Husqvarna 505339502

SUPPORT - FRONT, LH

$

$

Not available

65

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

43

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

64

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

48

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 539100340

BLADE OEM 16 1/4"

$15.99

$

In Stock, Qty 15

0

55

Husqvarna 573974801

BELT, 134.5

$125.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 11

0

14

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539130653

NUT FLANGE 3/4-16

$7.49

$

In Stock, only 1 left!

0

39

Husqvarna 510283202

BAFFLE WLDT, BLACK

$

$

Not available

7

Husqvarna 539130903

CHUTE, RUBBER DISCHARGE WB

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539119007

BLADE BOLT/WASHER

$8.99

$

In Stock, Qty 18

0

53

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

56

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 19

0

26

Husqvarna 525854101

ROD, HOC

$

$

Not available

23

Husqvarna 505339602

SUPPORT - FRONT, RH ORANGE

$

$

Not available

49

Husqvarna 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539113739

ROD END - 3/8-24 RH

$

$

Not available

24

Husqvarna 525854001

PIN, HOC

$

$

Not available

27

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 525817502

COVER, 48 LH GY

Note: LT

$

$

Not available

44

Husqvarna 525817602

COVER, 48 RH GY

Note: RT

$

$

Not available

54

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539130922

BRKT, REINF-CHUTE WB

$

$

Not available

13

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539132687

SPRING - COMPRESSION

$

$

Not available

36

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

3

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

9

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

33

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

2

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

19

Husqvarna 525852301

SPRING

$

$

Currently unavailable

62

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0
