WHF 4818 ETS (968999129) - Husqvarna 48" Walk-Behind Mower (2002-09) Power Unit Assembly Parts Diagram

48" Walk-Behind Mower

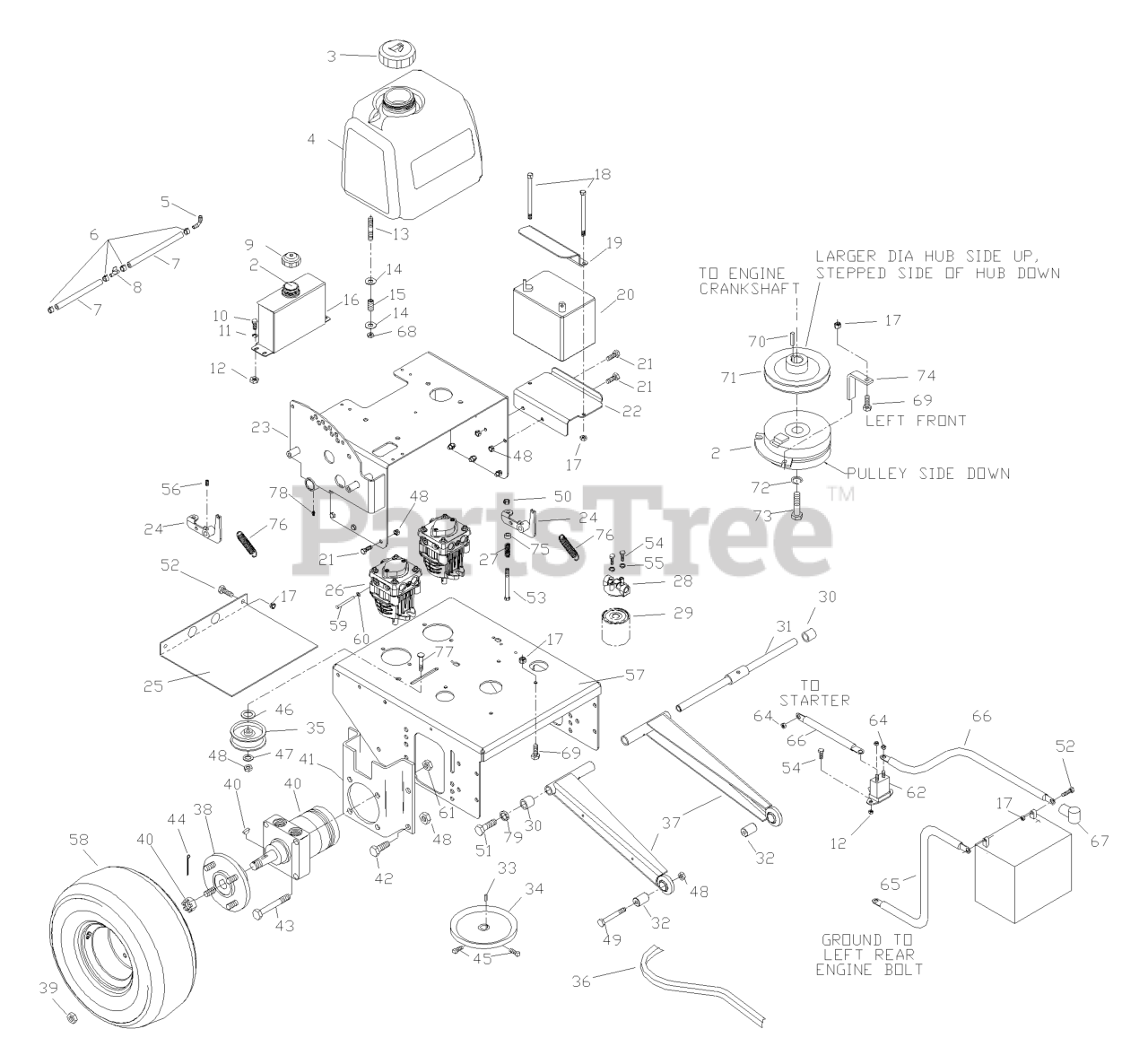

Power Unit Assembly Parts Diagram

  • Title

1

Husqvarna 539101220

CABLE, THROTTLE (17 KAW.)

$

$

Not available

2

Husqvarna 539105804

CLUTCH

$

$

Not available

3

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$37.99

$

In Stock, Qty 10

0

4

Husqvarna 539105630

FUEL TANK

$

$

Not available

5

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

6

Husqvarna 539912222

HOSE CLAMP

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

8

Husqvarna 539916325

FUEL VALVE

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101202

HYDRAULIC CAP

$22.99

$

In Stock, Qty 7

0

10

Husqvarna 539990580

HCS 1/4C X 3/4 HCS
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539990598

WASHER 1/4 FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$3.49

$

In Stock, only 4 left!

0

13

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 2 left!

0

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539102845

SPRING

$3.49

$

In Stock, only 4 left!

0

16

Husqvarna 539105985

OIL TANK BLK

$

$

Not available

17

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$

$

Not available

18

Husqvarna 539105826

BOLT - 5/16 X 7

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539105942

BATTERY STRAP

$

$

Not available

20

Husqvarna 539102463

BATTERY WET NOT SELLABLE
(Superseded to 579411601)

$

$

Not available

21

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539105943

BATTERY TRAY

$

$

Not available

23

Husqvarna 539105590

TANK SUPPORT

$

$

Not available

24

Husqvarna 539105913

PUMP ARM WELDMENT

$

$

Not available

25

Husqvarna 539104547

LOWER BELT SHIELD

$

$

Not available

26

Husqvarna 539104529

PUMP
(Superseded to 539132147)

$

$

Not available

27

Husqvarna 539101224

SPRING

$26.99

$

In Stock, only 1 left!

0

28

Husqvarna 539101165

FILTER HEAD

$

$

Not available

29

Husqvarna 539102606

HYDRAULIC OIL FILTER

$26.99

$

In Stock, only 1 left!

0

30

Husqvarna 539105806

SPACER

$

$

Not available

31

Husqvarna 539106446

STRUT SHAFT

$

$

Not available

32

Husqvarna 539105641

FRONT SPACER

$

$

Not available

33

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$5.99

$

In Stock, only 2 left!

0

34

Husqvarna 539102228

PULLEY

$

$

Not available

35

Husqvarna 539919078

IDLER PULLEY

$31.99

$

In Stock, Qty 5

0

36

Husqvarna 539101228

TRANSMISSION BELT

$

$

Not available

37

Husqvarna 539105577

STRUT WELDMENT

$

$

Not available

38

Husqvarna 539101109

HUB.WHEEL.ZTR

$

$

Not available

39

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

40

Husqvarna 539103527

WHEEL MOTOR

$

$

Not available

40

Husqvarna 539103664

SEAL KIT - GEN I

$

$

Not available

41

Husqvarna 539106491

MOTOR MOUNT

$

$

Not available

42

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$

$

Not available

43

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 2 left!

0

44

Husqvarna 539990297

COTTER PIN

$

$

Not available

45

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.49

$

Usually ships in 3-10 days

0

46

Husqvarna 539990550

WASHER 1/2 FLAT

$

$

Not available

47

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0

48

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

49

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$

$

Not available

50

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

51

Husqvarna 539990646

HHCS 1/2-13 X 1
(Superseded to 596583601)

$3.49

$

In Stock, only 1 left!

0

52

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 539106492

HEX SCREW 3/8-20 X 2.75

$

$

Not available

54

Husqvarna 539990072

HCS 1/4C X 5/8
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

55

Husqvarna 539990052

LOCKWASHER 1/4"
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 539105079

5/16C X 5/8 "V" POINT

$

$

Not available

57

Husqvarna 539106572

REAR DECK

$

$

Not available

58

Husqvarna 539105805

TIRE/WHEEL ASSY

$

$

Not available

58

Husqvarna 539105535

TIRE.TURF.SAVER.18X7.5-8

$

$

Not available

58

Husqvarna 539912234

VALVE STEM TR-412

$4.99

$

In Stock, Qty 16

0

58

Husqvarna 539104628

WHEEL
(Superseded to 539105805)

$

$

Not available

59

Husqvarna 539102223

CLEVIS PIN

$

$

Not available

60

Husqvarna 539102234

NUT PUSH
(Superseded to 596436201)

$3.49

$

Usually ships in 3-10 days

0

61

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 539101714

SOLENOID

$28.99

$

In Stock, Qty 20+

0

64

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

65

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

66

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$11.99

$

In Stock, Qty 10

0

67

Husqvarna 539102759

INSULATOR

$5.99

$

In Stock, Qty 8

0

68

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

69

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$

$

Not available

70

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

71

Husqvarna 539105610

PULLEY

$

$

Not available

72

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, only 1 left!

0

73

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 7

0

74

Husqvarna 539103251

CLUTCH TIE DOWN

$

$

Not available

75

Husqvarna 539923515

SPACER

$5.99

$

Usually ships in 3-10 days

0

76

Husqvarna 539916159

SPRING-TRANS

$6.99

$

In Stock, only 3 left!

0

77

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.49

$

In Stock, Qty 20+

0

78

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

79

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$4.99

$

Usually ships in 3-10 days

0
