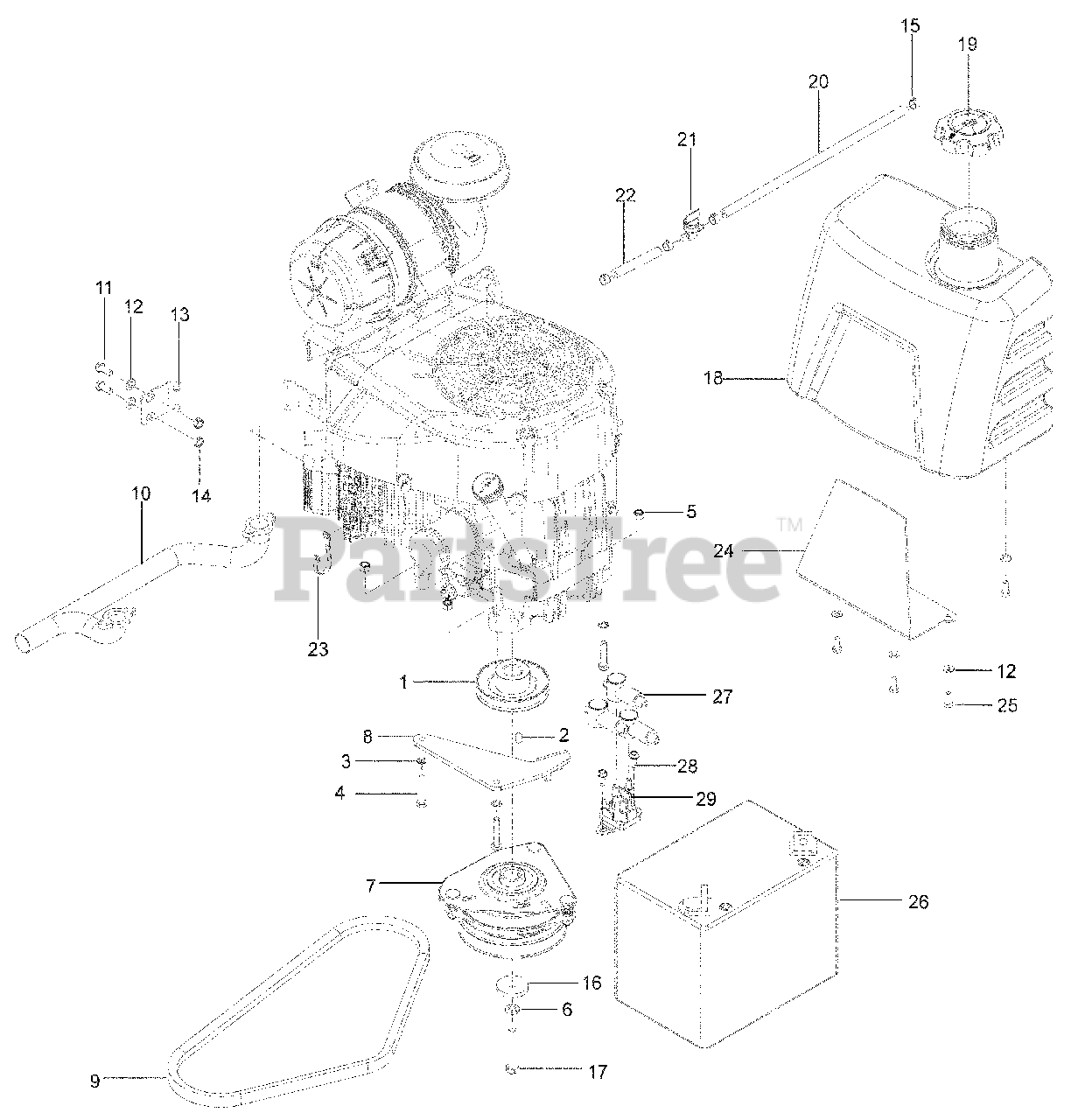

WHF 5223 (966947006) - Husqvarna 52" Walk-Behind Mower (2009-09) Engine Parts Diagram

52" Walk-Behind Mower

Engine Parts Diagram

  • Title

1

Husqvarna 539132525

PULLEY

$

$

Not available

2

Husqvarna 539105718

KEY ¼ SQ x ½

$

$

Not available

3

Husqvarna 539109556

LOCK WASHER 5/16 STAR

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

5

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

7

Husqvarna 532400008

CLUTCH 90 FT/LB
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539132527

CLUTCH STOP

$

$

Not available

9

Husqvarna 539106725

BELT

$30.99

$

In Stock, only 1 left!

0

10

Husqvarna 539110348

MANIFOLD, EXHAUST

$

$

Not available

11

Husqvarna 539990206

HCS 5/16-18 x ¾
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539110372

BRACKET, MUFFLER

$

$

Not available

14

Husqvarna 539990184

NUT 5/16-18 HEX CNTRLK

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539912222

CLAMP

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

17

Husqvarna 539991120

HCS 7/16-20 x 2½

$6.49

$

In Stock, Qty 11

0

18

Husqvarna 539132549

TANK, FUEL
(Superseded to 575320601)

$

$

Not available

19

Husqvarna 539130393

CAP, FUEL TANK

$

$

Not available

20

Husqvarna 539108212

FUEL LINE, 12"

$1.99

$

In Stock, Qty 5

0

21

Husqvarna 539916325

VALVE, FUEL

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 505296701

FUEL LINE, 3½"

$7.49

$

In Stock, only 2 left!

0

23

Husqvarna 539107098

CLAMP

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539132633

PLATE

$

$

Not available

25

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

27

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

29

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0
