WHF 5223 (966947006) - Husqvarna 52" Walk-Behind Mower (2009-09) Wheels And Tires Parts Diagram

52" Walk-Behind Mower

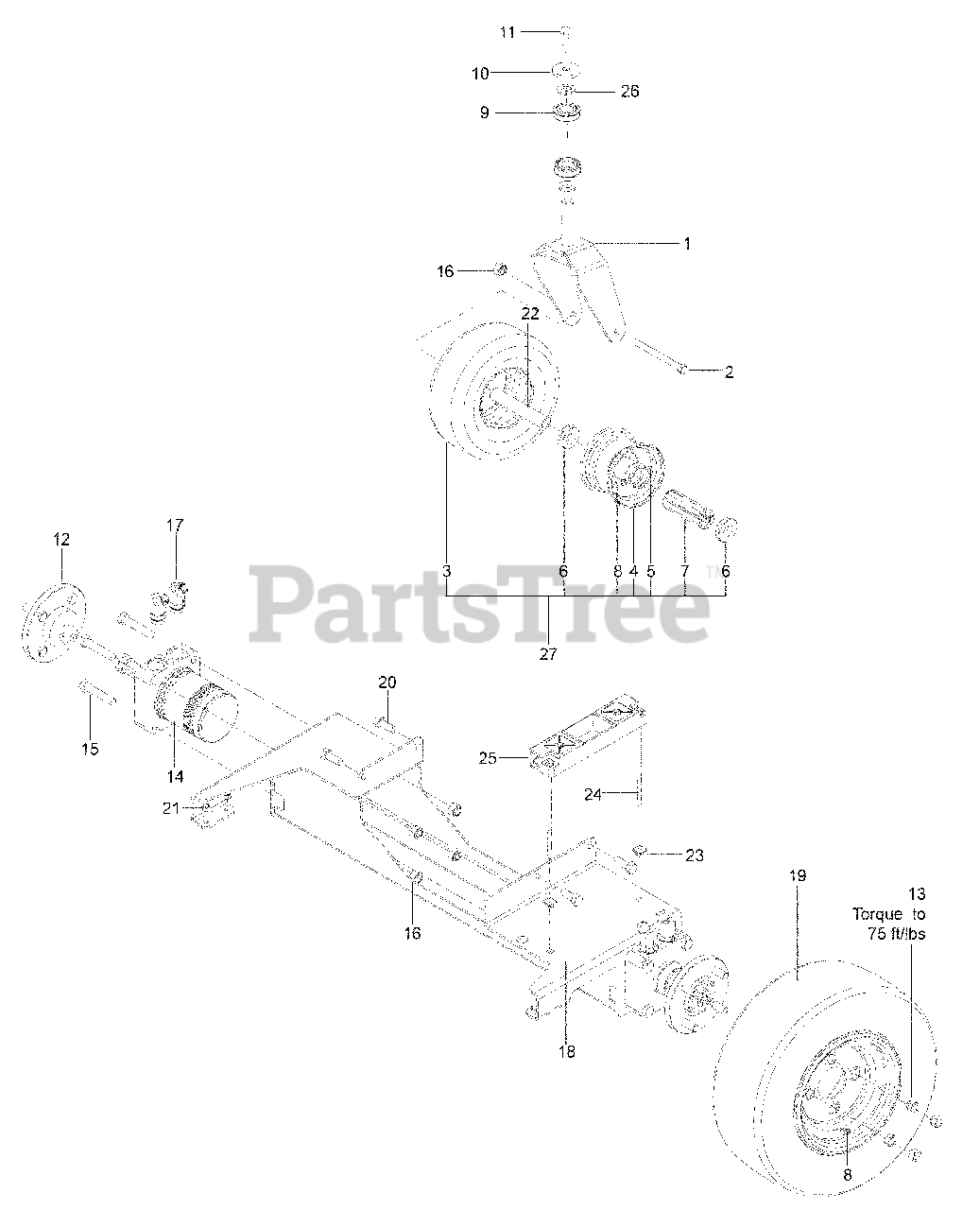

Wheels And Tires Parts Diagram

  • Title

1

Husqvarna 539113444

CASTER FORK

$

$

Not available

2

Husqvarna 539101907

HCS ½-13 x 5½

$9.99

$

In Stock, Qty 12

0

3

Husqvarna 539106995

TIRE, CASTER
(Superseded to 539114697)

$

$

Not available

4

Husqvarna 539106994

RIM, CASTER

$42.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539102484

BEARING, FLANGE

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539105307

ROLLER BEARING

$9.49

$

In Stock, Qty 17

0

8

Husqvarna 539912234

AIR VALVE

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 525585101

BEARING
(Superseded to 738218712)

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539112670

WASHER, HEAVY

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990646

HCS ½-13 x 1

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539132689

HUB, WHEEL

$

$

Not available

13

Husqvarna 539101173

NUT, LUG ½

$

$

Not available

14

Husqvarna 539103527

MOTOR, LT

$

$

Not available

Husqvarna 521911601

MOTOR, REVERSED, RT

$

$

Not available

15

Husqvarna 539108346

HCS ½-13 x 2½

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539132561

ELBOW 45° STRAIGHT THD

$34.99

$

Usually ships in 3-10 days

0

18

Husqvarna 529292002

AXLE

$

$

Not available

19

Husqvarna 539110470

WHEEL ASSEM, REAR
(Superseded to 581197301)

$194.99

$

In Stock, only 2 left!

0

20

Husqvarna 539108369

HCS ½-13 x 1¼

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539105543

SPACER

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539107629

PUSH NUT, NYLON

$4.99

$

In Stock, Qty 7

0

24

Husqvarna 539107632

BOLT, ¼ x 7½

$

$

Not available

25

Husqvarna 539107628

HOLD DOWN, BATTERY

$10.99

$

In Stock, only 4 left!

0

26

Husqvarna 539916561

WASHER

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539106993

WHEEL ASSEM, CASTER

$121.99

$

In Stock, Qty 15

0
