WHF 5223 - Husqvarna 52" Walk-Behind Mower (2009-09) HYDRAULIC PUMP - MOTOR Parts Diagram

52" Walk-Behind Mower

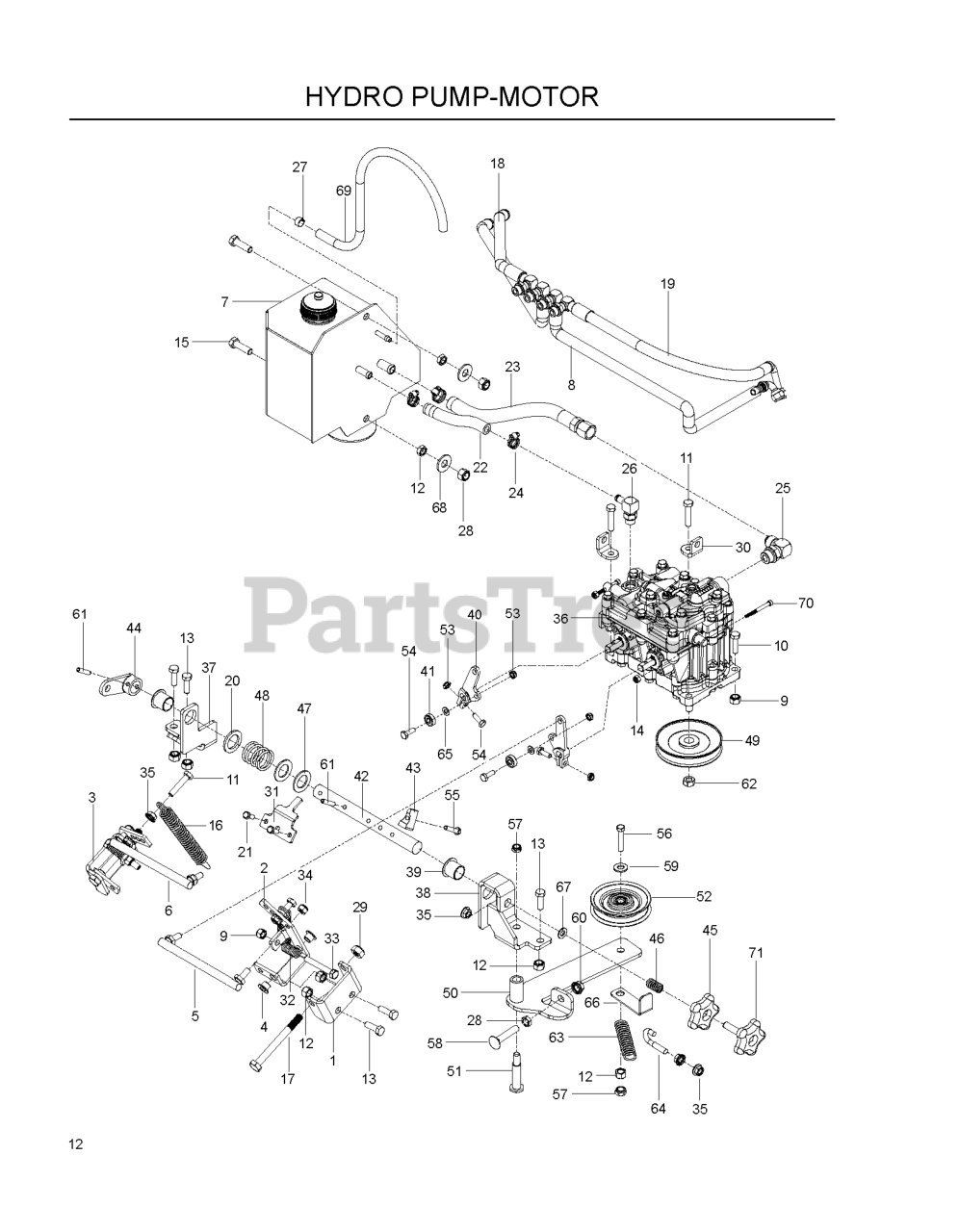

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title

26

Husqvarna 505280401

FITTING, 90 DEG 9/16-18 X 3/8

$

$

Not available

Husqvarna 539102606

HYDRAULIC OIL FILTER

Note: NOT SHOWN

$44.99

$

In Stock, Qty 7

0

21

Husqvarna 539107705

HCS M6-1.0 X 16MM GR 8.8 ZN

$

$

Not available

49

Husqvarna 539131727

PULLEY, PUMP

$

$

Not available

46

Husqvarna 539132687

SPRING - COMPRESSION

$

$

Not available

69

Husqvarna 539922091

FUEL LINE

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 521976101

SCR, #10-24X2 SOCKET HEAD CAP

$

$

Not available

4

Husqvarna 539132533

BEARING - FLANGE 10MM

$

$

Not available

16

Husqvarna 539916159

SPRING-TRANS

$7.49

$

In Stock, only 4 left!

0

20

Husqvarna 510362801

WASHER, FIBER

$

$

Not available

50

Husqvarna 539132532

IDLER ARM

$

$

Not available

33

Husqvarna 539976937

HCS 5/16-18X2

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539132523

BEARING - FOLLOWER

$6.99

$

In Stock, only 1 left!

0

1

Husqvarna 539132535

BRACKET - U

$

$

Not available

18

Husqvarna 523090701

HOSE, LH

$

$

Not available

52

Husqvarna 539113683

V-IDLER

$66.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539132516

ARM - HYDRO

$

$

Not available

47

Husqvarna 539132521

WASHER - 20MM

$

$

Not available

12

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 523090601

HOSE, RIGHT REAR

$

$

Not available

65

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

38

Husqvarna 539132513

SUPT - CAM, RH PAINTED

Note: RT

$

$

Not available

53

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

58

Husqvarna 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, Qty 5

0

51

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 532004898)

$

$

Not available

64

Husqvarna 539112896

J-BOLT

$

$

Not available

19

Husqvarna 523090501

HOSE, RIGHT FRONT

$

$

Not available

25

Husqvarna 539101242

ELBOW, 90 DEGREE

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 539132551

LINK - CONTROL, LH WB

Note: LT

$

$

Not available

42

Husqvarna 539132519

SHAFT - CAM

$

$

Not available

13

Husqvarna 539108507

HCS 3/8-16 X 7/8 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

22

Husqvarna 505280201

HOSE - RETURN

$

$

Not available

10

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 539132539

BELLCRANK RH PAINTED

Note: LT

$

$

Not available

35

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, Qty 11

0

27

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

60

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539131528

NUT M10-1.5 L/H HEX

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539132518

CAM - TRACKING

$

$

Not available

59

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

61

Husqvarna 505224001

ROLL PIN - 6 MM X 30 MM

$

$

Not available

2

Husqvarna 539132537

BELLCRANK LH PAINTED

$

$

Not available

34

Husqvarna 539103153

NUT M8-1.25 TOP NYL GR10 ZD

$5.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539132515

PLATE - STOP, BLK

$

$

Not available

30

Husqvarna 510111002

BRACKET, SPRING, BLK

$

$

Not available

37

Husqvarna 539132511

SUPT - CAM LH

Note: LT

$

$

Not available

5

Husqvarna 539132550

LINK - CONTROL, RH WB

Note: RT

$51.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539132520

BEARING - FLANGE, 20MM

$

$

Not available

45

Husqvarna 522718401

KNOB

$

$

Not available

68

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539101224

SPRING

$26.99

$

In Stock, only 1 left!

0

57

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 7

0

56

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 9

0

48

Husqvarna 539132524

SPRING - COMPRESSION

$

$

Not available

17

Husqvarna 510129901

HCS M10-1.58 X 100MM GR8.8 ZD

$

$

Not available

36

Husqvarna 521976001

PUMP, DUP10E

$

$

Not available

44

Husqvarna 539132517

ARM - SPEED CONTROL

$

$

Not available

24

Husqvarna 539976966

HOSE CLAMP T-1865

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 510130001

NUT, M10-1.5 NYLON RING ZD

$

$

Not available

63

Husqvarna 539010195

SPRING AXLE AERATOR

$47.99

$

In Stock, Qty 8

0

7

Husqvarna 573944101

RESERVOIR

$

$

Not available

11

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539106307

BOLT - M6-1.0 X 30MM GR 8

$

$

Not available

67

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
