WHF 6123 (966947007) - Husqvarna 61" Walk-Behind Mower (2009-09) 61" Mower Deck Parts Diagram

61" Walk-Behind Mower

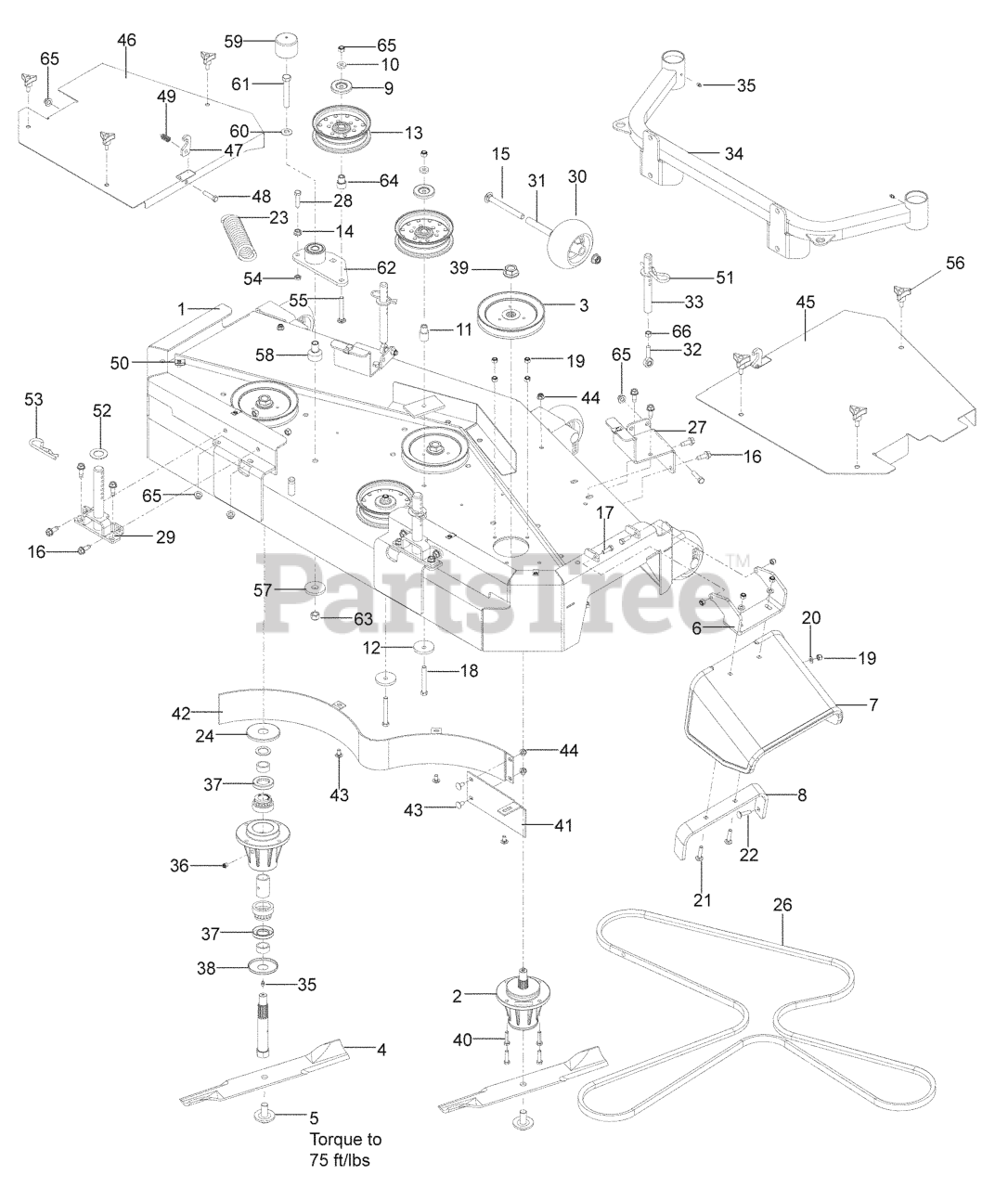

61" Mower Deck Parts Diagram

  • Title

1

Husqvarna 574615401

CUTTER DECK w/DECALS

$

$

Currently unavailable

2

Husqvarna 539131385

HOUSING ASM, 72
(Superseded to 966956201)

$

$

Not available

3

Husqvarna 522023901

PULLEY - 7.50

$96.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101733

BLADE OEM 21" (61" DECK)

$21.99

$

In Stock, Qty 19

0

5

Husqvarna 539119007

BLADE BOLT/WASHER

$13.99

$

In Stock, Qty 20+

0

6

Husqvarna 539132583

HINGE CHUTE - BLACK

$

$

Not available

7

Husqvarna 539130903

CHUTE, RUBBER DISCHARGE WB

$

$

Not available

8

Husqvarna 539130922

BRKT, REINF-CHUTE WB

$

$

Not available

9

Husqvarna 510254501

DUST SHIELD
(Superseded to 510254502)

$4.99

$

In Stock, Qty 10

0

10

Husqvarna 522023401

WASHER, 3/8 THICK

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 539103295

IDLER BUSHING

$17.99

$

In Stock, Qty 18

0

12

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

13

Husqvarna 539103257

IDLER PULLEY

$56.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990613

NUT 3/8C WHIZ

$

$

Not available

15

Husqvarna 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

16

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.99

$

In Stock, only 1 left!

0

17

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 18

0

19

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD
(Superseded to 596030801)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4
(Superseded to 596671401)

$4.99

$

In Stock, Qty 16

0

23

Husqvarna 539130690

SPRING

$11.99

$

In Stock, only 2 left!

0

24

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, Qty 17

0

25

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

26

Husqvarna 522811401

BELT, B, 165

$113.99

$

Usually ships in 3-10 days

0

27

Husqvarna 505339602

SUPPORT - FRONT, RH ORANGE

$

$

Not available

Husqvarna 505339502

SUPPORT - FRONT, LH

$

$

Not available

28

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.49

$

In Stock, only 4 left!

0

29

Husqvarna 525854001

PIN, HOC

$

$

Not available

30

Husqvarna 574169601

ROLLER, GAUGE .635 BORN

$20.99

$

In Stock, Qty 20+

0

31

Husqvarna 574196401

TUBE, ROLLER AXLE
(Superseded to 574196402)

$6.99

$

In Stock, Qty 12

0

32

Husqvarna 539113739

ROD END - 3/8-24 RH

$68.99

$

Usually ships in 3-10 days

0

33

Husqvarna 525854101

ROD, HOC

$

$

Not available

34

Husqvarna 525853902

SUPPORT, CASTER 61 OR

$

$

Not available

35

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 539977326

PLUG-VENTED

$11.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 17

0

38

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

39

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, Qty 8

0

40

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 2 left!

0

41

Husqvarna 539105461

CENTER BAFFLE - 61

$

$

Not available

42

Husqvarna 523024902

BAFFLE WLDMT 61 BLK

$

$

Not available

43

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 525818602

COVER.61".RH.GREY

$

$

Not available

46

Husqvarna 525818502

COVER.61".LH.GREY

$

$

Not available

47

Husqvarna 525833002

HOOK OR

$

$

Not available

48

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 1 left!

0

49

Husqvarna 539132687

SPRING - COMPRESSION

$

$

Not available

50

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 539109333

WASHER 3/4 FLAT SAE ZD

$4.99

$

In Stock, Qty 17

0

52

Husqvarna 539113987

SPACER

$

$

Not available

53

Husqvarna 525305801

HAIRPIN

$

$

Not available

54

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.49

$

In Stock, Qty 10

0

55

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$

$

Not available

56

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 539102243

WASHER, SUPPORT
(Superseded to 596437501)

$11.99

$

In Stock, only 2 left!

0

58

Husqvarna 510206301

PIVOT, BEARING

$5.99

$

In Stock, Qty 11

0

59

Husqvarna 539114823

CAP, VINYL

$

$

Not available

60

Husqvarna 539115528

CONTACT BELLSPR 1/2

$

$

Not available

61

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, Qty 15

0

62

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

63

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

64

Husqvarna 539130242

BUSHING, IDLER

$3.49

$

In Stock, only 2 left!

0

65

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

66

Husqvarna 539990155

NUT 3/8F

$3.49

$

In Stock, Qty 15

0
