WHT 3615 (968999237) - Husqvarna 36" Walk-Behind Mower (2004-09) Caster Assembly Parts Diagram

36" Walk-Behind Mower

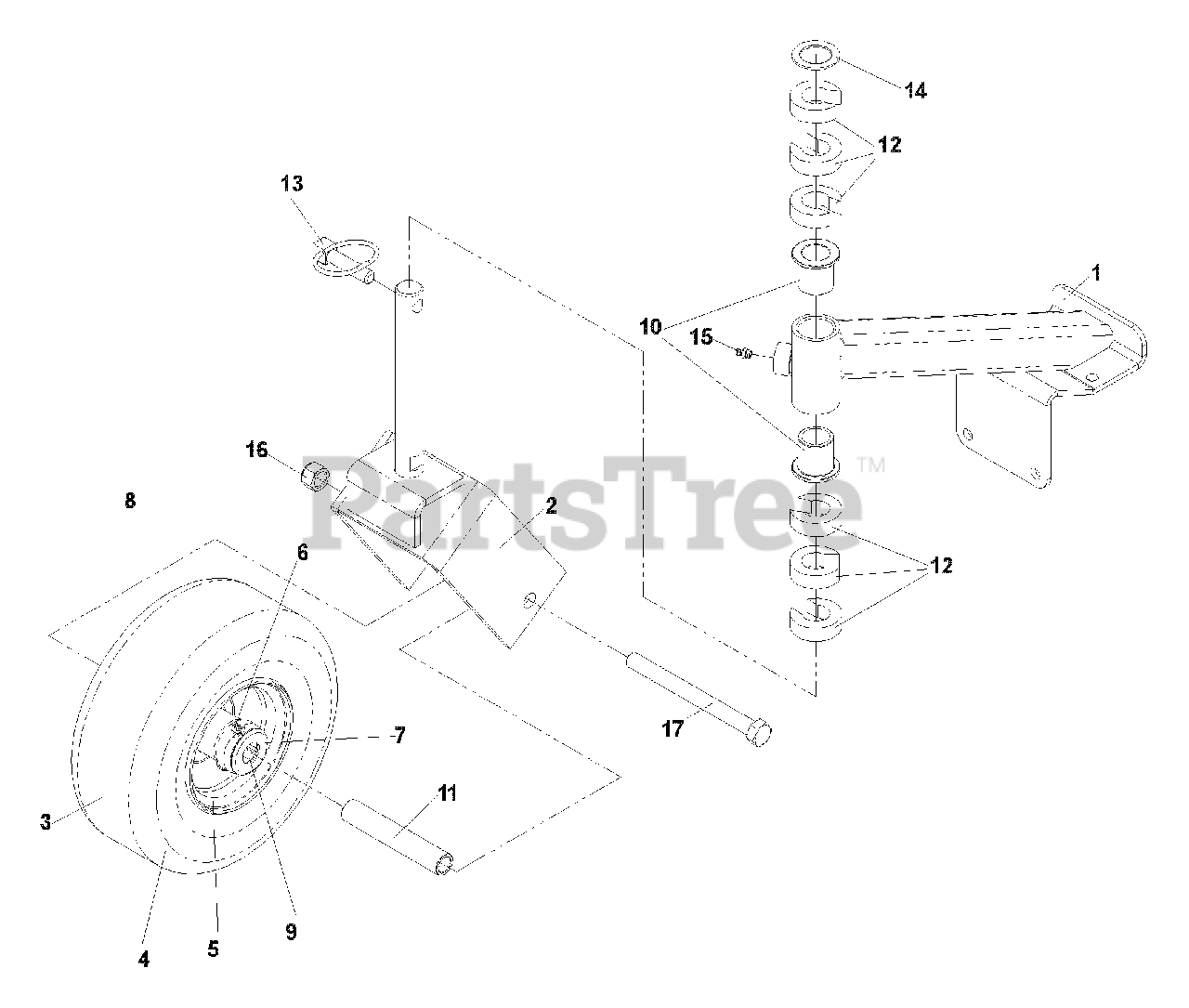

Caster Assembly Parts Diagram

  • Title

1

Husqvarna 539110582

CASTER ARM W/BUSHINGS

$

$

Not available

2

Husqvarna 539109063

CASTER FORK

$284.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539104556

WHEEL ASSEMBLY

$148.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101905

TIRE

$

$

Not available

5

Husqvarna 539104618

RIM

$

$

Not available

6

Husqvarna 539910003

ZERK

$

$

Not available

7

Husqvarna 539923557

ENDCAP
(Superseded to 539977356)

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539977356

NOTCHED ENDCAP

$7.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539977353

ROLLER BEARING

$13.99

$

In Stock, only 1 left!

0

Husqvarna 539912234

AIR VALVE (NOT SHOWN)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 16

0

11

Husqvarna 539101872

SPACER

$31.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101873

"C" SPACER

$4.99

$

In Stock, Qty 5

0

13

Husqvarna 539101874

LYNCH PIN, 7/16

$6.49

$

In Stock, Qty 5

0

14

Husqvarna 539916561

MACHINERY BUSHING, 1" X 14 GA

$

$

Not available

15

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

16

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539101907

HCS, 1/2-13 X 5 1/2, GR5

$13.99

$

In Stock, Qty 8

0
