WHT 4817 (968999238) - Husqvarna 48" Walk-Behind Mower (2004-09) IZT (Integrated Zeroturn Transaxle) Parts Diagram

48" Walk-Behind Mower

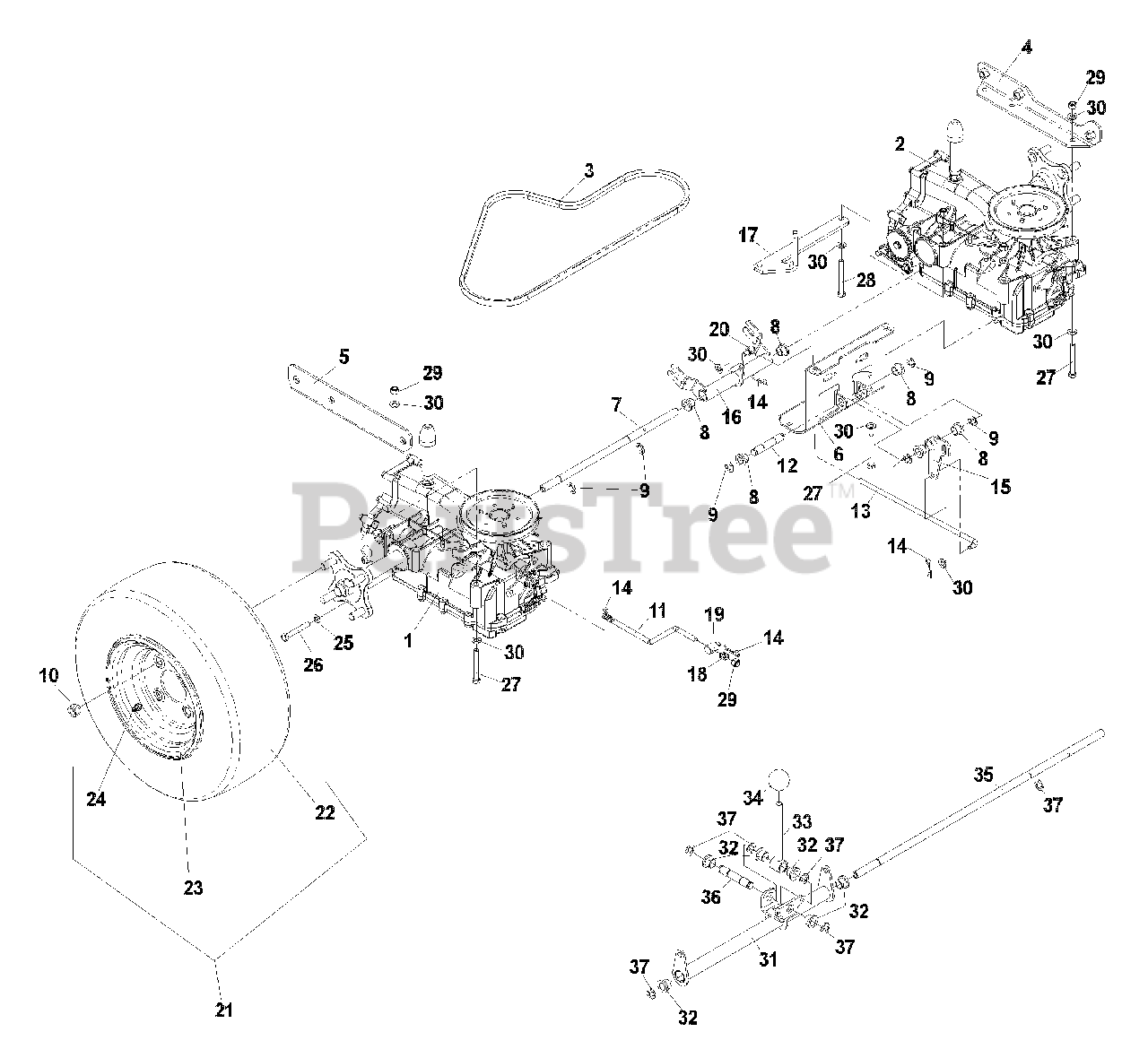

IZT (Integrated Zeroturn Transaxle) Parts Diagram

  • Title

1

Husqvarna 539111018

IZT, LEFT (AFTER SERIAL NO. 042627905)

$

$

Not available

1

Husqvarna 539109000

IZT, LEFT (BEFORE SERIAL NO. 042627905)
(Superseded to 539111018)

$

$

Not available

2

Husqvarna 539111019

IZT, RIGHT (AFTER SERIAL NO. 042627905)

$

$

Not available

2

Husqvarna 539109001

IZT, RIGHT (BEFORE SERIAL NO. 042627905)
(Superseded to 539111019)

$

$

Not available

3

Husqvarna 539111445

IZT BELT

$

$

Not available

4

Husqvarna 539111108

IZT SUPPORT, RIGHT

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539109006

IZT SUPPORT, LEFT

$18.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539109008

IZT SUPPORT, REAR

$54.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109009

IZT CONNECTOR

$54.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539100032

BUSHING, NYLON FLANGED

$

$

Not available

9

Husqvarna 539101949

E-RING, 1/2"

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101173

LUG NUT, 1/2"

$

$

Not available

11

Husqvarna 539109011

IZT BYPASS LINKAGE

$14.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109012

BRAKE ROD

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539109013

BRAKE LINKAGE

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976988

HAIRPIN COTTER

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539109014

BRAKE BELLCRANK, REAR

$15.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539109010

BRAKE BELLCRANK, FRONT

$28.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539109095

CLUTCH TIE DOWN

$15.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102845

SPRING, TANK MOUNT

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 539109032

SWIVEL

$18.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976434

ADJ. SWIVEL, SHORT

$21.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539109769

TIRE AND WHEEL ASSEMBLY

$

$

Not available

22

Husqvarna 539110503

TIRE

$72.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539110504

RIM

$54.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 539990187

LOCKWASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

26

Husqvarna 539108002

HCS, 5/16-18 X 2 1/4, GR8

$3.99

$

In Stock, Qty 6

0

27

Husqvarna 539991046

HCS, 5/16-18 X 2 1/2

$4.99

$

In Stock, Qty 8

0

28

Husqvarna 539101721

HCS, 5/16-18 X 2 3/4

$4.99

$

In Stock, Qty 14

0

29

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990188

WASHER, 5/16, SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539109975

ACTUATOR ARM

$35.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539100032

BUSHING, NYLON, FLANGED

$

$

Not available

33

Husqvarna 539109977

LEVER

$14.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539109978

KNOB

$11.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539109979

SHAFT

$

$

Not available

36

Husqvarna 539109012

BRAKE ROD

$9.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539101949

E-RING, 1/2"

$3.99

$

Usually ships in 3-10 days

0
