WLT 200H48IBV2 (84904) - Snapper 48" Lawn Tractor, 20hp 48" DECK IDLER ASSEMBLIES Parts Diagram

48" Lawn Tractor, 20hp

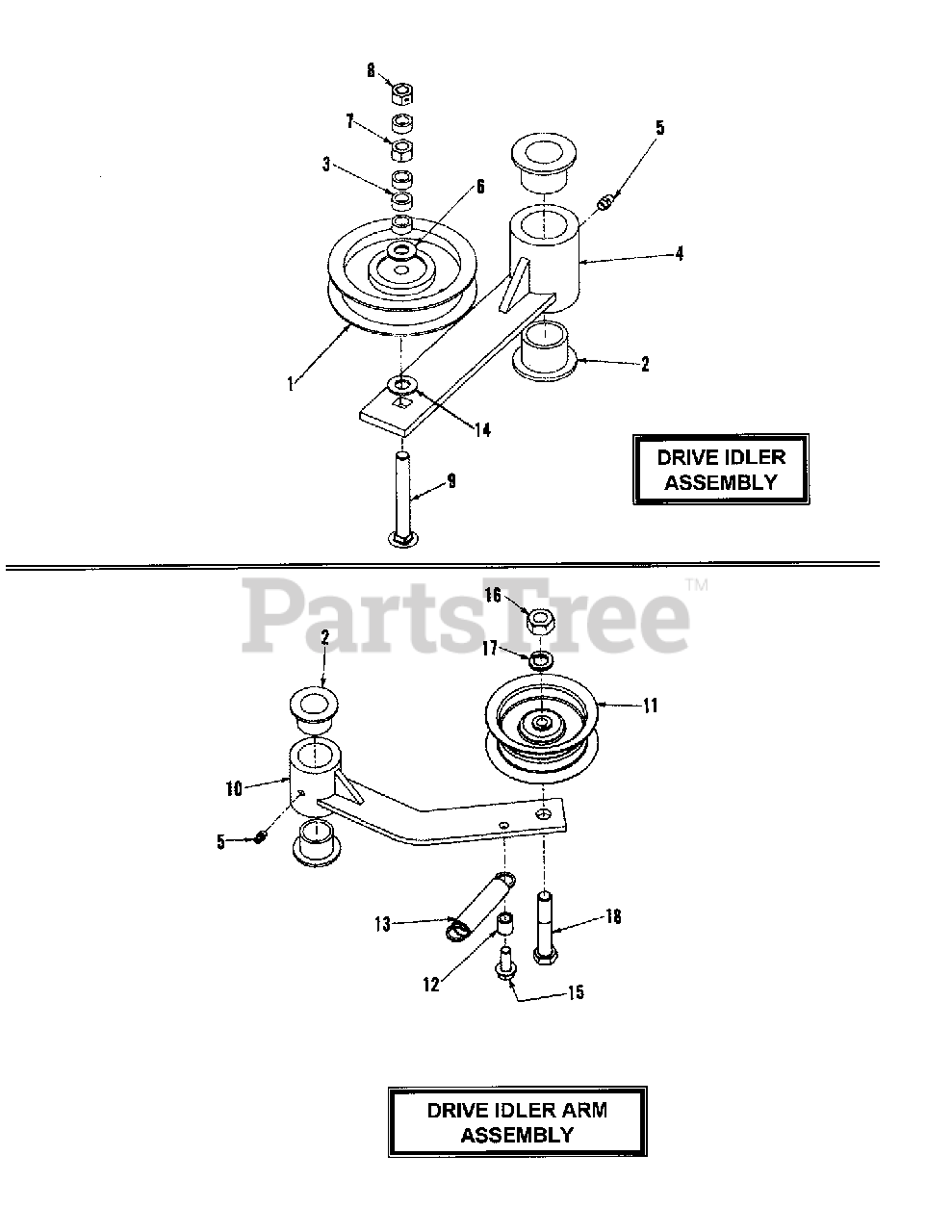

48" DECK IDLER ASSEMBLIES Parts Diagram

  • Title

1

Snapper 7018574

IDLER, 4.12 Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, only 3 left!

0

2

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, only 4 left!

0

3

Snapper 7024180

SPACER, Tie Rod
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

4

Snapper 7046949

WELDMENT, Idler Arm
(Superseded to 7046949YP)

$106.99

$

Usually ships in 2-12 days

0

5

Snapper 7076998

FITTING, Lube, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091302

NUT, 3/8-16 Hex , GR5 or B
(Superseded to 7091302SM)

$4.49

$

In Stock, Qty 5

0

8

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

9

Snapper 7091155

BOLT, 3/8-16 x 3" Square Neck Carriage, GR5
(Superseded to 7091155YP)

$

$

Not available

10

Snapper 7046717

WELDMENT, Idler Arm- 48" Deck

$

$

Not available

11

Snapper 7026310

IDLER, 3-1/4 O.D. x 1-3/4" Flat
(Superseded to 7026310YP)

$59.99

$

In Stock, only 2 left!

0

12

Snapper 7023478

SPACER

$

$

Not available

13

Snapper 7029134

SPRING, Extension

$

$

Not available

14

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

16

Snapper 7091316

NUT, 1/2-13 Hex, GR B
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

17

Snapper 7091322

WASHER, 1/2" Split Lock
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7091821

SCREW, 1/2-13 x 3" Hex Head Cap
(Superseded to 7091821YP)

$3.99

$

Usually ships in 2-12 days

0
