WMP20 X A1 (WMP20X) - Honda Water Pump, Made in USA (SN: WMP20X-1000001 - WMP20X-9999999) RECOIL STARTER Parts Diagram

Water Pump, Made in USA

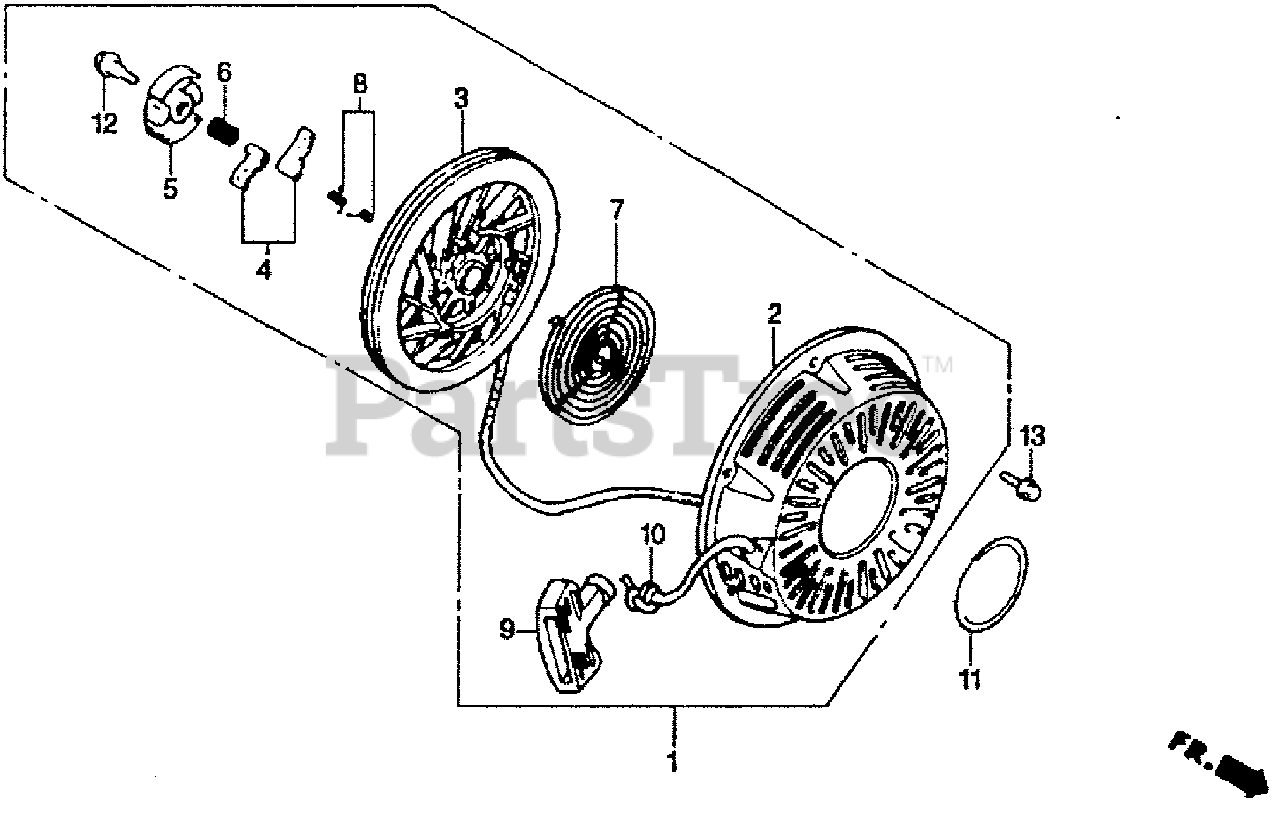

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZH8-013YA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use up to Engine SN 8805657.

$126.99

$

In Stock, only 1 left!

0

1

Honda 28400-ZH8-013ZA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 8805657.

$

$

Not available

1

Honda 28400-ZH8-023YA

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R280* (POWER RED)
(Superseded to 28400-Z0T-003ZB)

Note: Use from Engine SN 8805658.

$101.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZH8-003ZA

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZH8-003YA)

$119.99

$

In Stock, only 1 left!

0

3

Honda 28420-ZH8-013

SEE PART DETAILS - PRI; REEL, RECOIL STARTER

$44.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-013

SEE PART DETAILS - PRI; RATCHET, STARTER

$8.99

$

In Stock, only 1 left!

0

5

Honda 28433-ZH8-003

GUIDE, RATCHET

$12.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION

$6.49

$

In Stock, only 2 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$18.99

$

In Stock, Qty 11

0

8

Honda 28443-ZH8-003

SPRING, RETURN

$5.99

$

In Stock, only 2 left!

0

9

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZH8-013)

$8.49

$

In Stock, only 1 left!

0

10

Honda 28462-ZH8-003

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#5X55")

$12.99

$

In Stock, Qty 14

0

11

Honda 87521-ZH8-010

SEE PART DETAILS - SUP; EMBLEM (INTERNAL)

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90003-ZH8-003

SCREW, SETTING

$6.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 4 left!

0
