WMP20 X1 A1T (WAAA) - Honda Water Pump, Made in USA (SN: WAAA-1030001 - WAAA-1999999) CASING@IMPELLER Parts Diagram

Water Pump, Made in USA

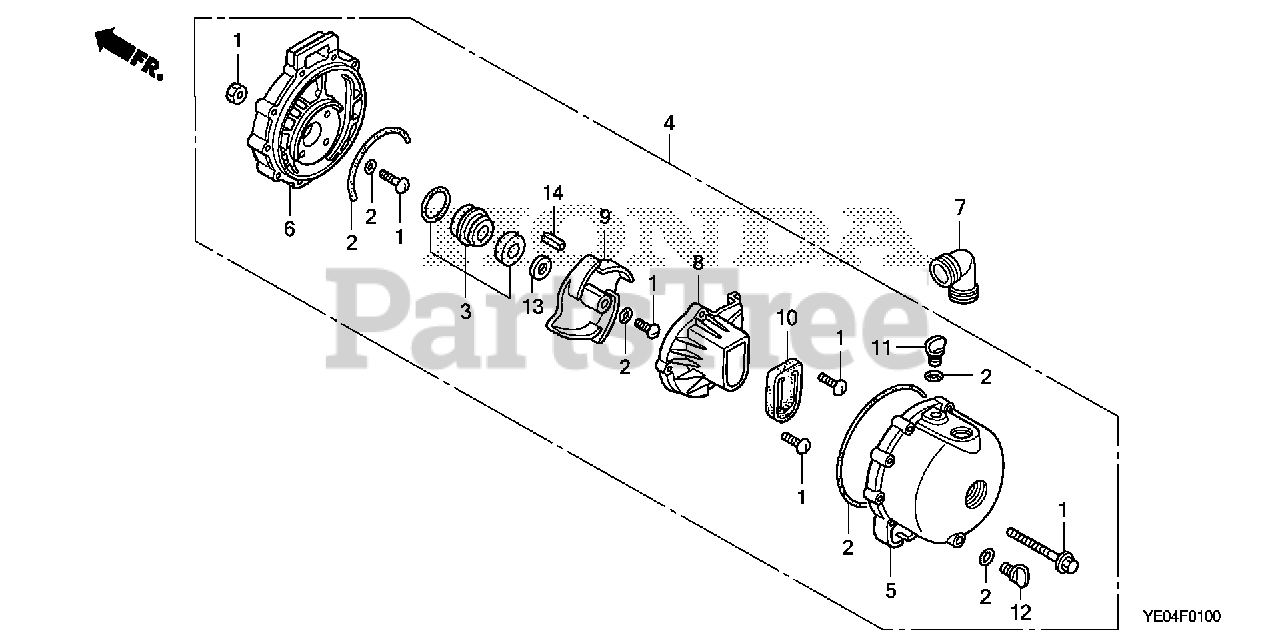

CASING@IMPELLER Parts Diagram

  • Title

1

Honda 78010-YE0-000

HARDWARE SET

$109.99

$

Usually ships in 3-6 days

0

2

Honda 78011-YE0-000

O-RING SET

$31.99

$

Usually ships in 3-6 days

0

3

Honda 78012-YE0-003

SEAL SET, MECHANICAL

$86.99

$

Usually ships in 3-6 days

0

4

Honda 78100-YE0-003

PUMP ASSY. (TO ORDER COMPONENTS, SEE SECTION F-2.)

$368.99

$

Usually ships in 3-6 days

0

5

Honda 78100-YE0-003

PUMP ASSY. (TO ORDER COMPONENTS, SEE SECTION F-2.)

$368.99

$

Usually ships in 3-6 days

0

6

Honda 78100-YE0-003

PUMP ASSY. (TO ORDER COMPONENTS, SEE SECTION F-2.)

$368.99

$

Usually ships in 3-6 days

0

7

Honda 78104-YE0-003

OUTLET

$29.99

$

Usually ships in 3-6 days

0

8

Honda 78100-YE0-003

PUMP ASSY. (TO ORDER COMPONENTS, SEE SECTION F-2.)

$368.99

$

Usually ships in 3-6 days

0

9

Honda 78106-YE0-003

IMPELLER

$65.99

$

Usually ships in 3-6 days

0

10

Honda 78111-YE0-003

VALVE, CHECK

$72.99

$

Usually ships in 3-6 days

0

11

Honda 78117-YE0-003

CAP, FILLER

$11.99

$

Usually ships in 3-6 days

0

12

Honda 78119-YE0-003

PLUG, DRAIN

$11.99

$

In Stock, only 1 left!

0

13

Honda 78126-YE0-003

SHIM A, IMPELLER (0.006")

$2.99

$

Usually ships in 3-6 days

0

13

Honda 78127-YE0-003

SHIM B, IMPELLER (0.015")

$2.99

$

Usually ships in 3-6 days

0

13

Honda 78128-YE0-003

SHIM C, IMPELLER (0.030")

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90751-YE0-003

KEY

$5.99

$

Usually ships in 3-6 days

0
