WO1-180V (29471) - Snapper Engine, Made by Robin Subaru, 6.5hp Cooling, Starting Group Parts Diagram

Engine, Made by Robin Subaru, 6.5hp

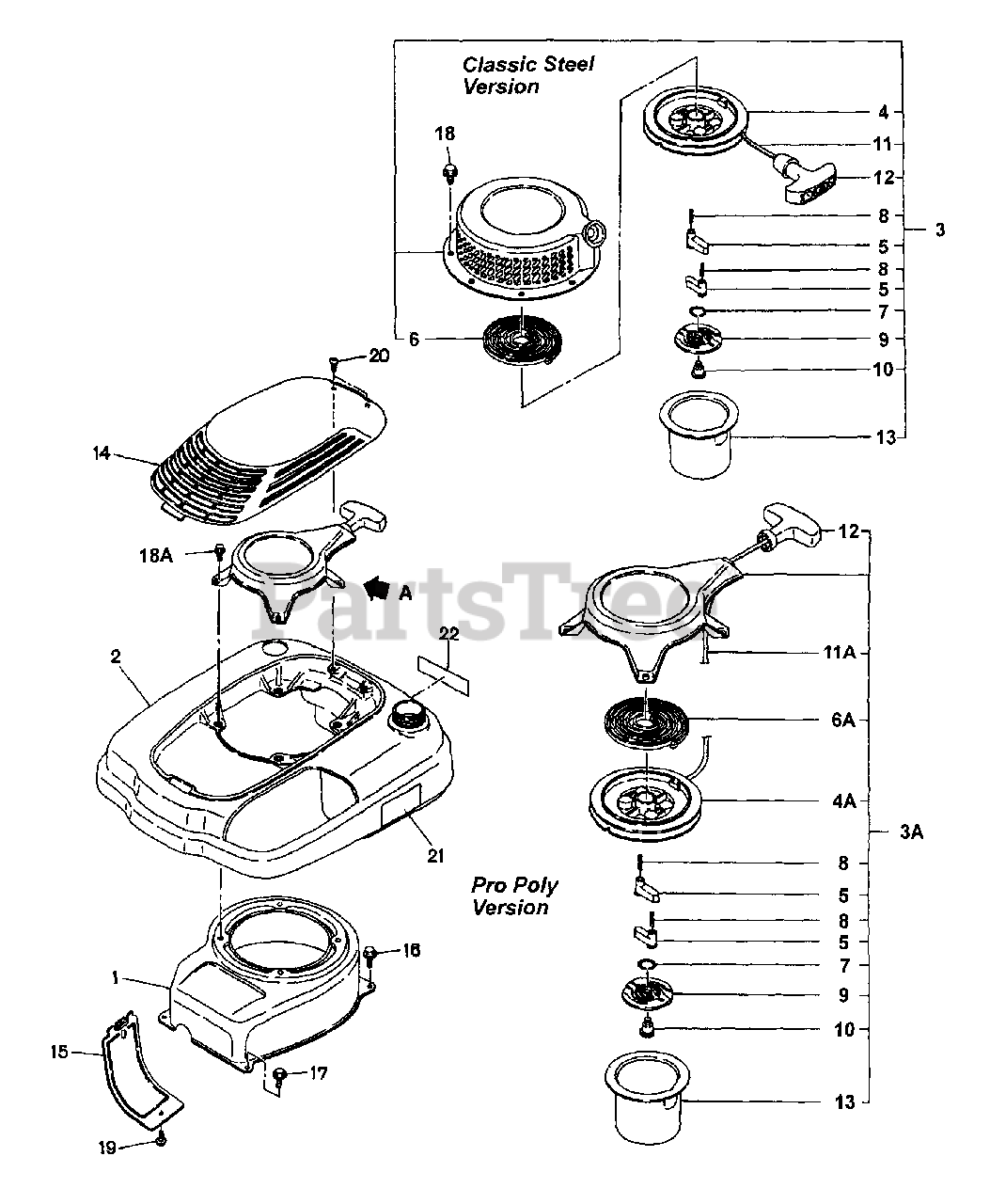

Cooling, Starting Group Parts Diagram

  • Title
1

Snapper 261-51201-01

BLOWER HOUSING, compl. (Pro Poly)

$

$

Not available

1

Snapper 261-51214-11

BLOWER HOUSING, compl., green (Classic Steel)

Note: Was 261-51212-01

$

$

Not available

1

Snapper 261-51214-11

BLOWER HOUSING, compl., black (Classic Steel)

Note: Was 261-51214-01

$

$

Not available

2

Snapper 261-55001-01

ENGINE SHROUD/TANK (Pro Poly)

$

$

Currently unavailable

3A

Snapper 261-50211-00

RECOIL STARTER ASS'Y

Note: Includes items 4 thru 13, ERS

$

$

Not available

3

Snapper 261-50401-00

RECOIL STARTER ASS'Y

Note: Includes items 4 thru 13, ERS

$

$

Not available

3

Snapper 261-50402-00

RECOIL STARTER ASS'Y

Note: Includes items 4 thru 13

$

$

Not available

4A

Snapper 226-50123-08

REEL (Pro Poly)

$

$

Not available

4

Snapper 252-50121-08

REEL (Classic Steel)

$

$

Not available

$

$

Not available

6A

Snapper 215-50515-08

SPIRAL SPRING

$47.99

$

Usually ships in 2-12 days

0

6

Snapper 261-50115-08

SPIRAL SPRING

Note: Was 215-50115-08

$

$

Not available

7

Snapper 227-50131-08

FRICTION SPRING

$

$

Not available

8

Snapper 227-50135-08

RETURN SPRING

$

$

Not available

9

Snapper 161-50150-08

RATCHET GUIDE

$

$

Not available

10

$

$

Not available

11A

Snapper 261-50110-08

STARTER ROPE, extended rope start(ERS)

$

$

Not available

11

Snapper 261-50111-08

STARTER ROPE, std

$

$

Not available

12

Snapper 261-50100-08

STARTER KNOB

$

$

Not available

13

Snapper 261-50146-08

STARTER CUP

$

$

Not available

14

$

$

Not available

15

Snapper 227-52601-03

CYLINDER BAFFLE

$

$

Not available

16

Snapper 011-00600-20

FLANGE BOLT

$

$

Not available

17

Snapper 011-00600-30

FLANGE BOLT

$

$

Not available

18A

Snapper 011-00600-20

FLANGE BOLT

$

$

Not available

18

Snapper 011-00600-10

FLANGE BOLT

$

$

Not available

19

Snapper 011-00600-10

FLANGE BOLT

$

$

Not available

20

Snapper 004-71051-60

TAPPING SCREW

$

$

Currently unavailable

21

Snapper 073-20039-00

LABEL, warning

$

$

Currently unavailable

22

Snapper 261-95201-03

LABEL, emission control

$

$

Currently unavailable

--

Snapper 261-91703-03

LABEL, trademark, (Pro Poly)

Note: Not shown

$

$

Currently unavailable

--

Snapper 261-91702-03

LABEL, trademark, (Classic Steel)

Note: Not shown

$

$

Currently unavailable
