WP-1000 - Echo Water Pump (SN: W15204001001 - W15204999999) Fuel System S/N: W15204001001 - W15204003801 Parts Diagram

Water Pump

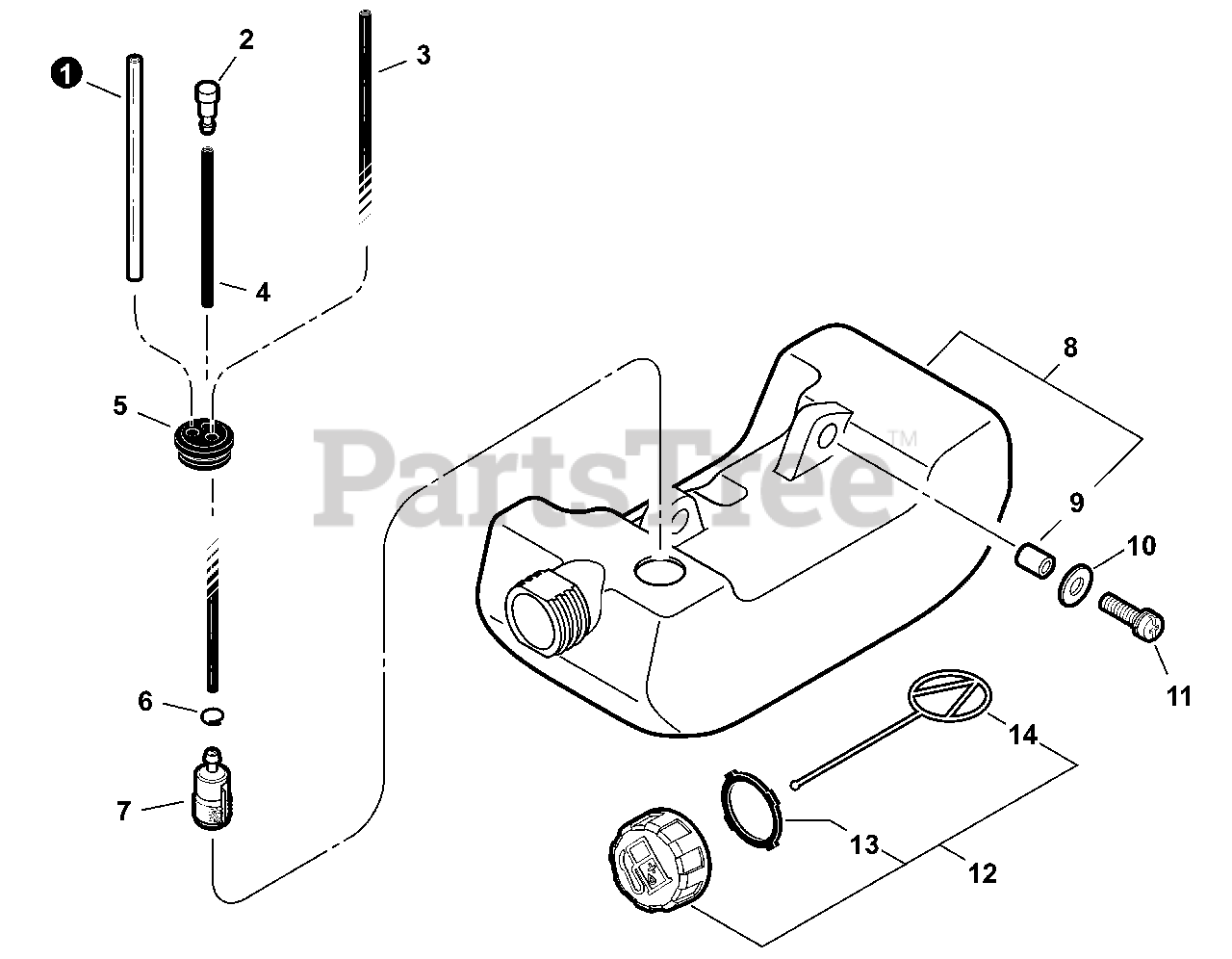

Fuel System S/N: W15204001001 - W15204003801 Parts Diagram

  • Title

1

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM

$3.49

$

In Stock, Qty 20+

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo V471001190

PIPE, FUEL 3×5×180
(Superseded to V471001191)

$1.99

$

In Stock, Qty 20+

0

4

Echo V471001200

PIPE, FUEL 3×5×70 BLACK
(Superseded to V471001201)

$2.49

$

In Stock, Qty 20+

0

5

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

6

Echo 13201309820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

7

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

8

Echo 13100546831

TANK, FUEL

Note: Includes Item 9

$18.99

$

In Stock, only 1 left!

0

9

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

10

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

12

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes Item 13-14

$7.49

$

In Stock, Qty 20+

0

13

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, only 4 left!

0
