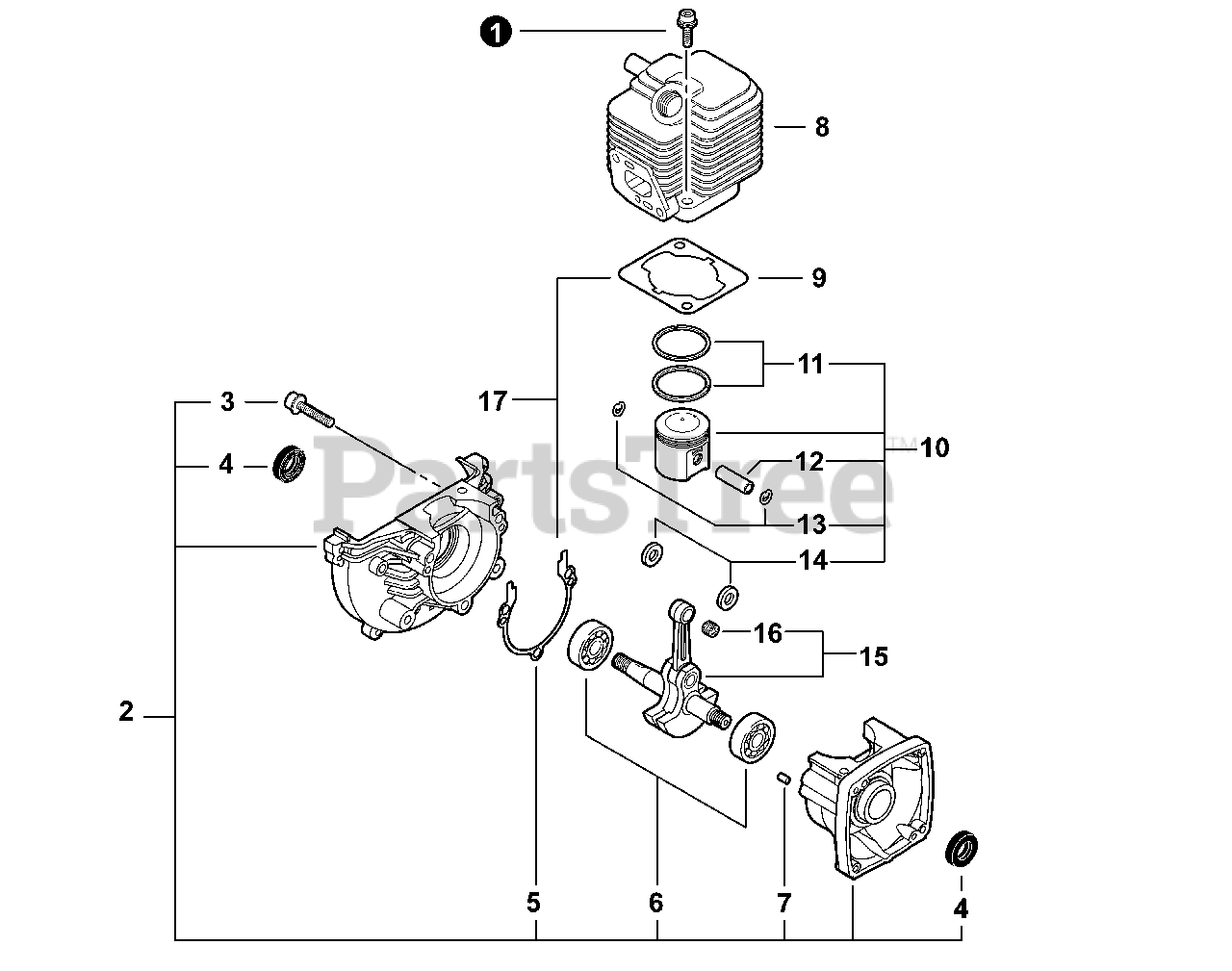

WP-1000 - Echo Water Pump (SN: W15312001001 - W15312999999) Engine Parts Diagram

Water Pump

Engine Parts Diagram

  • Title

1

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

2

Echo 10020452133

CRANKCASE KIT
(Superseded to P100001870)

Note: Includes Items 3-7

$

$

Not available

3

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

4

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

5

Echo 100242-42030

GASKET, CRANKCASE

Note: Included in Gasket Kit

$1.99

$

In Stock, Qty 17

0

6

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

7

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 12

0

8

Echo A130000021

CYLINDER
(Superseded to A130002300)

$133.99

$

Usually ships in 2-4 days

0

9

Echo 101010-44332

GASKET, CYLINDER

Note: Included in Gasket Kit

$4.99

$

In Stock, Qty 7

0

10

Echo P021001102

PISTON KIT

Note: Includes Items 11-14

$93.99

$

In Stock, only 2 left!

0

11

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

12

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

13

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

14

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

15

Echo A011000150

CRANKSHAFT ASSY
(Superseded to A011000151)

Note: Includes Item 16

$180.99

$

Usually ships in 2-4 days

0

16

Echo V553000060

BEARING, NEEDLE 8

$12.99

$

In Stock, only 2 left!

0

17

Echo P021000352

GASKET KIT

Note: See Maintenance Kits

$15.99

$

Usually ships in 2-4 days
