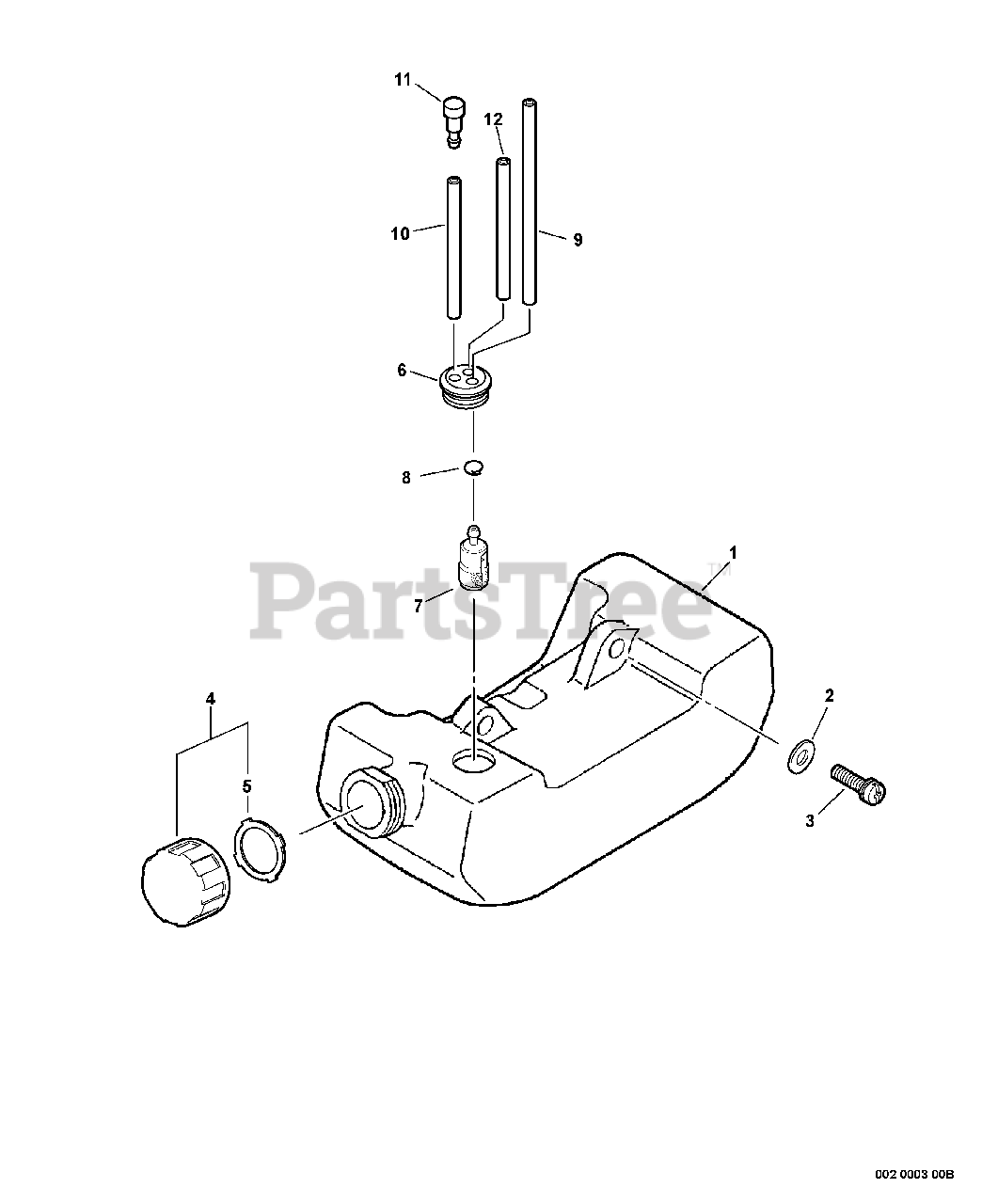

WP-1000 - Echo Water Pump (Type 1) Fuel System Parts Diagram

Water Pump (Type 1)

Fuel System Parts Diagram

  • Title

1

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$21.99

$

In Stock, Qty 6

0

2

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

4

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes ITEM 5

$5.49

$

In Stock, only 2 left!

0

5

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

6

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

7

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

8

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

9

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

10

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

11

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

12

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 9

0
