WP-1000 - Echo Water Pump (Type 1) Pump Parts Diagram

Water Pump (Type 1)

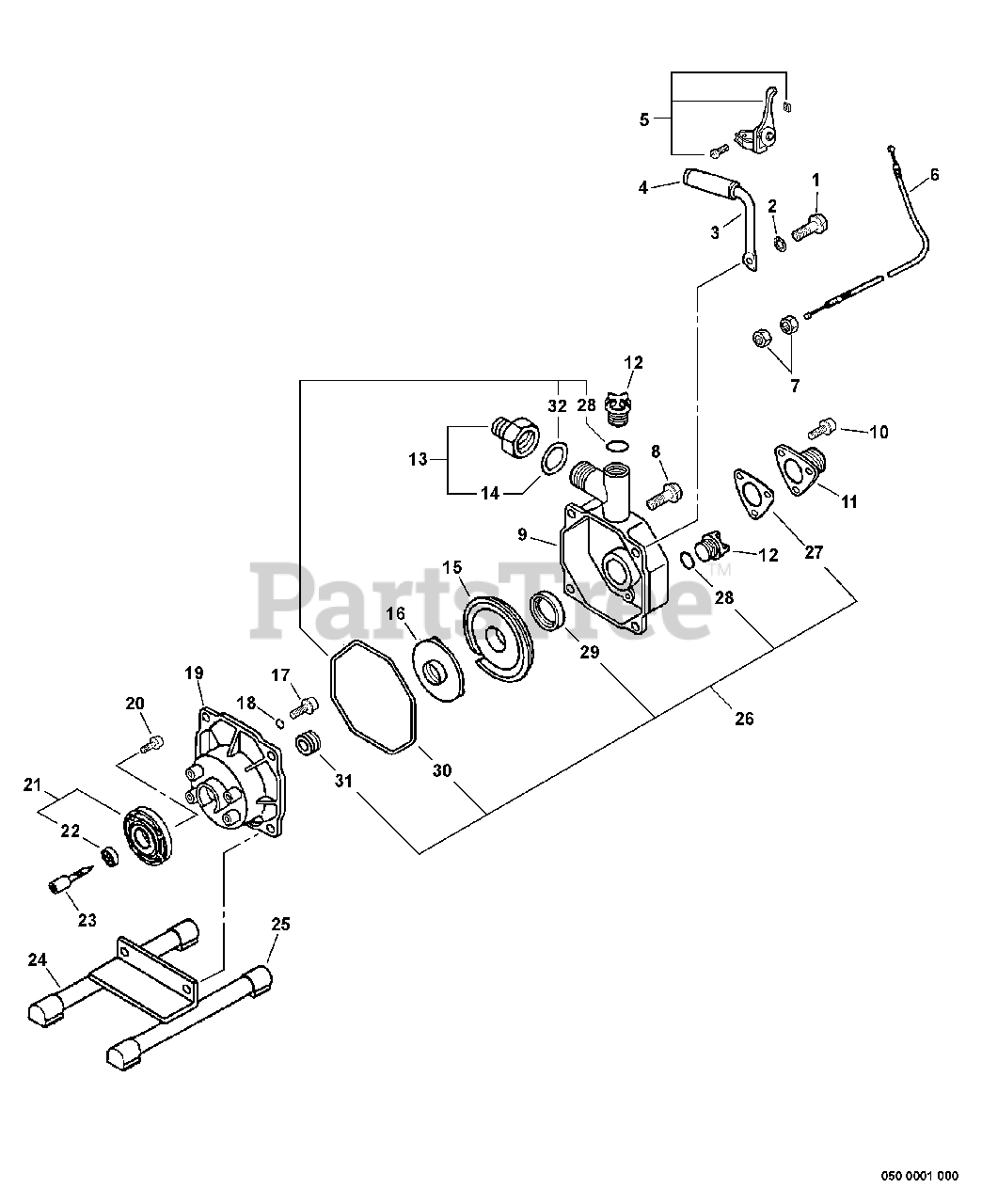

Pump Parts Diagram

  • Title

1

Echo 90015508035

BOLT - 8X35 -- TAPPING
(Superseded to Discontinued)

$

$

Not available

2

Echo 90061100008

LOCKWASHER - 8

$0.99

$

Usually ships in 2-4 days

0

3

Echo 35101012620

HANDLE

$36.99

$

Usually ships in 2-4 days

0

4

Echo 35101212620

GRIP, HANDLE - REAR

$20.99

$

Usually ships in 2-4 days

0

5

Echo 17800012020

THROTTLE CONTROL KIT

$34.99

$

Usually ships in 2-4 days

0

6

Echo 17800112620

CABLE, THROTTLE

$15.99

$

In Stock, only 3 left!

0

7

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 90015508025

BOLT - 8X25 -- TAPPING

$1.99

$

Usually ships in 2-4 days

0

9

Echo 40021312620

CASE, PUMP

$150.99

$

Usually ships in 2-4 days

0

10

Echo 90011706020

BOLT - 6X20

$1.99

$

Usually ships in 2-4 days

0

11

Echo 42965112620

CASE, CHECK VALVE

$20.99

$

In Stock, only 1 left!

0

12

Echo 40021612620

PLUG
(Superseded to V162000260)

$17.99

$

In Stock, only 2 left!

0

13

Echo 38200512621

NIPPLE - 1 X 3/4"

Note: Includes ITEM 14

$27.99

$

In Stock, only 2 left!

0

14

Echo 38201412620

GASKET

$4.99

$

In Stock, Qty 7

0

15

Echo 40021712620

CASE, IMPELLER

$181.99

$

Usually ships in 2-4 days

0

16

Echo 40011012620

IMPELLER

$112.99

$

Usually ships in 2-4 days

0

17

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 11

0

18

Echo 10014312620

WASHER

$1.99

$

Usually ships in 2-4 days

0

19

Echo 40021012620

CASE, PUMP

$

$

Not available

20

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, Qty 11

0

21

Echo 10020912620

PUMP ADAPTOR ASSY

Note: Includes ITEM 22

$224.99

$

Usually ships in 2-4 days

0

22

Echo 90081436201

BEARING, BALL - 6201

$14.99

$

In Stock, only 1 left!

0

23

Echo 40011212620

SHAFT, PUMP

$209.99

$

Usually ships in 2-4 days

0

24

Echo 40391012620

FRAME, PUMP

$148.99

$

Usually ships in 2-4 days

0

25

Echo 10091012620

CUSHION

$5.99

$

In Stock, Qty 6

0

26

Echo 88900112620

PUMP REBUILD KIT

Note: INCLUDES ITEMS 27-32

$184.99

$

In Stock, only 1 left!

0

27

Echo 42965012620

VALVE, CHECK

$36.99

$

Usually ships in 2-4 days

0

28

Echo 90072000024

O-RING - 24

$3.49

$

Usually ships in 2-4 days

0

29

Echo 40021212620

GASKET, PUMP

$20.99

$

Usually ships in 2-4 days

0

30

Echo 90072503150

O-RING

$21.99

$

Usually ships in 2-4 days

0

31

Echo 40010012620

SEAL

$85.99

$

Usually ships in 2-4 days

0

32

Echo 38201812620

GASKET

$1.99

$

Usually ships in 2-4 days

0
