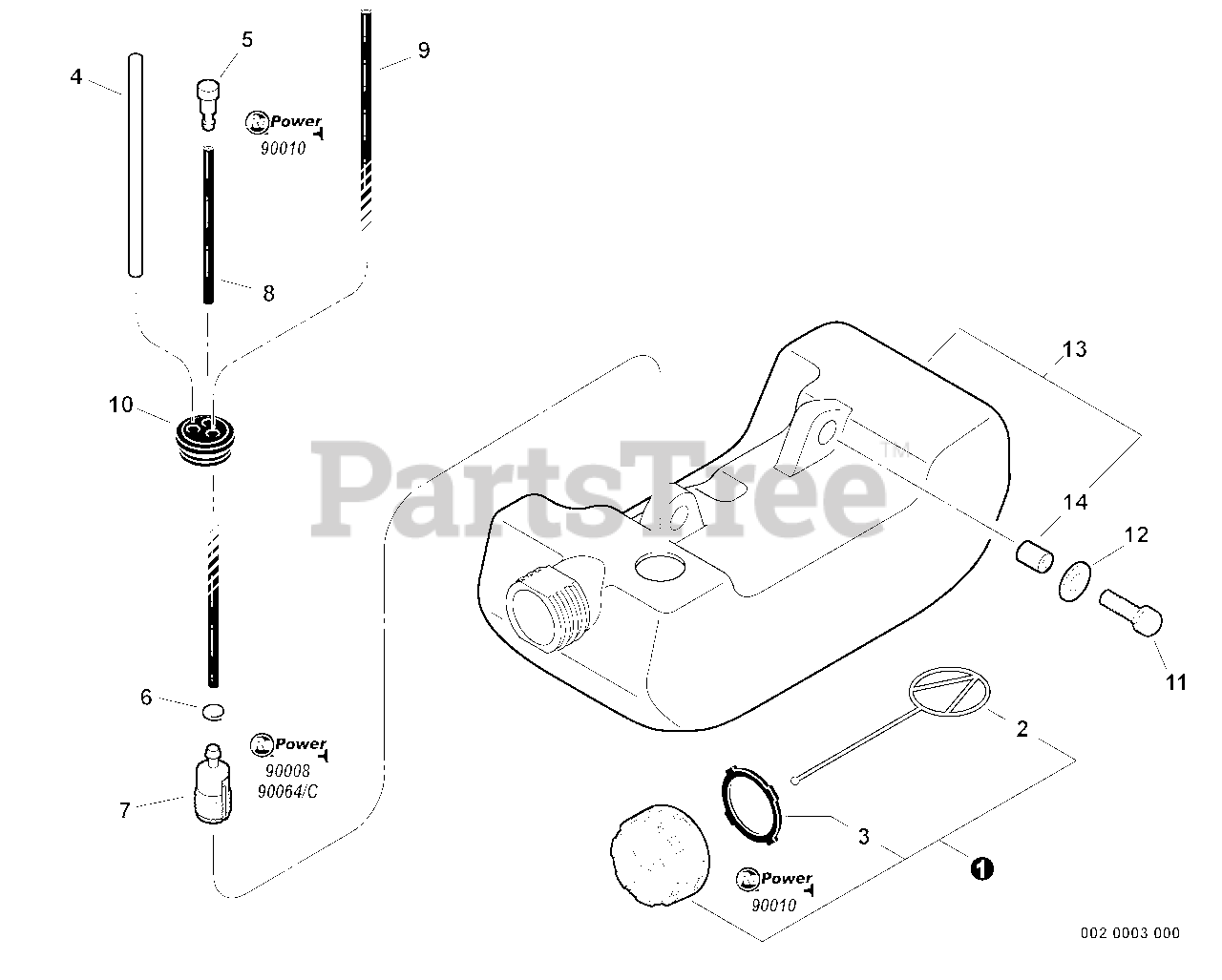

WP-1000 - Echo Water Pump (Type 1E) (SN: W15204001001 - W15204999999) Fuel System S/N: W15204001001 - W15204003801 Parts Diagram

Water Pump (Type 1E)

Fuel System S/N: W15204001001 - W15204003801 Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEM 2-3

$6.99

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

6

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

8

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

9

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

10

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

11

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13100546831

FUEL TANK ASSY

Note: Includes ITEM 14

$16.99

$

In Stock, only 2 left!

0

14

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 8

0

15

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

16

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

17

Echo 90064

RePower TUNE-UP KIT
(Superseded to 90157)

$

$

Not available

17

Echo 90064C

RePower TUNE-UP KIT
(Superseded to 90157)

Note: CANADA MODELS

$

$

Not available
