WP-1000 - Echo Water Pump (Type 1E) (USA SN: 501001 - 599999) (CAN SN: 01001-99999) Fuel System Parts Diagram

Water Pump (Type 1E)

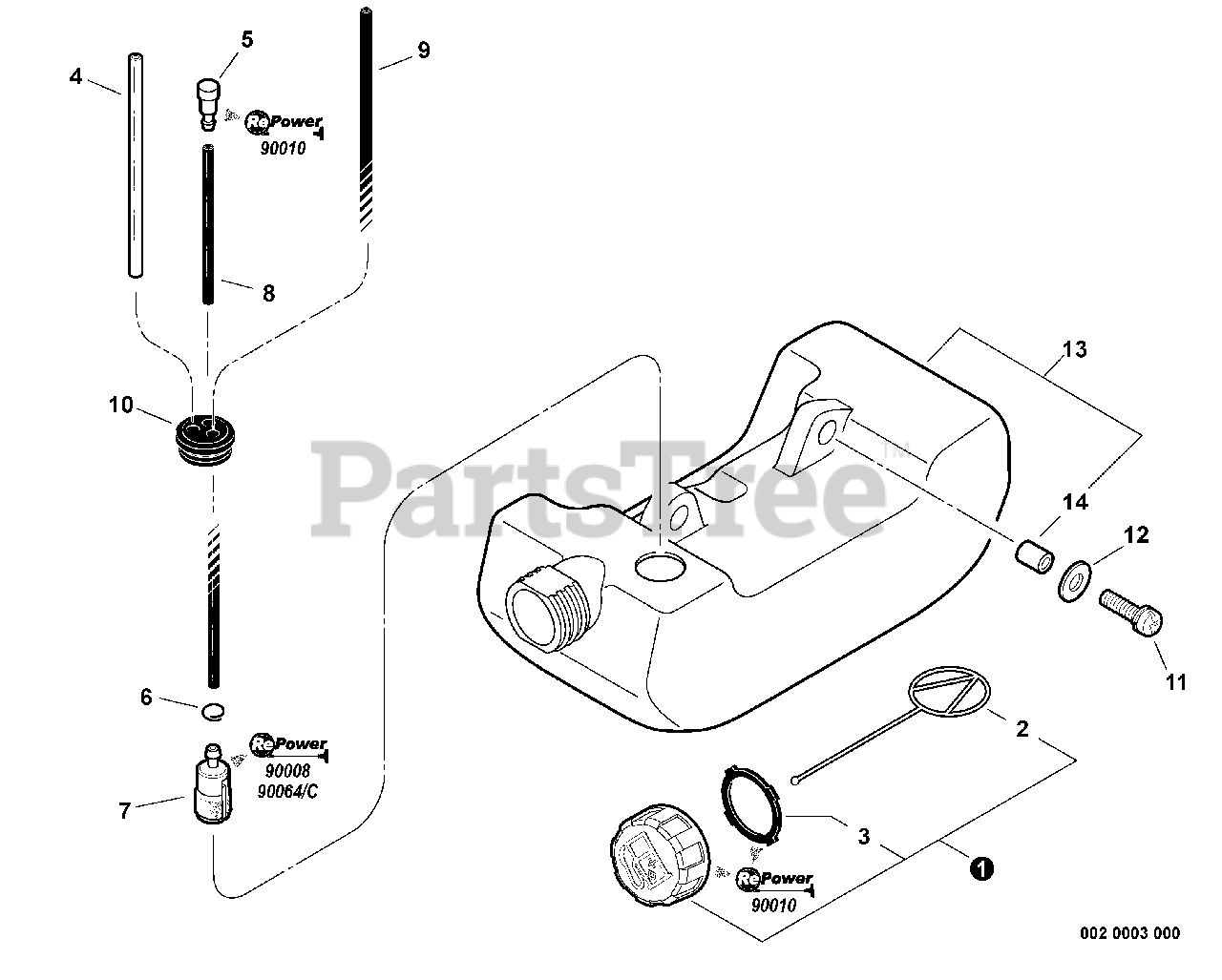

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEM 2-3

$7.49

$

In Stock, Qty 20+

0

2

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 12

0

3

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

4

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

6

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

8

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

9

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

10

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

11

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 13100546831

TANK, FUEL

Note: Includes ITEM 14

$18.99

$

In Stock, Qty 10

0

14

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

15

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available
