WP 12542 A - Winston Pro Lawn Tractor (1992) MOWER Parts Diagram

Lawn Tractor

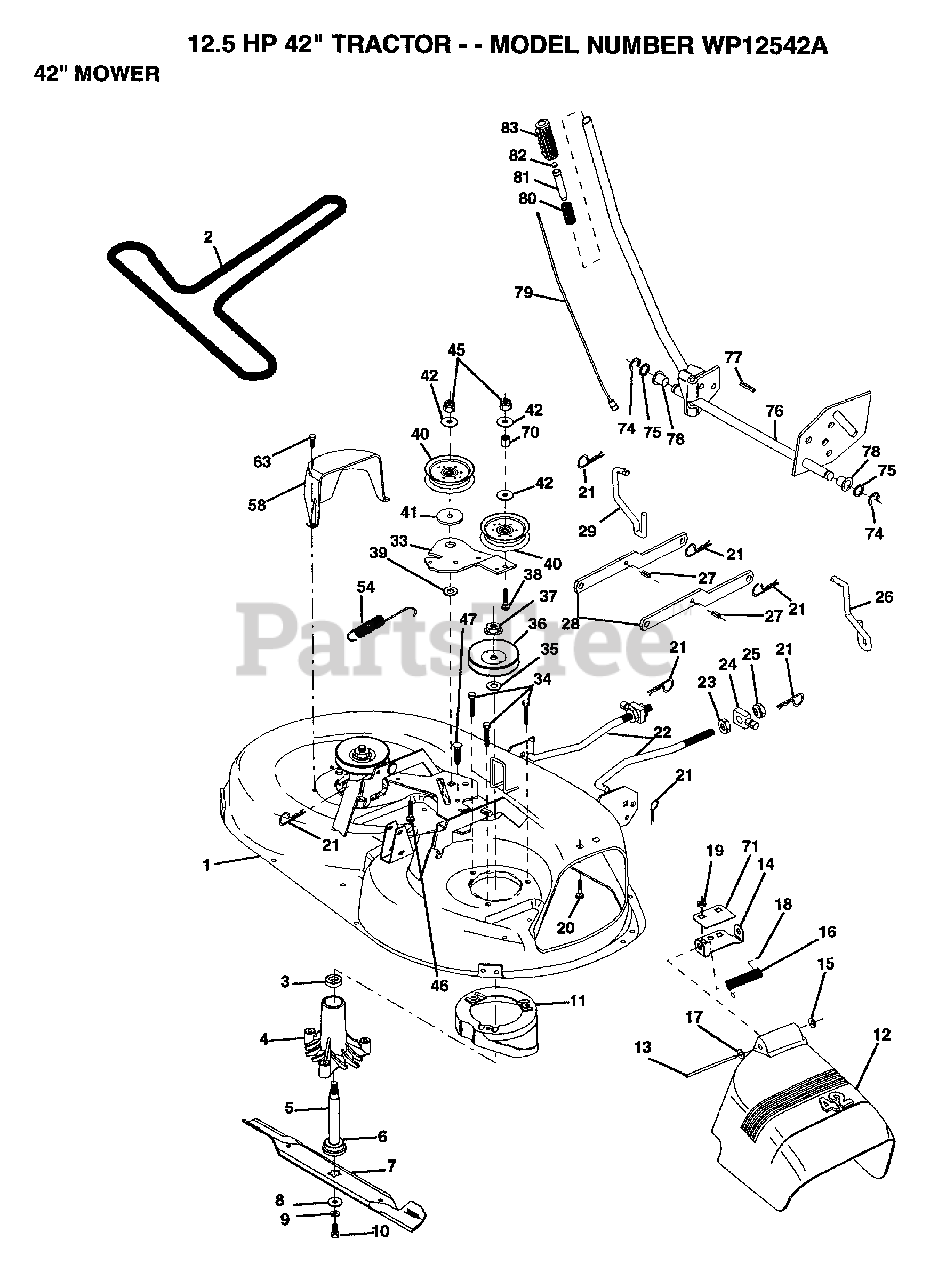

MOWER Parts Diagram

  • Title

1

Electrolux/AYP 130970

SUB= 145338

$

$

Not available

2

Electrolux/AYP 130969

BELT-V.92.4.MWR
(Superseded to 532130969)

$30.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$10.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$31.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 133172

SUB= 137646

$

$

Not available

6

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$26.99

$

In Stock, Qty 11

0

7

Electrolux/AYP 127843

SUB= 138498

$

$

Not available

8

Electrolux/AYP 129962

WASHER BLADE
(Superseded to 532140296)

$6.49

$

In Stock, Qty 6

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$3.99

$

In Stock, Qty 16

0

11

Electrolux/AYP 128961

SUB= 140329

$

$

Not available

12

Electrolux/AYP 130968

DEFLECTOR.SHIELD
(Superseded to 532130968)

$34.99

$

In Stock, Qty 20+

0

13

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$5.99

$

In Stock, Qty 9

0

17

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

19

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

21

Murray 4939M

SUB= 85902

$

$

Not available

22

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

25

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 135388

LIFT LINK RH

$

$

Not available

27

Electrolux/AYP 135563

"PIN,SPRING"
(Superseded to 532135563)

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

29

Electrolux/AYP 134619

LINK LIFT LH
(Superseded to 532134619)

$34.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 133844

IDLER ARM
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 78158

SUB= 17580520

$

$

Not available

35

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

36

Electrolux/AYP 129861

SUB= 153535
(Superseded to 532129861)

$

$

Not available

37

Electrolux/AYP 73050900

SUB= 139729

$

$

Not available

38

Electrolux/AYP 72110616

BOLT
(Superseded to 872110616)

$3.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 20+

0

41

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.49

$

In Stock, Qty 12

0

42

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 72110622

BOLT
(Superseded to 872110622)

$3.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 131950

SPRING.EXTENSION
(Superseded to 532131950)

$8.99

$

In Stock, Qty 8

0

58

Electrolux/AYP 131857

SUB= 140088

$

$

Not available

63

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

70

Electrolux/AYP 132823

SUB= 532132823
(Superseded to 532132823)

$7.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$4.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 12000002

SUB= 2225J

$

$

Not available

75

Electrolux/AYP 19211416

WASHER
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 132172

LIFT SHAFT ASM

$

$

Not available

77

Electrolux/AYP 105767X

PIN-GROOVE LT
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

78

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.49

$

In Stock, Qty 7

0

79

Electrolux/AYP 132175

SUB= 136973

$

$

Not available

80

Electrolux/AYP 122512X

SUB= 532122512

$

$

Not available

81

Electrolux/AYP 122364X

SUB= 125925X
(Superseded to 532122364)

$

$

Not available

82

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

83

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$6.99

$

In Stock, only 1 left!

0

Electrolux/AYP 136371

SUB= 145452

$

$

Not available

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$44.99

$

In Stock, Qty 20+

0
