WP 12R38 A - Winston Pro Lawn Tractor (1992) MOWER DECK Parts Diagram

Lawn Tractor

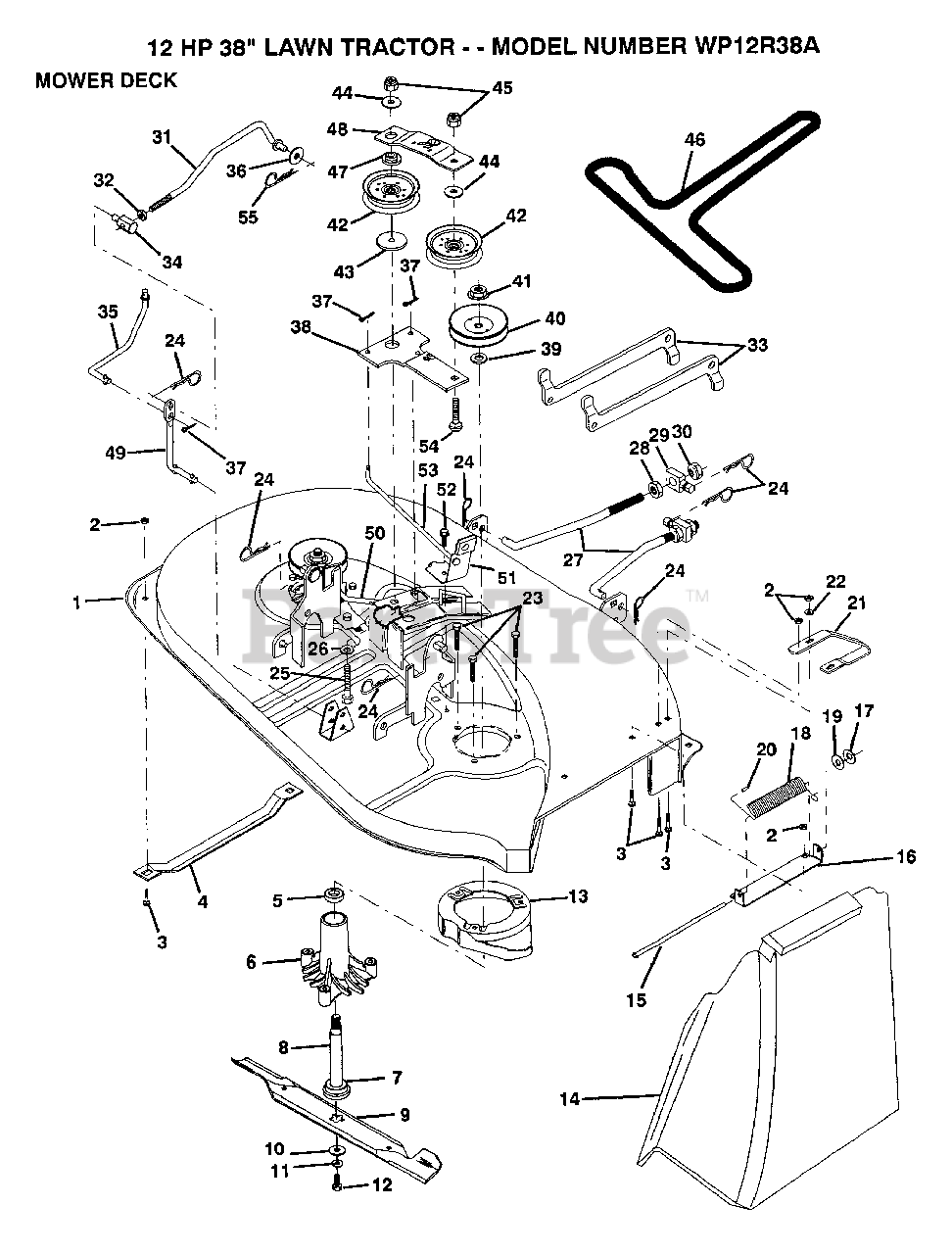

MOWER DECK Parts Diagram

  • Title

1

Electrolux/AYP 132564

MOWER DECK ASSY
(Superseded to 532145775)

$

$

Not available

2

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.49

$

In Stock, Qty 20+

0

3

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

4

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$17.99

$

In Stock, only 2 left!

0

5

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$14.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$20.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 133172

SUB= 137646

$

$

Not available

9

Electrolux/AYP 127842

SUB= 138497

$

$

Not available

10

Electrolux/AYP 129962

WASHER BLADE
(Superseded to 532140296)

$6.99

$

In Stock, Qty 16

0

11

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

12

Electrolux/AYP 820857

BOLT

$

$

Not available

13

Electrolux/AYP 128961

SUB= 140329

$

$

Not available

14

Electrolux/AYP 106736X

DEFLECTOR-SHLD T
(Superseded to 532106736)

$

$

Not available

15

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$11.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 105896X

SUB= 137607
(Superseded to 532105896)

$

$

Not available

17

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

19

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.49

$

In Stock, Qty 20+

0

20

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$3.49

$

In Stock, Qty 19

0

21

Electrolux/AYP 128772

RUNNER RH
(Superseded to 532128772)

$

$

Not available

22

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$

$

Not available

23

Electrolux/AYP 78158

SUB= 17580520

$

$

Not available

24

Murray 4939M

SUB= 85902

$

$

Not available

25

Electrolux/AYP 74600636

BOLT
(Superseded to 874600636)

$

$

Not available

26

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$

$

Not available

27

Electrolux/AYP 132556

"LINK ASM.,FRONT"
(Superseded to 532132556)

$

$

Not available

28

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

29

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

30

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.49

$

In Stock, Qty 8

0

31

Electrolux/AYP 132553

CLUTCH ROD PRI
(Superseded to 532140915)

$

$

Not available

32

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$5.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 132559

SUSP ARM REAR
(Superseded to 532132559)

$

$

Not available

34

Electrolux/AYP 133604

TRUNNION
(Superseded to 532133604)

$

$

Not available

35

Electrolux/AYP 132554

CLUTCH ROD SEC
(Superseded to 532132554)

$

$

Not available

36

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

37

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$

$

Not available

38

Electrolux/AYP 133840

IDLER ARM ASSY
(Superseded to 532133840)

$

$

Not available

39

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 129206

SUB= 153532
(Superseded to 532129206)

$

$

Not available

41

Electrolux/AYP 73050900

SUB= 139729

$

$

Not available

42

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

44

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$

$

Not available

45

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$

$

Not available

46

Electrolux/AYP 131290

BELT-V.88.12.MW
(Superseded to 532144200)

$51.99

$

In Stock, Qty 12

0

47

Electrolux/AYP 133502

RETAINER SPACER
(Superseded to 532133502)

$5.99

$

In Stock, Qty 8

0

48

Electrolux/AYP 133503

IDLER ARM STIFF
(Superseded to 532133503)

$

$

Not available

49

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$7.99

$

In Stock, only 2 left!

0

50

Electrolux/AYP 131289

BRAKE ROD LH
(Superseded to 532131289)

$

$

Not available

51

Electrolux/AYP 130840

BRAKE ASM
(Superseded to 532130840)

$

$

Not available

52

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$3.49

$

In Stock, only 2 left!

0

53

Electrolux/AYP 131288

BRAKE ROD RH
(Superseded to 532131288)

$

$

Not available

54

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$4.99

$

In Stock, Qty 7

0

55

Electrolux/AYP 4497J

SPACER T
(Superseded to 583767901)

$

$

Not available

Electrolux/AYP 135589

SUB= 142862

$

$

Not available

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$62.99

$

In Stock, Qty 15

0
