WP 1442 A - Winston Pro Lawn Tractor (1994) ENGINE Parts Diagram

Lawn Tractor

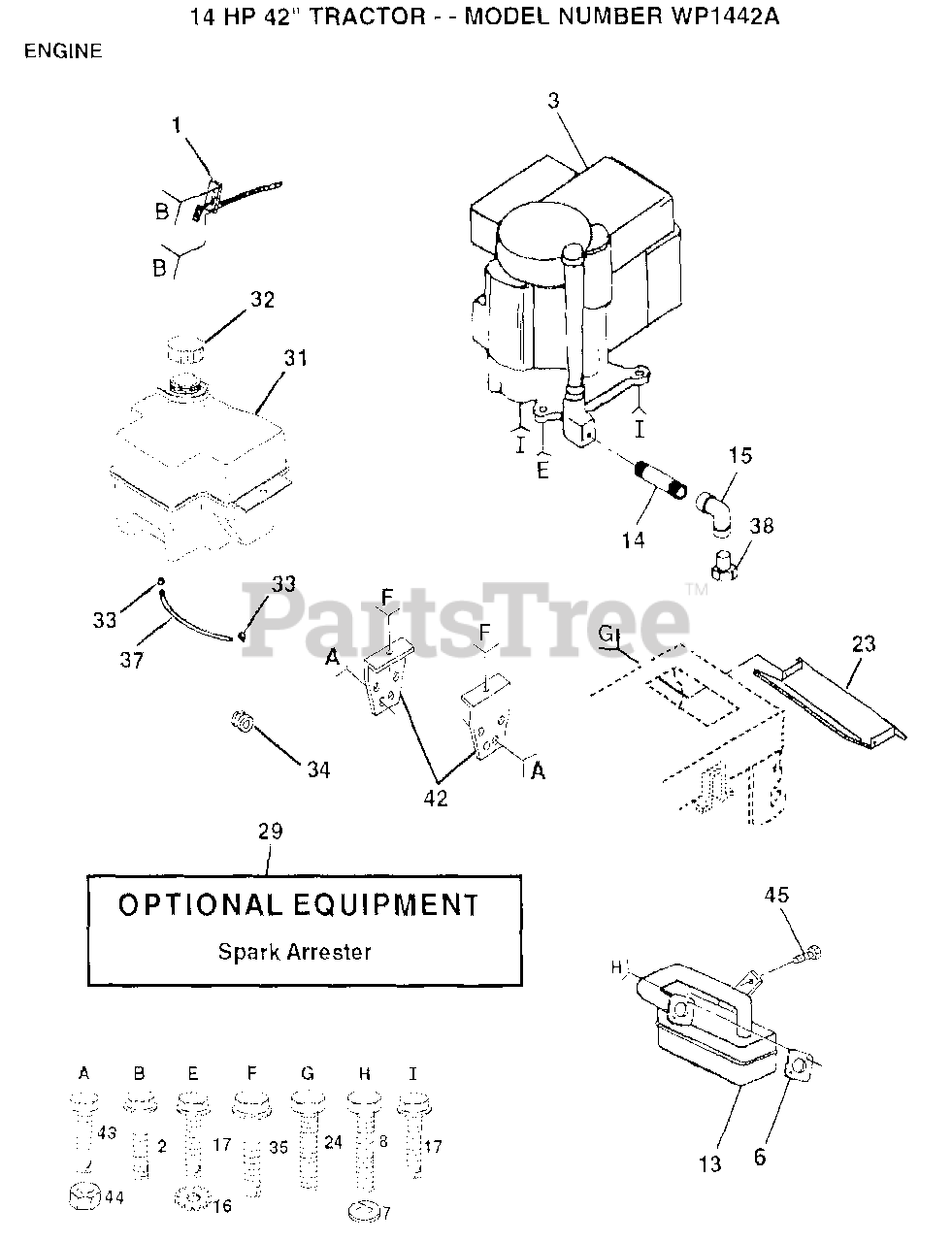

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 132752

"CONTROL,THROTTLE"
(Superseded to 532132752)

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP 287707

ENGINE B&S

$

$

Not available

6

Electrolux/AYP 125593X

SUB= 272293

$

$

Not available

7

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$

$

Not available

8

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

13

Electrolux/AYP 137352

MUFFLER
(Superseded to 532137352)

$51.99

$

In Stock, Qty 5

0

14

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$

$

Not available

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$20.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 11050500

LOCKWASHER.5/16.E
(Superseded to 811050500)

$

$

Not available

17

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$6.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 128953X

SUB= 128953

$

$

Not available

24

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 140280

SUB= 161911
(Superseded to 532180645)

$

$

Not available

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$3.99

$

In Stock, only 4 left!

0

34

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available

35

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 137040

LINE FUEL
(Superseded to 532137040)

$

$

Not available

38

CHECK WITH SUPPLIER

$

$

Not available

42

Electrolux/AYP 140282

BRACKET.SUPT.TANK

$

$

Not available

43

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$

$

Not available

44

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$

$

Not available

45

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0
