WP 145H42 G - Winston Pro Lawn Tractor (1999) GROUND DRIVE Parts Diagram

Lawn Tractor

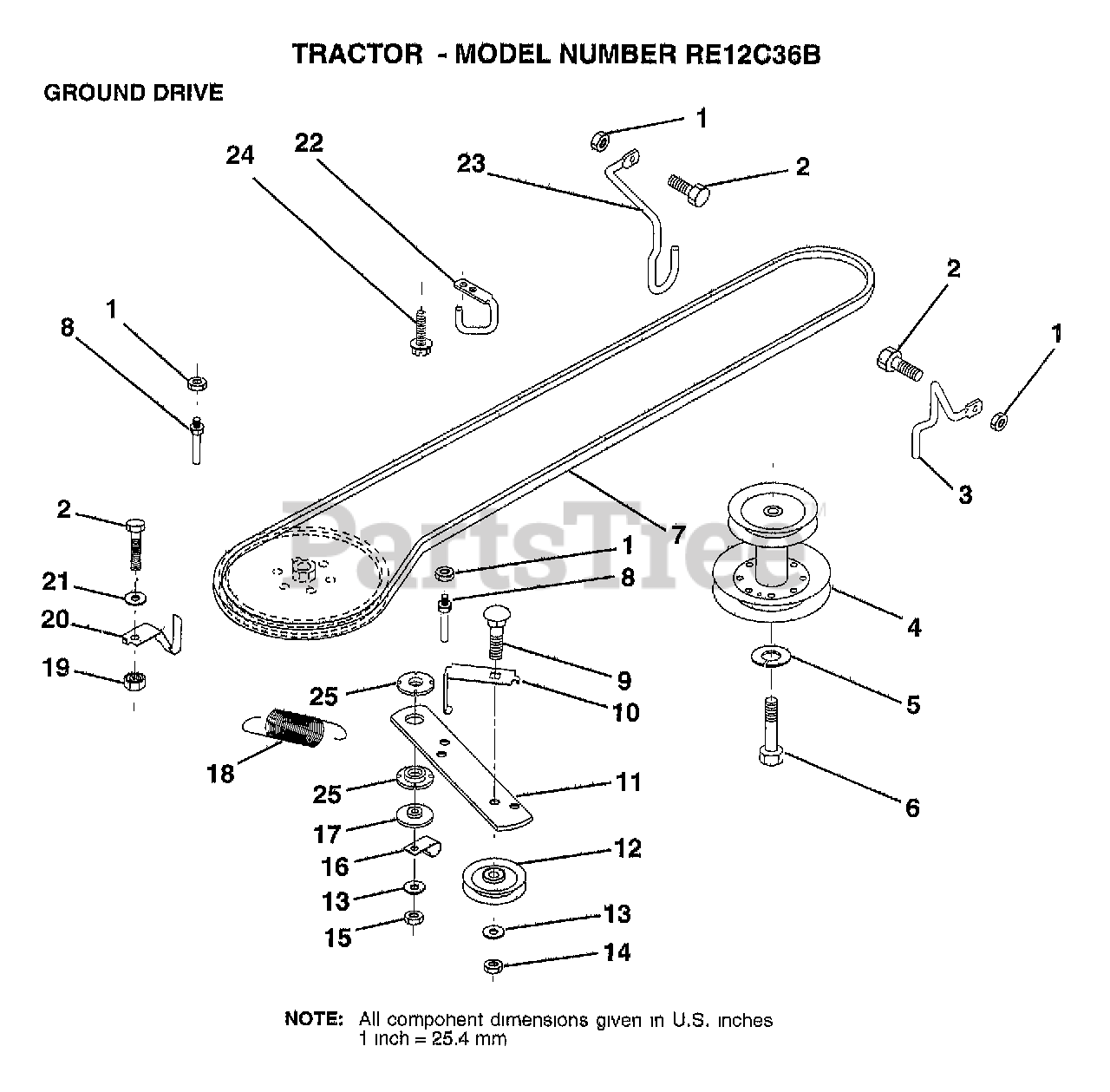

GROUND DRIVE Parts Diagram

  • Title

1

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 141342

KEEPER RH
(Superseded to 532141342)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 138029

PULLEY.ENGINE.LR

$38.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 71170744

HEX BOLT
(Superseded to 871170744)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 126520X

V BELT
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 123405X

"KEEPER,DRIVE BELT"
(Superseded to 532164173)

$8.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 72140612

BOLT
(Superseded to 872140612)

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 123396X

"KEEP,IDLER DR BEL"
(Superseded to 532123396)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 150926

ARM-IDLER.DR.GRND

$

$

Not available

12

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 150932

SPACER
(Superseded to 532150932)

$

$

Not available

18

Electrolux/AYP 131459

SUB= 532131459

$

$

Not available

19

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 139919

KEEPER.BELT.T/A
(Superseded to 532139919)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

22

Electrolux/AYP 123404X

"KEEPER,FRA DR BEL"
(Superseded to 532123404)

$

$

Not available

23

Electrolux/AYP 140916

KEEPER MOWER LH
(Superseded to 532140916)

$5.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 150935

BUSHING.NYLON
(Superseded to 532150935)

$

$

Not available
