WP-1500 - Echo Water Pump (SN: 00000 - 02431) Air Cleaner, Cylinder Head, Exhaust, Intake Parts Diagram

Water Pump

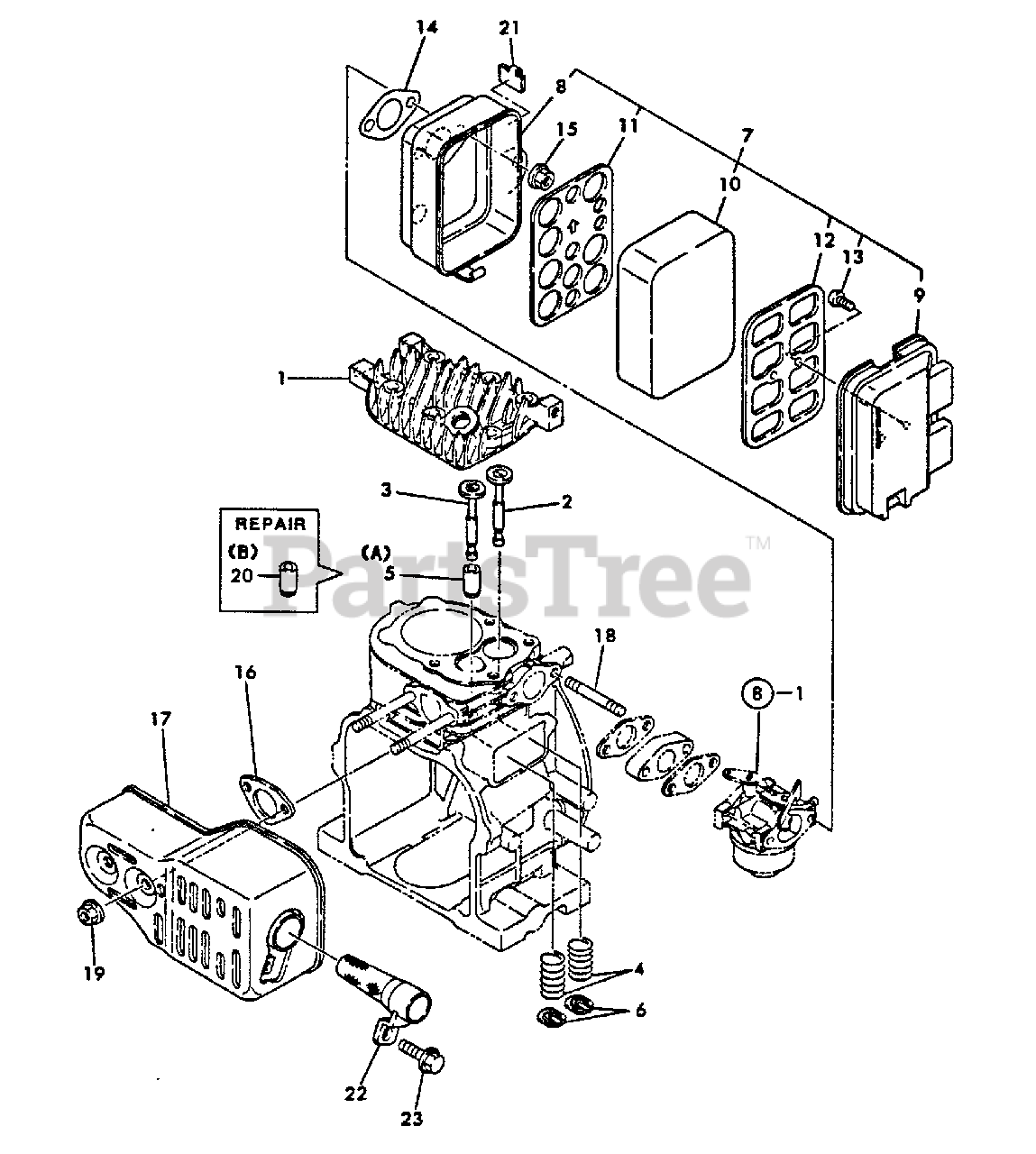

Air Cleaner, Cylinder Head, Exhaust, Intake Parts Diagram

  • Title

1

Echo Y16066011010

HEAD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066411100

VALVE, INTAKE
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066411110

VALVE, EXHAUST
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066411120

SPRING, VALVE
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16066411161

GUIDE, VALVE

$

$

Currently unavailable

6

Echo Y16066411180

RETAINER, VALVE
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16056012560

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16056012520

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

9

Echo Y76052012540

AIR FILTER COVER ASSY

$10.99

$

Usually ships in 2-4 days

0

10

Echo Y16052012540

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16052012550

HOLDER (A), ELEMENT
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16052012560

HOLDER (B), ELEMENT
(Superseded to Discontinued)

$

$

Not available

13

Echo Y26022050102

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16051056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16066413200

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16066413520

MUFFLER
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26476060552

BOLT - 6X55
(Superseded to Discontinued)

$

$

Not available

19

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16066411800

GUIDE, VALVE
(Superseded to Discontinued)

$

$

Not available

21

Echo Y16056078700

CLAMP
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16066713870

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

23

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0
