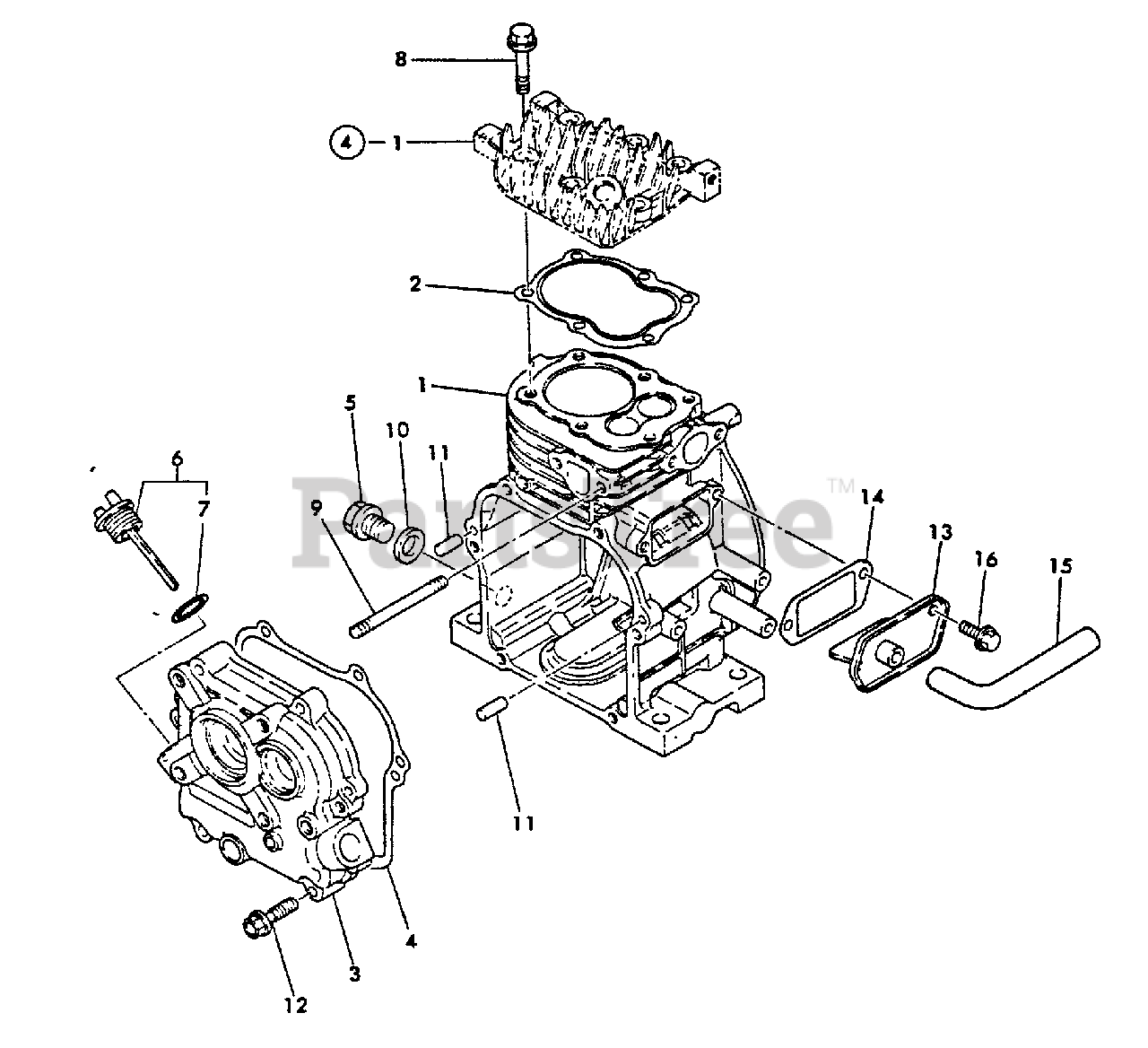

WP-1500 - Echo Water Pump (SN: 00000 - 02431) Breather, Cylinder Body Parts Diagram

Water Pump

Breather, Cylinder Body Parts Diagram

  • Title

1

Echo Y16066401010

CYLINDER ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066401331

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066401400

COVER, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066401410

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061001690

PLUG, DRAIN
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16056001740

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y24311000150

O-RING - 18
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16061004360

BOLT - 6X35
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061004570

BOLT - 6X70
(Superseded to Discontinued)

$

$

Not available

10

Echo Y10420059170

GASKET
(Superseded to Discontinued)

$

$

Not available

11

Echo Y22312060160

PIN - 6X16
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066403010

VENT, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16066403070

GASKET, BREATHER
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16061003180

PIPE - BREATHER
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
