WP-1500 - Echo Water Pump (SN: 00000 - 02431) Fuel System Parts Diagram

Water Pump

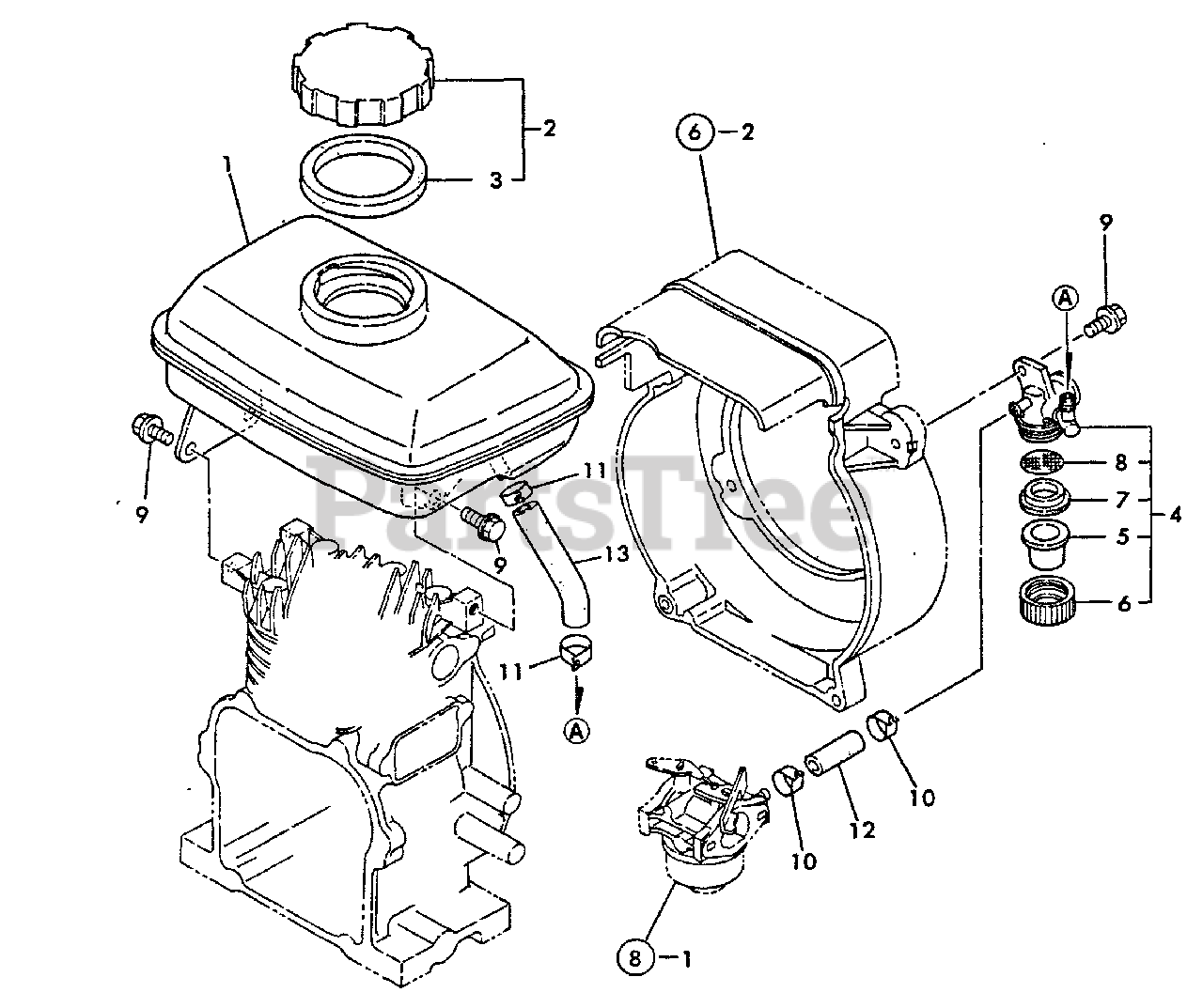

Fuel System Parts Diagram

  • Title

1

Echo Y76066455700

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16071055060

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16039355050

GASKET
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066455300

COCK ASSY, FUEL
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061055390

BOWL, STRAINER
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16071055360

RETAINER
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16071055370

GASKET
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16071055380

FILTER, FUEL
(Superseded to Discontinued)

$

$

Not available

9

Echo Y26476060142

BOLT - 6×8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

10

Echo Y12472259050

CLAMP, HOSE - 9
(Superseded to Discontinued)

$

$

Not available

11

Echo Y10699044660

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16061059160

PIPE, FUEL
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066459350

PIPE, FUEL

$6.49

$

Usually ships in 2-4 days
