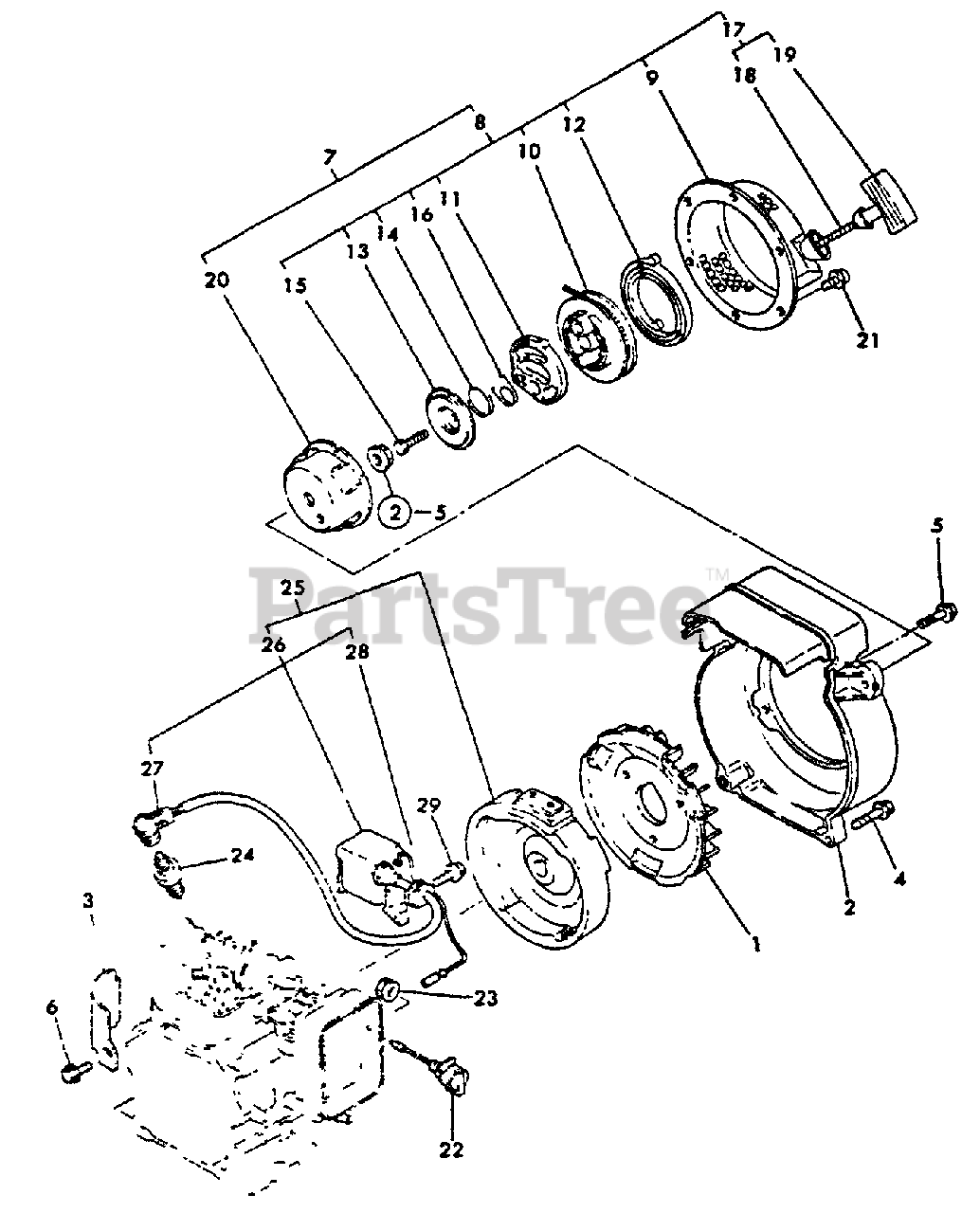

WP-1500 - Echo Water Pump (SN: 00000 - 02431) Ignition, Starter, STOP SWITCH, FAN HOUSING Parts Diagram

Water Pump

Ignition, Starter, STOP SWITCH, FAN HOUSING Parts Diagram

  • Title

1

Echo Y16066445010

FAN
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066445110

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066445200

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

4

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available

5

Echo Y26476060302

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available

6

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16066476050

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16066476260

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16066476510

STARTER CASE ASSY
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16066476520

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16066476530

RATCHET
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16066776540

SPRING
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066476580

PLATE, FRICTION
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16066776560

SPRING, FRICTION
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16066776570

BOLT
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16066776550

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

17

Echo Y16066476610

ROPE ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16066476620

ROPE
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16066476630

GRIP, STARTER
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16066476590

PULLEY, STARTER
(Superseded to Discontinued)

$

$

Not available

21

Echo Y26106060082

BOLT - 6X8 -- PLATED

$0.99

$

Usually ships in 2-4 days

0

22

Echo Y16061177250

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

23

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16052078010

SPARK PLUG -- BPM-8Y

$

$

Currently unavailable

25

Echo Y16066478060

FLYWHEEL MAGNETO ASSY
(Superseded to Discontinued)

$

$

Not available

26

Echo Y16066478510

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

27

Echo Y16052078040

CAP, SPARK PLUG
(Superseded to Discontinued)

$

$

Not available

28

Echo Y16061078720

GROMMET
(Superseded to Discontinued)

$

$

Not available

29

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available
