WP-1500 - Echo Water Pump (SN: 00000 - 02431) PUMP, FRAME Parts Diagram

Water Pump

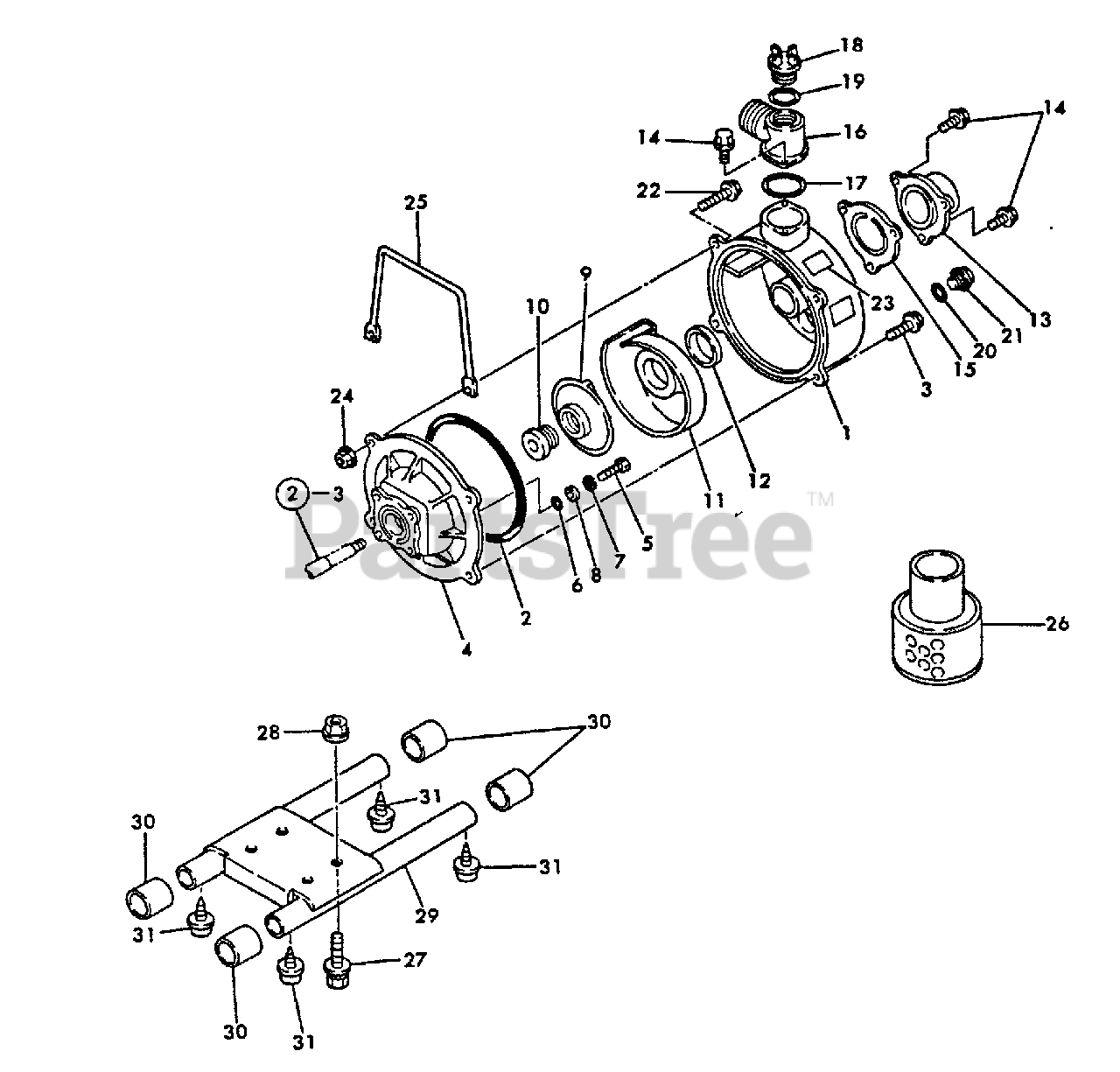

PUMP, FRAME Parts Diagram

  • Title

1

Echo Y16066495520

CASING
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066495510

GASKET, CASING
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066495610

BOLT - 8X25
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066495600

COVER, PUMP CASE
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16066495530

BOLT - 8X48
(Superseded to Discontinued)

$

$

Not available

6

Echo Y18317848040

GASKET
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16066495540

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16066495550

WASHER - 8
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16066495570

IMPELLER, SHIM 0.3 Y40106000000
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16066495560

SEAL
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16066495580

CASING, INNER
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16066495640

GASKET, INNER CASING
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066495650

CASE
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16066495740

BOLT - 6X20
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16066495590

VALVE, CHECK

$18.99

$

Usually ships in 2-4 days

0

16

Echo Y16066495680

BEND

$44.99

$

Usually ships in 2-4 days

0

17

Echo Y16066495750

GASKET, BEND
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16066495660

PLUG

$6.49

$

Usually ships in 2-4 days

0

19

Echo Y16066495670

GASKET, PLUG

$2.99

$

Usually ships in 2-4 days

0

20

Echo Y16066495630

GASKET, DRAIN BOLT
(Superseded to Discontinued)

$

$

Not available

21

Echo Y16066495620

BOLT, DRAIN - 12X20
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16066495770

BOLT - 8X40
(Superseded to Discontinued)

$

$

Not available

23

Echo Y16066495760

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16066495780

NUT - 8
(Superseded to Discontinued)

$

$

Not available

25

Echo Y16066495730

HANDLE
(Superseded to Discontinued)

$

$

Not available

26

Echo Y16066495690

STRAINER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

27

Echo Y16066495710

BOLT - 8X20
(Superseded to Discontinued)

$

$

Not available

28

Echo Y16066495120

CASE, PUMP
(Superseded to Discontinued)

$

$

Not available

29

Echo Y16066495700

BASE
(Superseded to Discontinued)

$

$

Not available

30

Echo Y16066495790

DAMPER

$2.99

$

Usually ships in 2-4 days

0

31

Echo Y16066495800

SCREW
(Superseded to Discontinued)

$

$

Not available
