WP-1500 - Echo Water Pump (SN: 02432 - 99999) Fuel System Parts Diagram

Water Pump

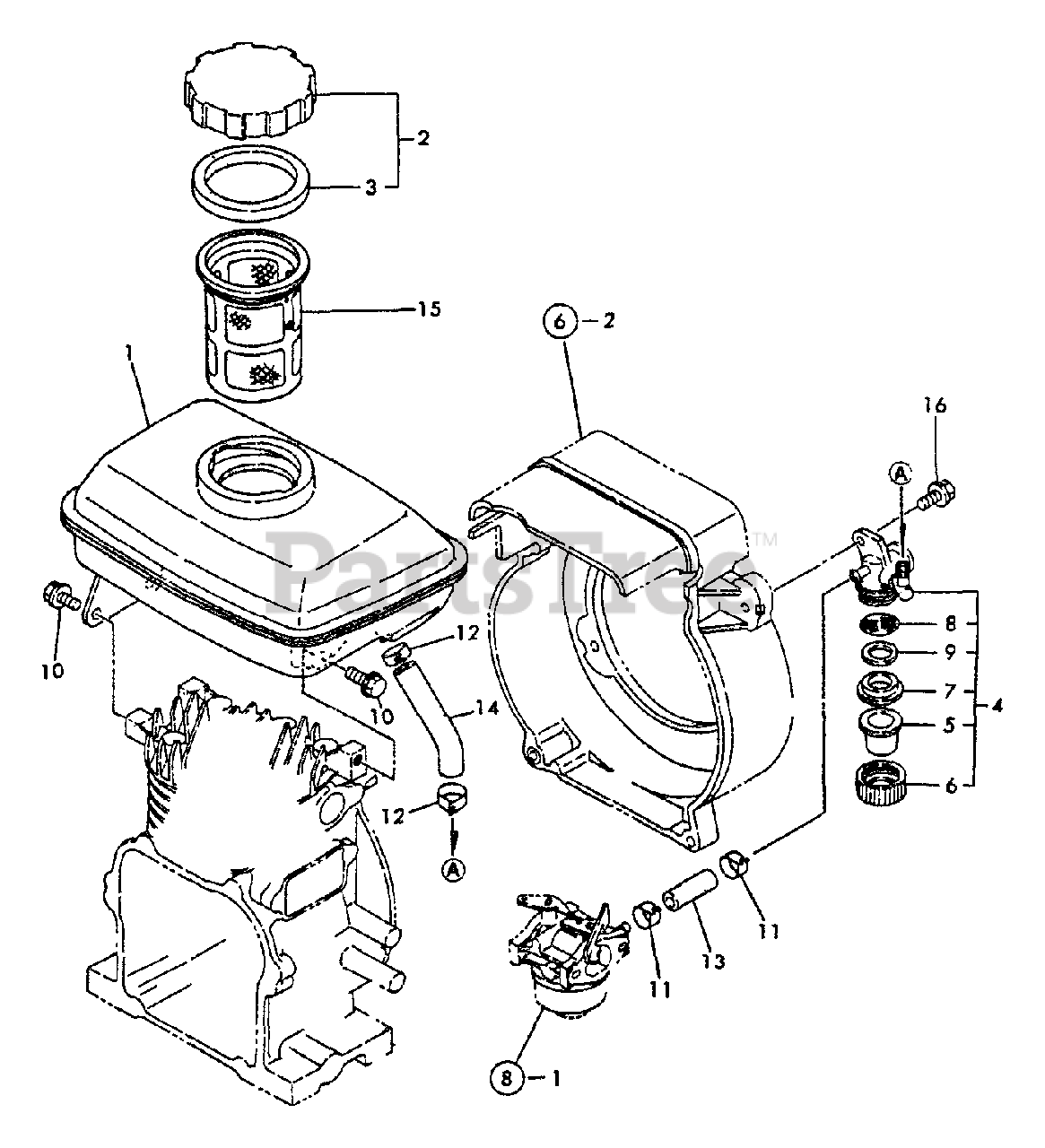

Fuel System Parts Diagram

  • Title

1

Echo 76066455700

FUEL TANK ASSY

$

$

Currently unavailable

2

Echo Y16071055060

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16039355050

GASKET
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16066455300

FUEL COCK ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061055390

BOWL, STRAINER
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16071055360

RETAINER
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16071055370

GASKET
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16071055381

FILTER, FUEL
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16069255421

PLATE
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

11

Echo Y12472259050

CLAMP, HOSE - 9
(Superseded to Discontinued)

$

$

Not available

12

Echo Y10699044660

CLAMP, HOSE
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16061059160

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16066459350

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16071055100

STRAINER, FUEL
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26106060122

BOLT - 6X12 -- PLATED
(Superseded to Discontinued)

$

$

Not available
