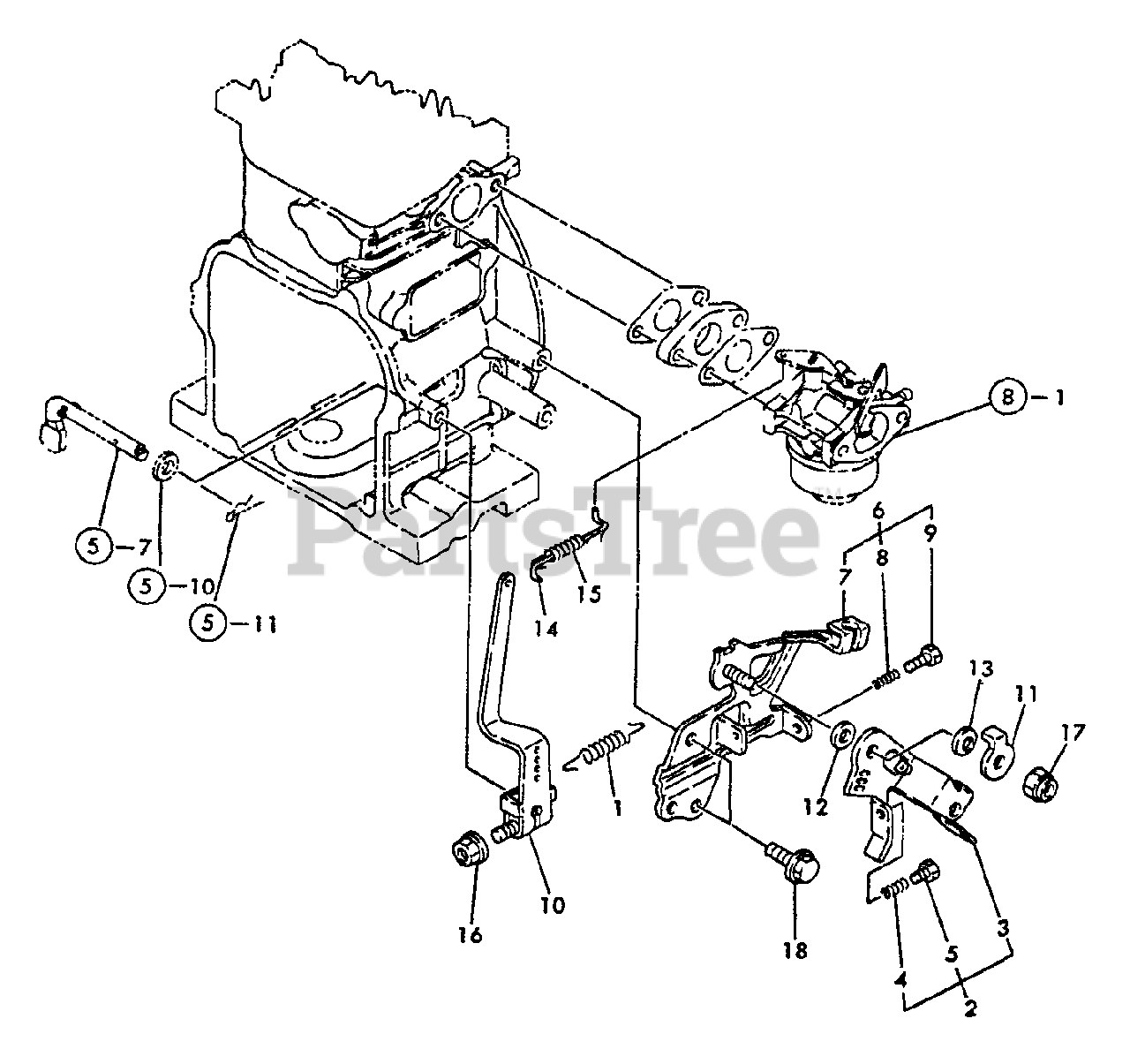

WP-1500 - Echo Water Pump (SN: 02432 - 99999) Throttle, Governor Lever Parts Diagram

Water Pump

Throttle, Governor Lever Parts Diagram

  • Title

1

Echo Y16056066010

SPRING, REGULATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066466050

REGULATOR HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066466060

HANDLE, REGULATOR
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16052066290

SPRING, IDLE
(Superseded to Discontinued)

$

$

Not available

5

Echo Y26117040207

BOLT - 4X20
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16066466100

REGULATOR BASE ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16066466110

BASE, REGULATOR
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16052066290

SPRING, IDLE
(Superseded to Discontinued)

$

$

Not available

9

Echo Y26117040257

BOLT - 4X25
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16066466150

LEVER, COVER
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16066466160

WASHER
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16066466170

WASHER - NYLON
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066466180

SPRING, PLATE
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16066466200

LINK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

15

Echo Y16066466211

SPRING, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

17

Echo Y26347060002

NUT - 6
(Superseded to Discontinued)

$

$

Not available

18

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available
