WP 18 H44A - Winston Pro Yard Tractor (1992-02) Drive Parts Diagram

Yard Tractor

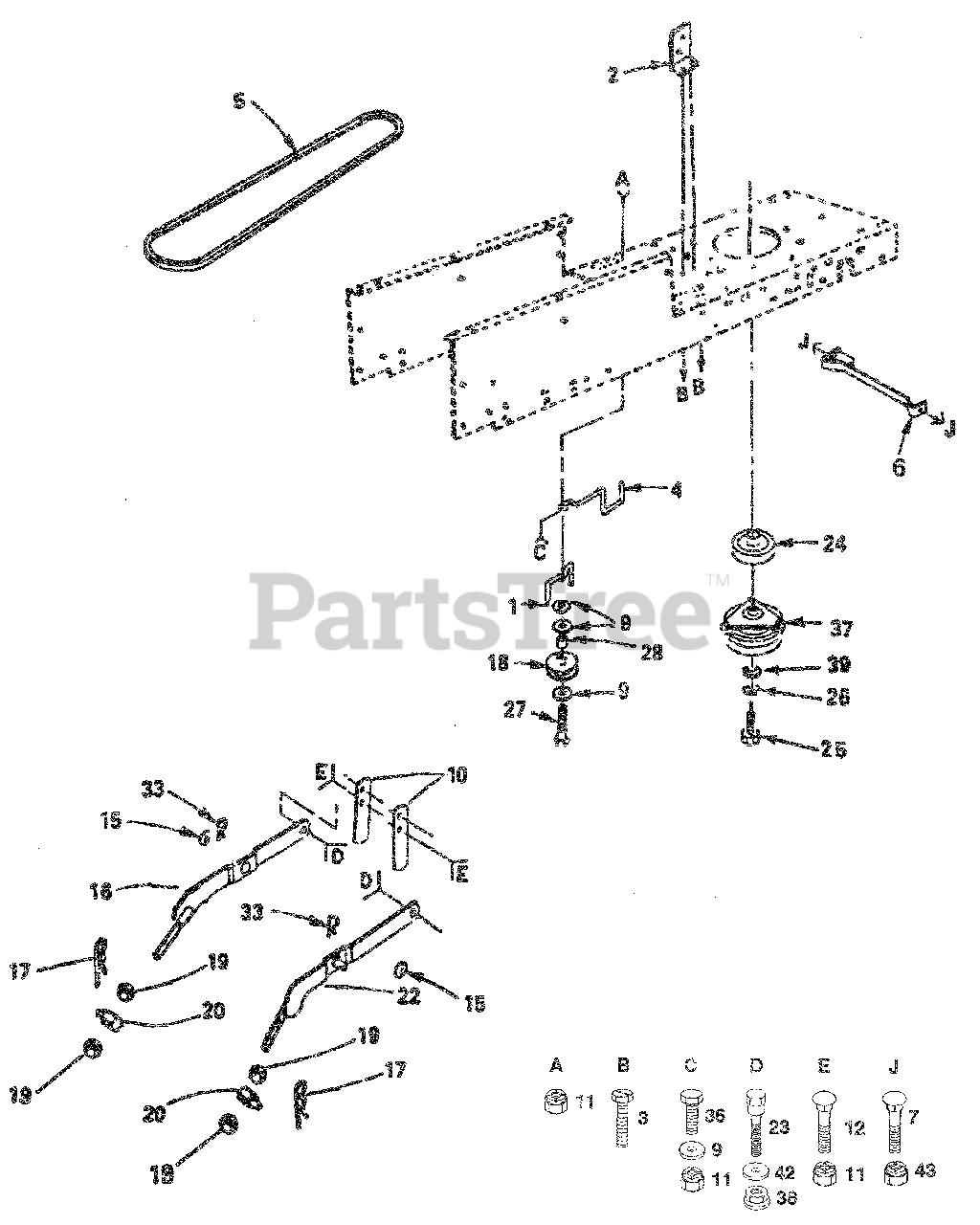

Drive Parts Diagram

  • Title

1

Husqvarna 109070X

Retainer, Belt
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 108236X

Bracket, Switch
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

3

Husqvarna 17021008

Screw, Tapping, Hex #10-24 x 1/2

$

$

Not available

4

Husqvarna 129921

Keeper Belt Engine
(Superseded to 532129921)

$

$

Not available

5

Husqvarna 123481X

V-Belt, Drive

$

$

Not available

6

Husqvarna 109189X

Retainer Asm., Clutch

$

$

Currently unavailable

7

Husqvarna 72140506

Bolt, Rdhd Sqnk 5/16 -18 x 3/4
(Superseded to 872140506)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 19131312

Washer 13/32 x 13/18 x 12 Guage
(Superseded to 582732501)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 121252X

Upstop, Mower
(Superseded to 532121252)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 72140608

Bolt, Carriage 3/8-16 x 1

$

$

Not available

15

Husqvarna 19171516

Washer 17/32 x 15 x 16 x 16 Gauge

$2.49

$

Usually ships in 3-10 days

0

18

Husqvarna 121599X

Arm Assembly, Suspension, LH

$

$

Not available

17

Husqvarna 9135R

Retainer, Spring
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 123674X

Idler, Flat
(Superseded to 532123674)

$31.99

$

In Stock, only 2 left!

0

19

Husqvarna 73220800

Nut, Hex 1/2-13

$

$

Not available

20

Husqvarna 106308X

Trunnion, Lift, Lower

$

$

Not available

22

Husqvarna 121598X

Arm Assembly, Suspension, RH

$

$

Not available

23

Husqvarna 105848X

Bolt, Shoulder 3/8-16

$

$

Not available

24

Husqvarna 109841X

Pulley, Engine

$

$

Not available

25

Husqvarna 71170768

Bolt, Hex, Fin 7/16-20 UNF x 4-1/4 Grade 8

$

$

Not available

26

Husqvarna 10040700

Washer, Lock 7/16
(Superseded to 810040700)

$

$

Not available

27

Husqvarna 74760644

Bolt, Hex 3/8-16 x 2-3/4
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 4470J

Spacer
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 4921H

Spring, Retainer
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 74760616

Bolt, Hex 3/8-16 x 1

$

$

Not available

37

Husqvarna 126112X

Clutch, Electric

$

$

Not available

38

Husqvarna 73980600

Nut, Centerlock, Flange 3/8-16

$

$

Not available

39

Husqvarna 126197X

Washer 1-1/2 x 15/32 x 1/4
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

42

Husqvarna 110739X

Washer, Spring
(Superseded to 532110739)

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 73680500

Nut, Crownlock 5/16-18

$

$

Not available
