WP 18 H44A - Winston Pro Yard Tractor (1992-02) Sundstrand Pump - - Model Number Bdu-10 Parts Diagram

Yard Tractor

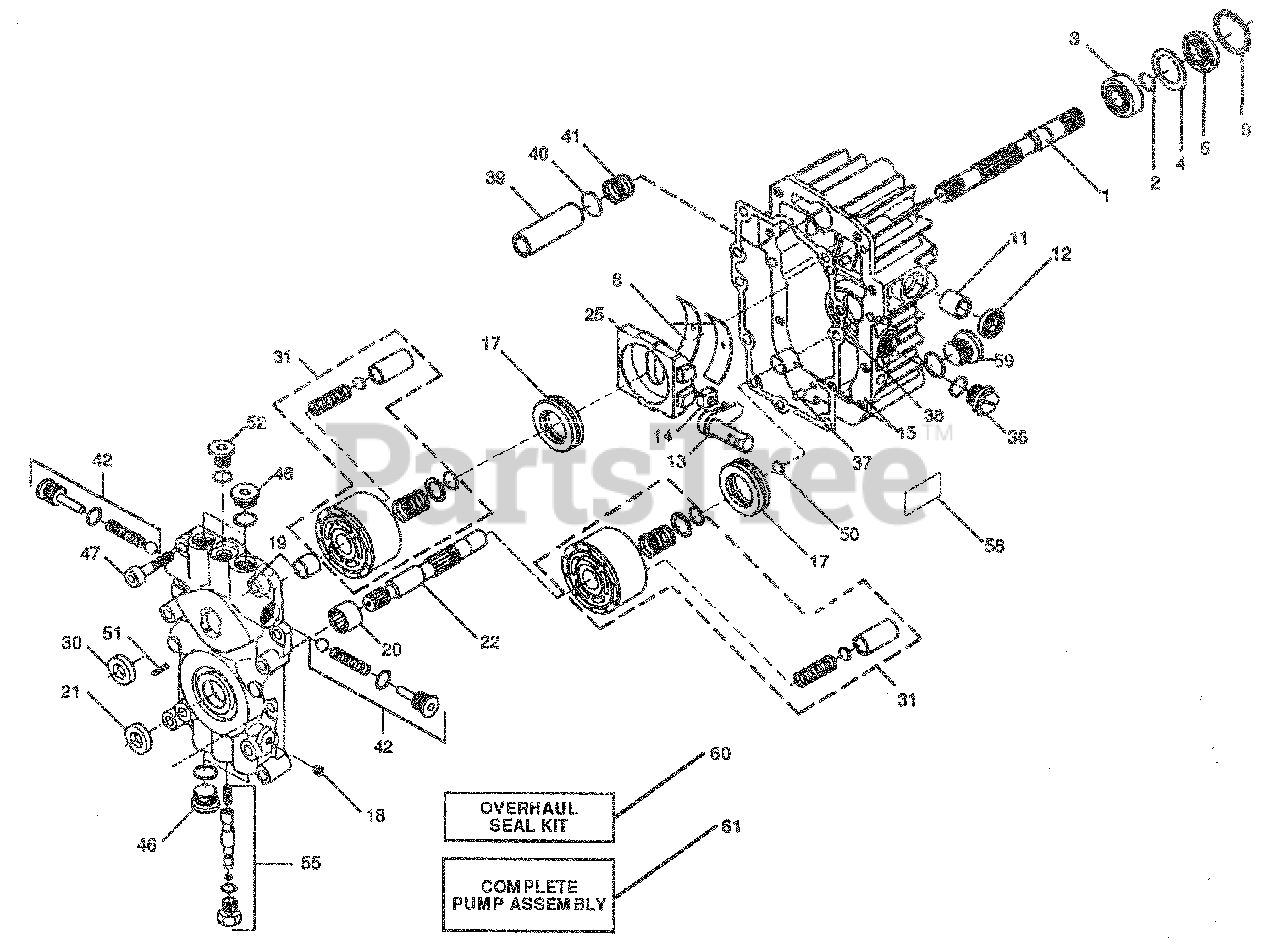

Sundstrand Pump - - Model Number Bdu-10 Parts Diagram

  • Title

1

Husqvarna 122756X

Shaft, Pump
(Superseded to 532122756)

$

$

Not available

2

Husqvarna 122716X

Ring, Retaining

$

$

Not available

3

Husqvarna 122745X

Bearing, Ball
(Superseded to 532122745)

$85.99

$

Usually ships in 3-10 days

0

4

Husqvarna 122715X

Spacer

$

$

Not available

5

Husqvarna 122700X

Seal, Lip

$

$

Not available

6

Husqvarna 122699X

Ring, Retaining

$

$

Not available

8

Husqvarna 122787X

Bearing, Cradle

$

$

Not available

11

Husqvarna 122747X

Bearing, Journal

$

$

Not available

12

Husqvarna 122717X

Seal, Lip

$

$

Not available

13

Husqvarna 122748X

Arm, Trunnion

$

$

Not available

14

Husqvarna 122749X

Guide, Slot
(Superseded to 532122749)

$

$

Not available

15

Husqvarna 127146X

Housing Kit, Transmission

$

$

Not available

17

Husqvarna 122770X

Bearing, Thrust, Ball

$

$

Not available

18

Husqvarna 122771X

Plug, Pipe

$

$

Not available

19

Husqvarna 127147X

Center Section Kit

$

$

Currently unavailable

20

Husqvarna 122773X

Bearing, Needle
(Superseded to 532122773)

$78.99

$

Usually ships in 3-10 days

0

21

Husqvarna 122722X

Seal, Lip
(Superseded to 532122722)

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 122750X

Shaft, Motor

$

$

Not available

25

Husqvarna 127148X

Swashplate, Variable

$

$

Not available

30

Husqvarna 122728X

Seal, Lip
(Superseded to 532122728)

$

$

Not available

31

Husqvarna 127149X

Block Kit, Cylinder, Pump

$

$

Currently unavailable

82

Husqvarna 127150X

Block Kit, Cylinder, Motor

$

$

Not available

36

Husqvarna 127151X

Plug, Plastic

$

$

Currently unavailable

37

Husqvarna 122788X

Pin, Stainless, Headless

$

$

Not available

38

Husqvarna 122718X

Gasket, Center Section
(Superseded to 532122718)

$9.99

$

Usually ships in 3-10 days

0

39

Husqvarna 122731X

Filter
(Superseded to 532122731)

$62.99

$

In Stock, only 1 left!

0

40

Husqvarna 122730X

Washer, Thrust
(Superseded to 532122730)

$

$

Not available

41

Husqvarna 122728X

Spring, Helical, Compression
(Superseded to 532122728)

$

$

Not available

42

Husqvarna 127152X

Check Valve Kit

$

$

Currently unavailable

46

Husqvarna 122787X

Plug, Stainless, Threaded

$

$

Not available

47

Husqvarna 122752X

Screw, Socket Head, Cap

$2.49

$

Usually ships in 3-10 days

0

50

Husqvarna 122788X

Washer, Thrust

$

$

Not available

51

Husqvarna 122789X

Pin, Spiral
(Superseded to 532122789)

$

$

Not available

52

Husqvarna 122754X

Plug, Stainless, Threaded

$

$

Not available

55

Husqvarna 127153X

Bypass Valve Kit

$

$

Not available

58

Husqvarna 122727X

Adhesive Label, Bar Coded

$

$

Not available

59

Husqvarna 122790X

Plug, Stainless, Threaded

$

$

Not available

60

Husqvarna 127154X

Overhaul Seal Kit, BDU-10 Includes; Items marked with *, O-Rings for Check Valves, and Bypass Valve
(Superseded to 532127154)

$46.99

$

Usually ships in 3-10 days

0

61

Husqvarna 121430X

Pump Assembly, Complete

$

$

Not available
