WP 18H44 A - Winston Pro Lawn Tractor (1992) SUNDSTRAND PUMP Parts Diagram

Lawn Tractor

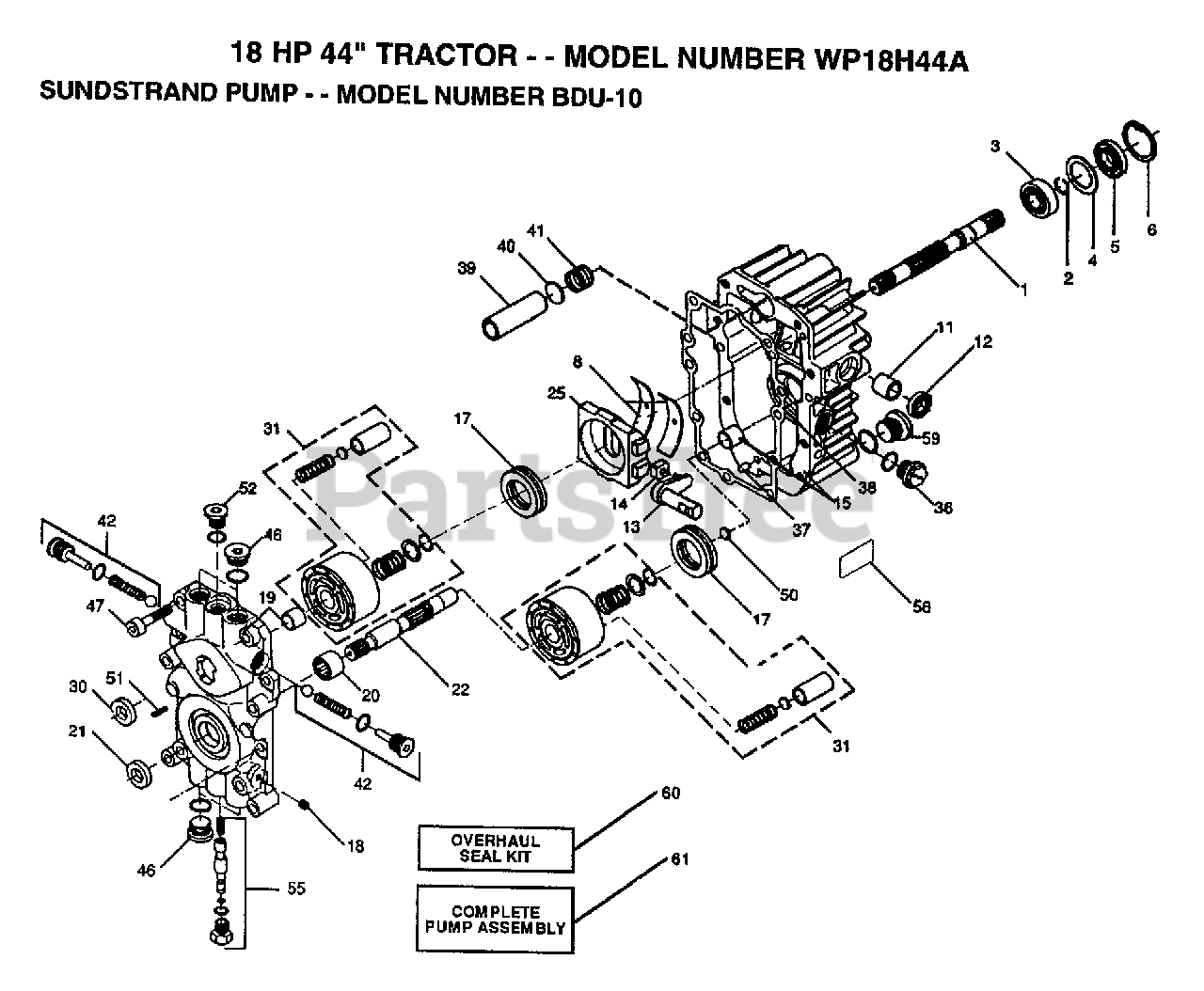

SUNDSTRAND PUMP Parts Diagram

  • Title

1

Electrolux/AYP 122756X

SHAFT.PU.2003022
(Superseded to 532122756)

$

$

Not available

2

Electrolux/AYP 122716X

RETAINIANG RING-(2003016)
(Superseded to 532142928)

$

$

Not available

3

Electrolux/AYP 122745X

BALL BEARING
(Superseded to 532122745)

$143.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 122715X

SPACER
(Superseded to 532122715)

$

$

Not available

5

Electrolux/AYP 122700X

SEAL LIP
(Superseded to 532142932)

$

$

Not available

6

Electrolux/AYP 122699X

RING.RET.2003052
(Superseded to 532142933)

$

$

Not available

8

Electrolux/AYP 122767X

CRADLE BEARING (2003023)
(Superseded to 532142935)

$47.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 122747X

BEARING
(Superseded to 532122747)

$

$

Not available

12

Electrolux/AYP 122717X

SEAL.9008000-0126
(Superseded to 532142940)

$

$

Not available

13

Electrolux/AYP 122748X

TRUNION ARM (2003005)
(Superseded to 532122748)

$

$

Not available

14

Electrolux/AYP 122749X

GUIDE.2000015.HYD
(Superseded to 532122749)

$

$

Not available

15

Electrolux/AYP 127146X

SUB= 121430X

$

$

Not available

17

Electrolux/AYP 122770X

SUB= 142936

$

$

Not available

18

Electrolux/AYP 122771X

PLUG PIPE
(Superseded to 532122771)

$

$

Not available

19

Electrolux/AYP 127147X

"KIT,CTR SECTION (2513007)"
(Superseded to 532127147)

$

$

Not available

20

Electrolux/AYP 122773X

NEEDLE BEARING
(Superseded to 532122773)

$

$

Not available

21

Electrolux/AYP 122722X

LIP SEAL-9008000-0127
(Superseded to 532122722)

$15.99

$

In Stock, only 4 left!

0

22

Electrolux/AYP 122750X

SHAFT
(Superseded to 532122750)

$

$

Not available

25

Electrolux/AYP 127148X

"SWASHPLATE,VARIAB"
(Superseded to 532142937)

$

$

Not available

30

Electrolux/AYP 122723X

SEAL LIP
(Superseded to 532122723)

$

$

Not available

31

Electrolux/AYP 127149X

"KIT,BLOCK CYLINDE"
(Superseded to 532127149)

$

$

Not available

32

Electrolux/AYP 127150X

SUB= 127149X

$

$

Not available

36

Electrolux/AYP 127151X

"PLUG,PLASTIC 9005200-8700"
(Superseded to 532127151)

$

$

Not available

37

Electrolux/AYP 122786X

PIN
(Superseded to 532122786)

$

$

Not available

38

Electrolux/AYP 122718X

GASKET.20030600
(Superseded to 532122718)

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 122731X

FILTER
(Superseded to 532122731)

$89.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 122730X

WASHER (2000011)
(Superseded to 532122730)

$

$

Not available

41

Electrolux/AYP 122728X

SPRING
(Superseded to 532122728)

$

$

Not available

42

Electrolux/AYP 127152X

KIT.VALVE.2513014
(Superseded to 532127152)

$

$

Not available

46

Electrolux/AYP 122787X

PLUG
(Superseded to 142914)

$

$

Not available

47

Electrolux/AYP 122752X

SCREW9007314-0808
(Superseded to 532122752)

$

$

Not available

50

Electrolux/AYP 122788X

WASHER
(Superseded to 532122788)

$

$

Not available

51

Electrolux/AYP 122789X

PIN
(Superseded to 532122789)

$

$

Not available

52

Electrolux/AYP 122754X

PLUG
(Superseded to 532122754)

$

$

Not available

55

Electrolux/AYP 127153X

"KIT,BYPASS VALVE"
(Superseded to 532127153)

$

$

Not available

58

Electrolux/AYP 122727X

ADHESIVE LABEL

$

$

Not available

59

Electrolux/AYP 122790X

PLUG
(Superseded to 532122790)

$

$

Not available

60

Electrolux/AYP 127154X

"KIT,OVERHEAD SEAL -2513013"
(Superseded to 532127154)

$

$

Not available

61

Electrolux/AYP 121430X

PUMP.BDU-10S-114
(Superseded to 532121430)

$

$

Not available
