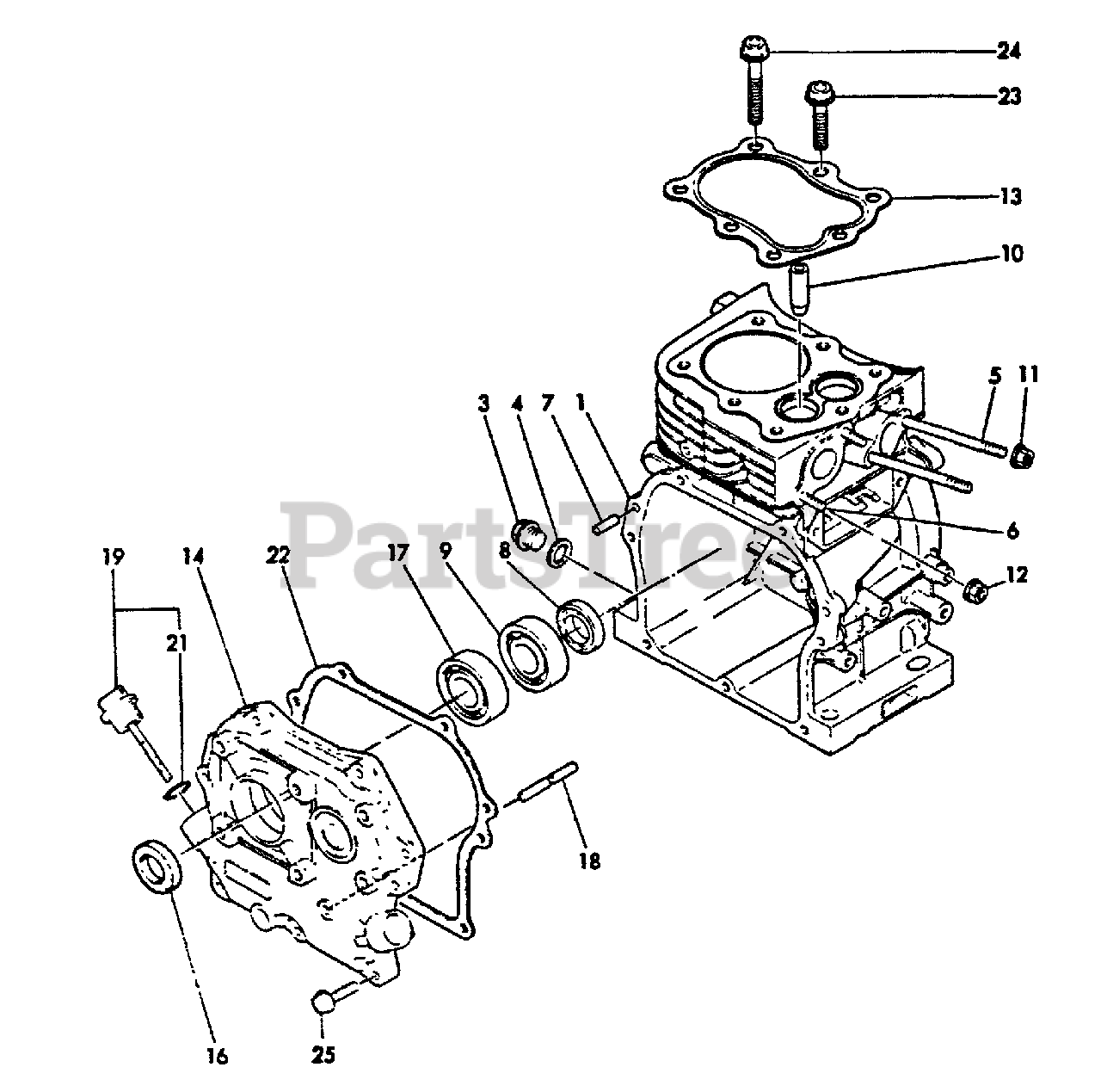

WP-2000 - Echo Water Pump (SN: A0000 - A1009) Cylinder Body Parts Diagram

Water Pump

Cylinder Body Parts Diagram

  • Title

1

Echo Y76061101560

CYLINDER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16061001690

PLUG, DRAIN
(Superseded to Discontinued)

$

$

Not available

4

Echo Y10420059170

GASKET
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061004570

BOLT - 6×70
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061004620

BOLT - 6×16
(Superseded to Discontinued)

$

$

Not available

7

Echo Y22312060160

PARALLEL PIN 6×16
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16061002220

SEAL, OIL

$7.99

$

Usually ships in 2-4 days

0

9

Echo Y24101062040

BEARING, BALL 6204 C3
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16061011160

GUIDE, VALVE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26366060002

U-NUT M6
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26366060002

U-NUT M6
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16061101330

GASKET, CYLINDER

$14.99

$

Usually ships in 2-4 days

0

14

Echo Y76064101510

SIDE COVER ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16064002220

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0

17

Echo Y24101062040

BEARING, BALL 6204 C3
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16061061100

SHAFT, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16061101740

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo Y24311000150

O-RING 1A P-15.0
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16061001410

GASKET
(Superseded to Discontinued)

$

$

Not available

23

Echo Y16061004171

BOLT - 8×38
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16061004191

BOLT - 8×60
(Superseded to Discontinued)

$

$

Not available

25

Echo Y26476060252

BOLT - 6×30
(Superseded to Discontinued)

$

$

Not available
