WP-2000 - Echo Water Pump (SN: A0000 - A1009) Intake, Exhaust, Air Cleaner Parts Diagram

Water Pump

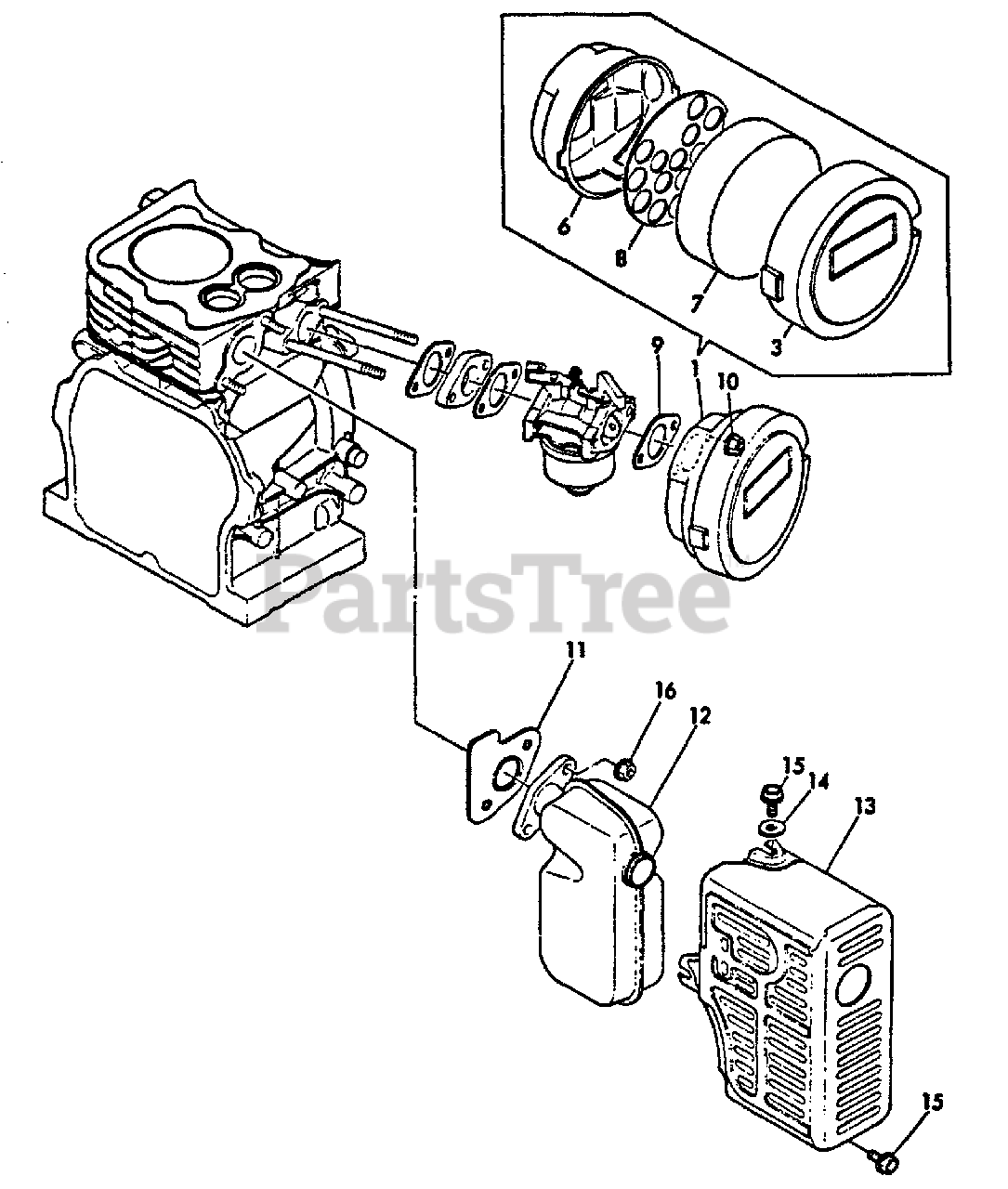

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo Y76061012570

AIR CLEANER ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo Y76061012550

AIR FILTER COVER ASSY
(Superseded to Discontinued)

$

$

Not available

6

Echo Y16061012520

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16061012540

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16061012550

RETAINER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16061056150

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

10

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16061013201

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16061013501

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16061013800

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

14

Echo Y16012076940

WASHER
(Superseded to Discontinued)

$

$

Not available

15

Echo Y26476060142

BOLT - 6X8 -- PLATED
(Superseded to Discontinued)

$

$

Not available

16

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available
