WP-2000 - Echo Water Pump (SN: A1010 - A9999) PUMP, FRAME Parts Diagram

Water Pump

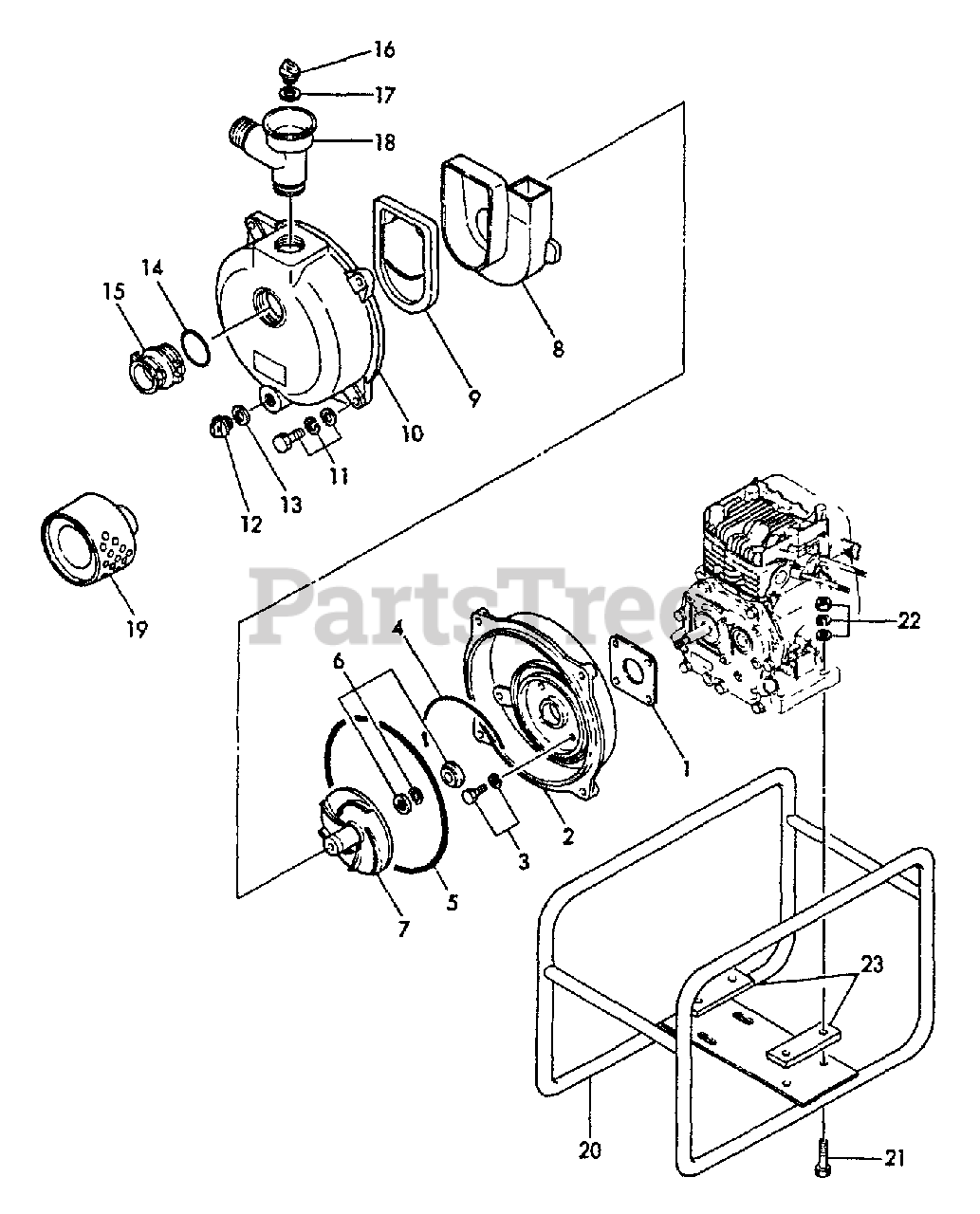

PUMP, FRAME Parts Diagram

  • Title

1

Echo Y16066495110

GASKET, CASING
(Superseded to Discontinued)

$

$

Not available

2

Echo Y16066495120

CASE, PUMP
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16066495130

BOLT, CASING

$1.99

$

Usually ships in 2-4 days

0

4

Echo Y16066495140

GASKET, CASING

$1.99

$

Usually ships in 2-4 days

0

5

Echo Y16066495150

O-RING, CASING

$14.99

$

Usually ships in 2-4 days

0

6

Echo Y16066495160

SEAL
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16066495170

IMPELLER
(Superseded to Discontinued)

Note: Shim 0.2 Y50020000000

$

$

Not available

8

Echo Y16066495180

HOUSING
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16066495190

VALVE, STOP

$28.99

$

Usually ships in 2-4 days

0

10

Echo Y16066495200

COVER
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16066495210

BOLT, COVER
(Superseded to Discontinued)

$

$

Not available

12

Echo Y16066495220

CAP, DRAIN
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16066495230

GASKET

$0.99

$

Usually ships in 2-4 days

0

14

Echo Y16066495240

O-RING, HOSE NIPPLE

$2.49

$

Usually ships in 2-4 days

0

15

Echo Y16066495250

NIPPLE
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16066495260

CAP, DELIVERY

$4.49

$

Usually ships in 2-4 days

0

17

Echo Y16066495270

GASKET, DELIVERY

$0.99

$

Usually ships in 2-4 days

0

18

Echo Y16066495280

BEND, DELIVERY
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16066495290

STRAINER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

20

Echo Y16066495300

BASE
(Superseded to Discontinued)

$

$

Not available

21

Echo Y16066495310

BOLT, ENGINE
(Superseded to Discontinued)

$

$

Not available

22

Echo Y16066495320

NUT
(Superseded to Discontinued)

$

$

Not available

23

Echo Y16066495330

PLATE
(Superseded to Discontinued)

$

$

Not available

Echo Y50020000000

SHIM - 2
(Superseded to Discontinued)

$

$

Not available
