WP-3000 - Echo Water Pump (SN: F7299 - F9999) Cylinder Block Parts Diagram

Water Pump

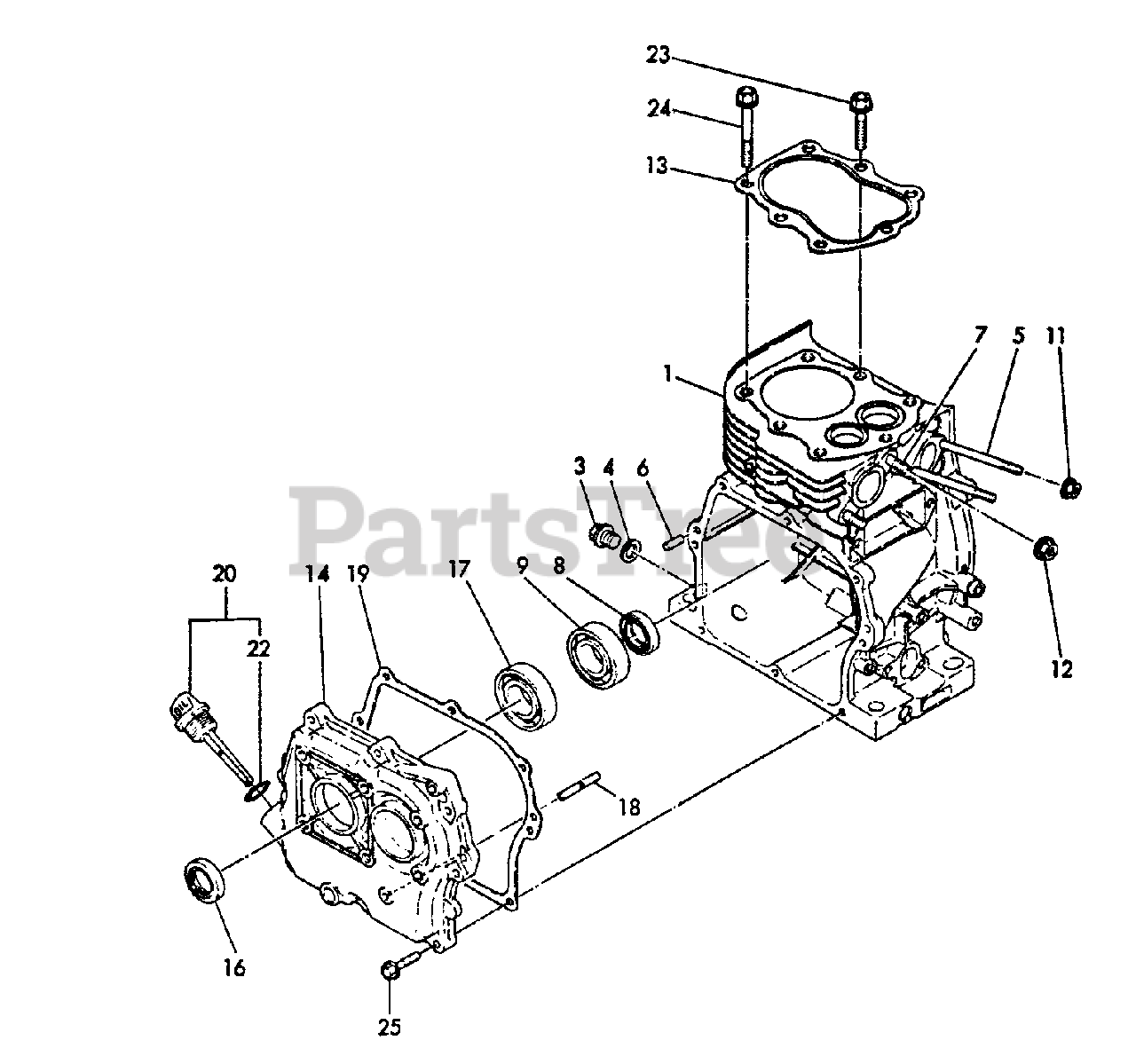

Cylinder Block Parts Diagram

  • Title

1

Echo Y76077001560

CYLINDER BLOCK SET
(Superseded to Discontinued)

$

$

Not available

3

Echo Y16061001690

PLUG, DRAIN
(Superseded to Discontinued)

$

$

Not available

4

Echo Y10420059170

GASKET
(Superseded to Discontinued)

$

$

Not available

5

Echo Y16061004570

BOLT - 6X70
(Superseded to Discontinued)

$

$

Not available

6

Echo Y22312060160

PIN - 6X16
(Superseded to Discontinued)

$

$

Not available

7

Echo Y26216080182

STUD - 8X18 -- PLATED
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16021002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

9

Echo Y24101062050

BEARING, BALL - 6205C3
(Superseded to Discontinued)

$

$

Not available

11

Echo Y26366060002

NUT - 6 -- FLANGE
(Superseded to Discontinued)

$

$

Not available

12

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

13

Echo Y16071001330

GASKET, CYLINDER

$8.49

$

Usually ships in 2-4 days

0

14

Echo Y76074001500

SIDE COVER ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo Y16021002220

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

17

Echo Y24101062050

BEARING, BALL - 6205C3
(Superseded to Discontinued)

$

$

Not available

18

Echo Y16061061100

SHAFT, GOVERNOR
(Superseded to Discontinued)

$

$

Not available

19

Echo Y16071001410

GASKET, SIDE COVER

$3.49

$

Usually ships in 2-4 days

0

20

Echo Y16071001760

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

22

Echo Y24311000180

O-RING - 18
(Superseded to Discontinued)

$

$

Not available

23

Echo Y16061004172

BOLT - 8X39
(Superseded to Discontinued)

$

$

Not available

24

Echo Y16061004211

BOLT - 8X65
(Superseded to Discontinued)

$

$

Not available

25

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available
