WP-3000 - Echo Water Pump (SN: F7299 - F9999) Ignition, Stop Switch Parts Diagram

Water Pump

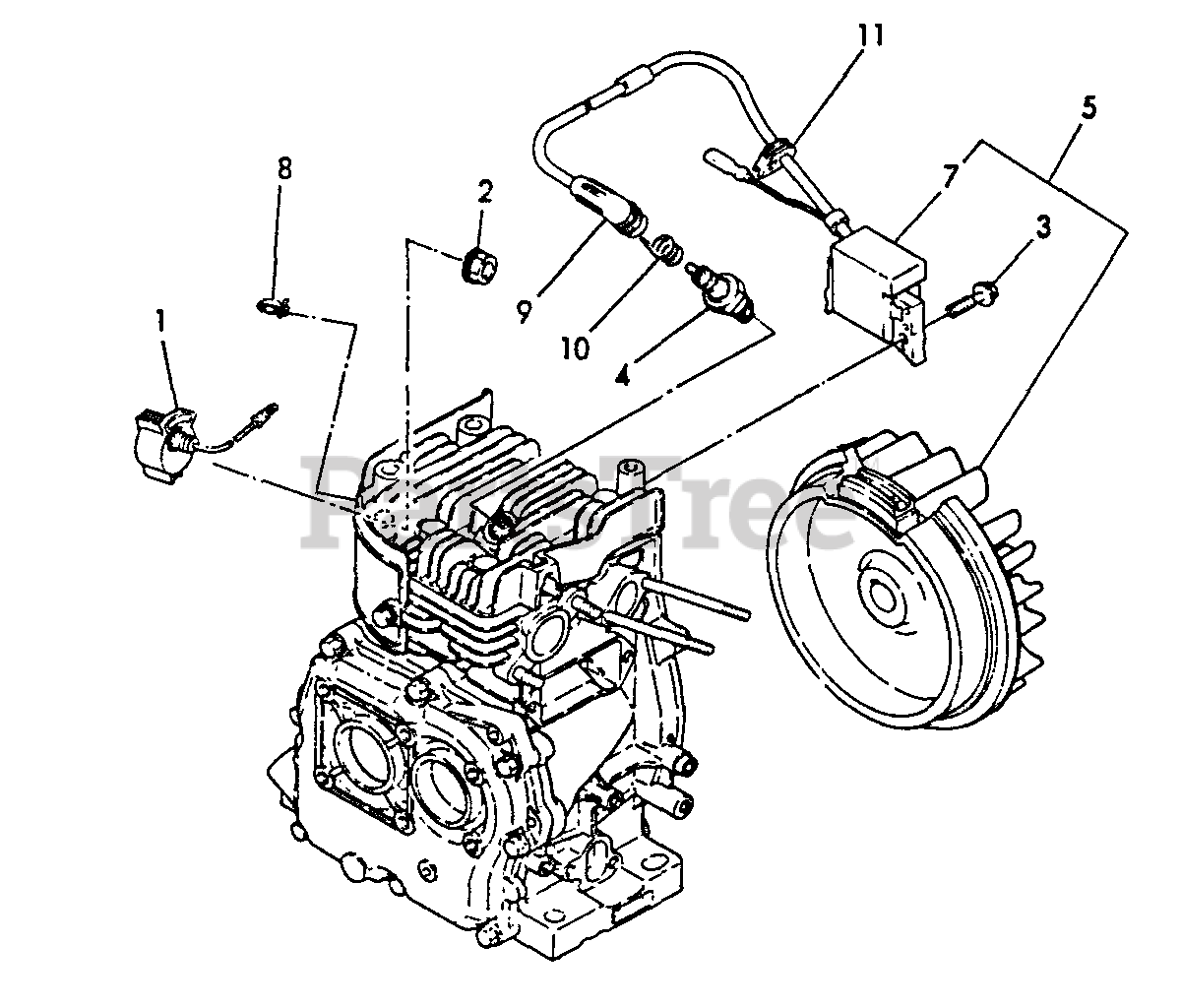

Ignition, Stop Switch Parts Diagram

  • Title

1

Echo Y16061177250

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo Y26366080002

NUT - 8
(Superseded to Discontinued)

$

$

Not available

3

Echo Y26476060252

BOLT - 6X25
(Superseded to Discontinued)

$

$

Not available

4

Echo Y16023278010

SPARK PLUG

$13.99

$

Usually ships in 2-4 days

0

5

Echo Y16074078061

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

7

Echo Y16071078511

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

8

Echo Y16071078700

CLAMP
(Superseded to Discontinued)

$

$

Not available

9

Echo Y16070078040

CAP, PLUG
(Superseded to Discontinued)

$

$

Not available

10

Echo Y16070078050

TERMINAL, SPARK PLUG CAP
(Superseded to Discontinued)

$

$

Not available

11

Echo Y16070078720

GROMMET
(Superseded to Discontinued)

$

$

Not available
