WP20 X ACF6 (WZBE) - Honda Water Pump, Made in Japan (SN: WZBE-1000001 - WZBE-1399999) CASING + IMPELLER Parts Diagram

Water Pump, Made in Japan

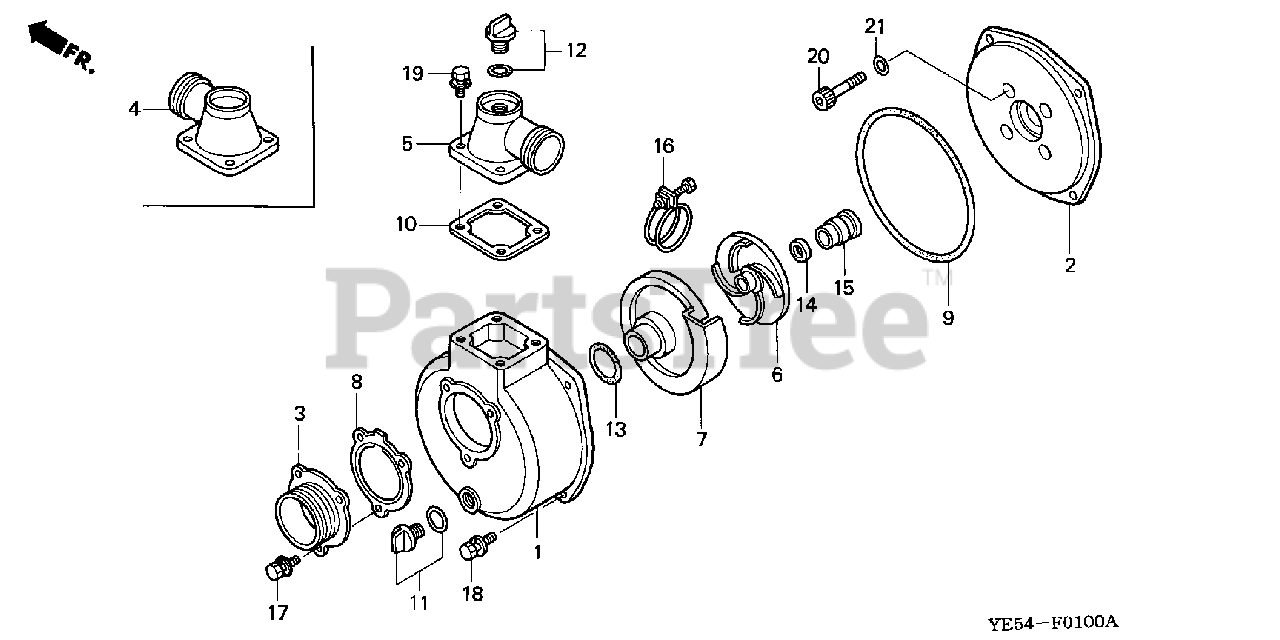

CASING + IMPELLER Parts Diagram

  • Title

1

Honda 78101-YE5-003

CASING

Note: Use up to Frame SN 1281310.

$143.99

$

Usually ships in 3-6 days

0

1

Honda 78101-YE5-602

SEE PART DETAILS - PRI; CASING

Note: Use from Frame SN 1281311.

$

$

Not available

2

Honda 78102-YE5-003

COVER, CASING

$

$

Not available

3

Honda 78103-YE5-611

INLET (NPT)

$

$

Not available

4

Honda 78104-YE5-611

OUTLET (NPT)

$

$

Not available

6

Honda 78106-YE5-003

IMPELLER

$

$

Not available

7

Honda 78107-YE5-003

CASE, VOLUTE

$

$

Not available

8

Honda 78110-YE5-003

VALVE, IN.

$29.99

$

In Stock, only 3 left!

0

9

Honda 78112-YE5-003

RING, CASING SEAL

$16.99

$

In Stock, only 1 left!

0

10

Honda 78114-YE5-003

GASKET, OUTLET

$13.99

$

Usually ships in 3-6 days

0

11

Honda 78117-YE5-003

CAP, FILLER

$12.99

$

Usually ships in 3-6 days

0

12

Honda 78117-YE5-003

CAP, FILLER

$12.99

$

Usually ships in 3-6 days

0

13

Honda 78118-YE5-003

O-RING (53.6X5.7)

$10.99

$

Usually ships in 3-6 days

0

14

Honda 78122-YE5-003

SHIM, ADJUSTER

$

$

Not available

15

Honda 78130-YE5-003

SEAL, MECHANICAL

$

$

Not available

16

Honda 78139-YE5-003

BAND, HOSE

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90101-YE5-003

BOLT-WASHER (8X20)

$5.49

$

In Stock, only 2 left!

0

18

Honda 90102-YE5-003

BOLT-WASHER (8X22)

$5.49

$

Usually ships in 3-6 days

0

19

Honda 90103-YE5-003

BOLT-WASHER (8X25)

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90105-YE5-003

BOLT, SOCKET (8X60)

$5.49

$

In Stock, only 4 left!

0

21

Honda 90501-YE5-003

WASHER, SEAL

$6.49

$

Usually ships in 3-6 days

0
