WP20 X ACF6 (WZBE) - Honda Water Pump, Made in Japan (SN: WZBE-1000001 - WZBE-1399999) FUEL TANK Parts Diagram

Water Pump, Made in Japan

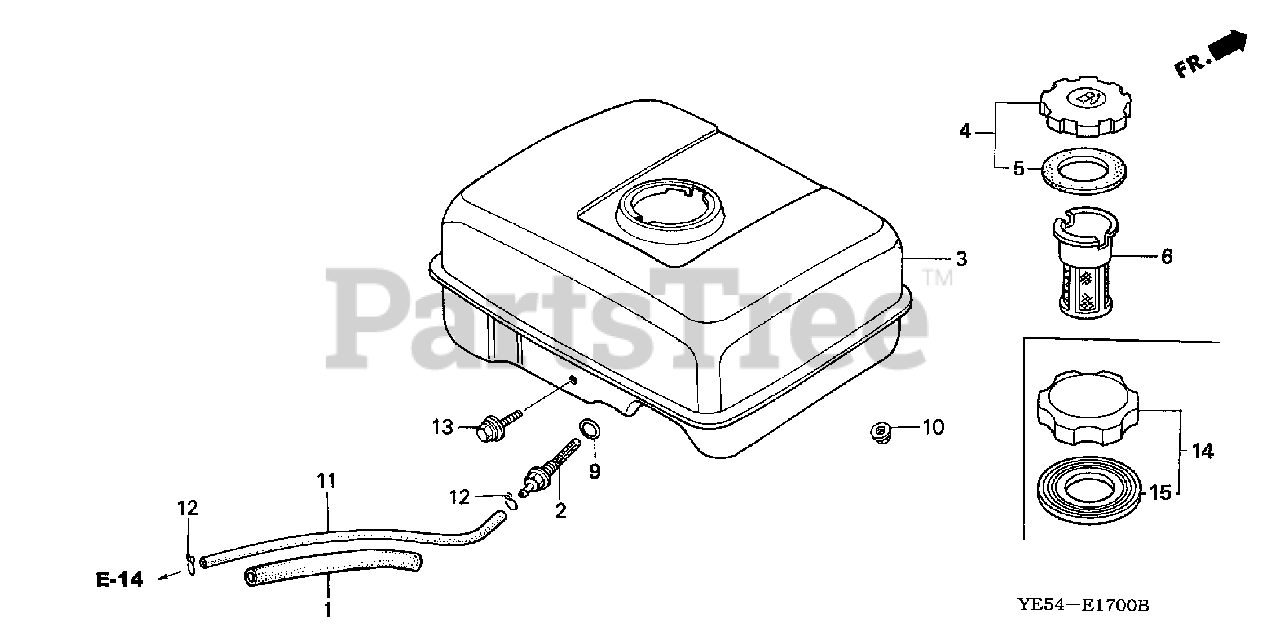

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, Qty 6

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 15

0

3

Honda 17510-ZE0-020ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

$49.99

$

In Stock, only 1 left!

0

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 4203082.

$

$

Not available

5

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-003)

Note: Use up to Engine SN 4203082.

$

$

Not available

5

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

Note: Use up to Engine SN 4203082.

$

$

Not available

6

Honda 17672-ZE2-W01

SEE PART DETAILS - PRI; FILTER, FUEL

$12.99

$

Usually ships in 3-6 days

0

9

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 12

0

10

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

11

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$54.99

$

In Stock, Qty 7

0

12

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

13

Honda 90004-ZH7-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X29)

$1.49

$

In Stock, Qty 8

0

14

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER

Note: Use from Engine SN 4203083.

$

$

Not available

15

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 4203083.

$3.49

$

Usually ships in 3-6 days

0
