WP20 X ACF6 (WZBE) - Honda Water Pump, Made in Japan (SN: WZBE-1000001 - WZBE-1399999) PISTON + CRANKSHAFT Parts Diagram

Water Pump, Made in Japan

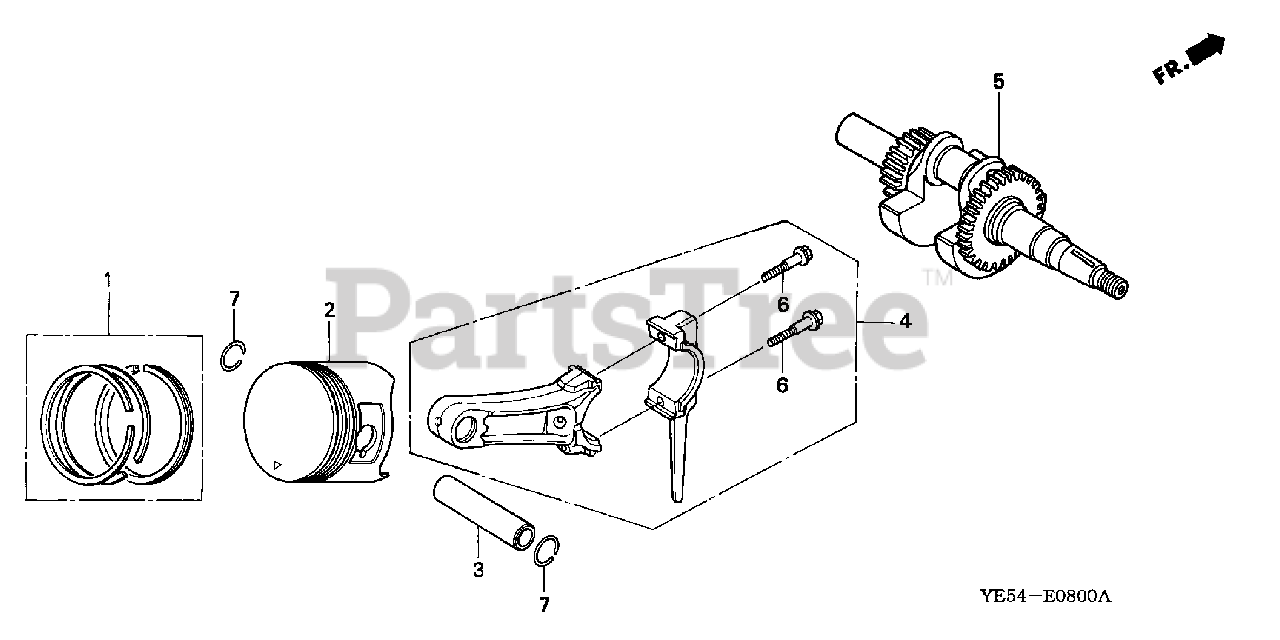

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

Note: Use up to Engine SN 3284616.

$32.99

$

In Stock, only 3 left!

0

1

Honda 13010-ZH7-003

RING SET, PISTON (STD) (TEIKOKU)
(Superseded to 13010-ZH7-004)

Note: Use from Engine SN 3993726.

$37.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZH7-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON)

Note: Use from Engine SN 3993726.

$37.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZK7-V02

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

Note: Use from Engine SN 3284617 to 3993725.

$

$

Not available

1

Honda 13011-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) Use up to Engine SN 3284616.

$47.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZE6-014

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 3284616.
(Superseded to 13011-ZE6-013)

$47.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZH7-003

RING SET, PISTON (OS 0.25) Use from Engine SN 3993726.
(Superseded to 13011-ZH7-004)

$41.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZH7-004

RING SET, PISTON (OS 0.25) Use from Engine SN 3993726.

$41.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZK7-V01

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use from Engine SN 3284617 to 3993725.

$

$

Currently unavailable

1

Honda 13011-ZK7-V02

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) Use from Engine SN 3284617 to 3993725.

$36.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) Use up to Engine SN 3284616.

$

$

Not available

1

Honda 13012-ZH7-003

RING SET, PISTON (OS 0.50) Use from Engine SN 3993726.
(Superseded to 13012-ZH7-004)

$

$

Not available

1

Honda 13012-ZH7-004

RING SET, PISTON (OS 0.50) Use from Engine SN 3993726.

$

$

Not available

1

Honda 13012-ZK7-V02

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) Use from Engine SN 3284617 to 3993725.

$36.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZE6-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) Use up to Engine SN 3284616.

$48.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZH7-003

RING SET, PISTON (0.75) Use from Engine SN 3993726.
(Superseded to 13013-ZH7-004)

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZH7-004

RING SET, PISTON (0.75) Use from Engine SN 3993726.

$39.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZK7-V02

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) Use from Engine SN 3284617 to 3993725.

$

$

Not available

2

Honda 13101-ZH7-010

SEE PART DETAILS - PRI; PISTON (STD)

$44.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZH7-010

SEE PART DETAILS - PRI; PISTON (OS 0.25)

$63.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZH7-010

SEE PART DETAILS - PRI; PISTON (OS 0.50)

$42.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZH7-010

SEE PART DETAILS - PRI; PISTON (0.75)

$31.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE0-000

PIN, PISTON

$8.49

$

In Stock, Qty 9

0

4

Honda 13200-ZE0-000

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING
(Superseded to 13200-Z4H-900)

$41.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZE0-631

CRANKSHAFT (W-TYPE)

$277.99

$

Usually ships in 3-6 days

0

6

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 3 left!

0

7

Honda 90551-ZE0-000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (13MM)

$1.99

$

In Stock, Qty 20+

0
