WS 440 HF - Husqvarna Wall Saw (2010-11) ELECTRICAL Parts Diagram

Wall Saw

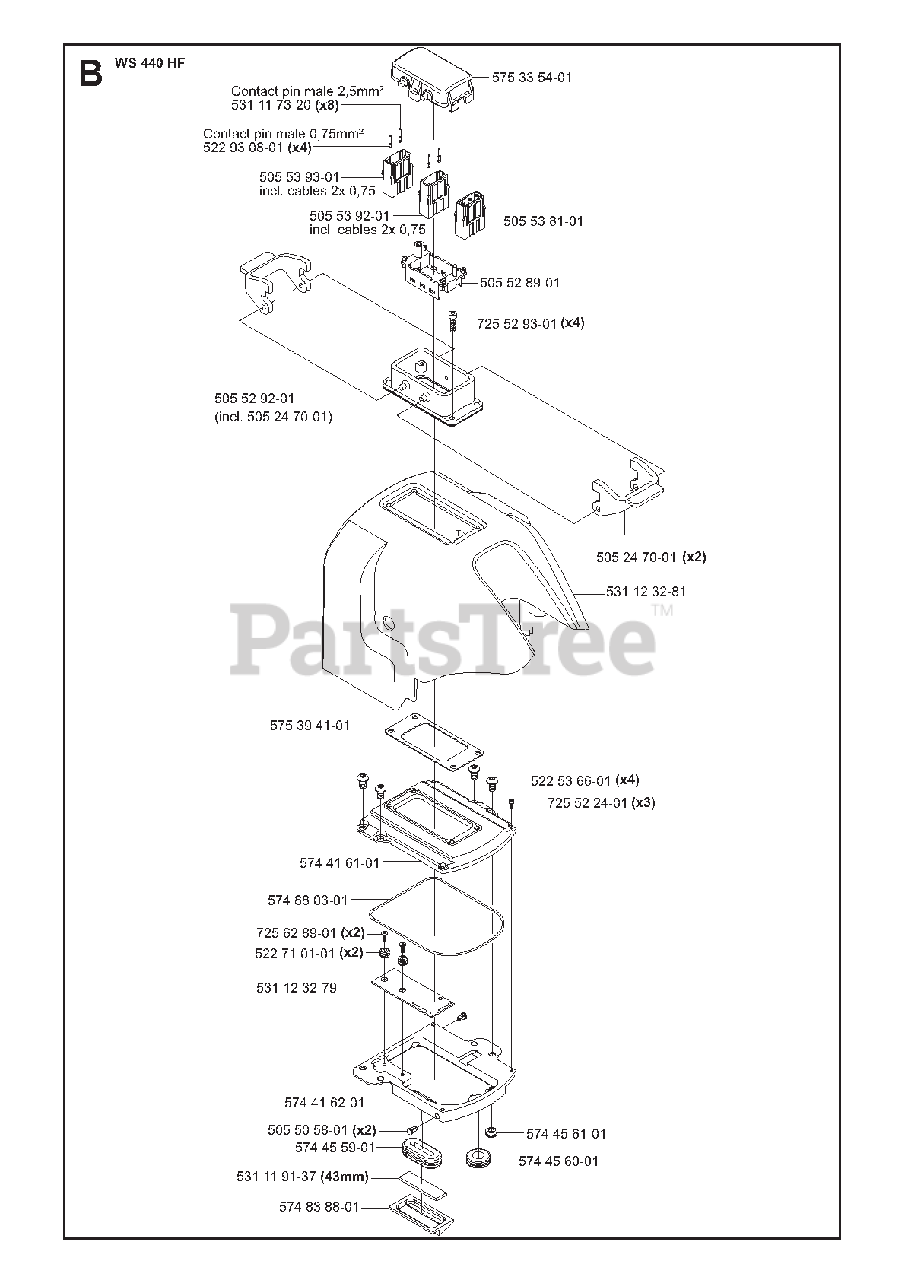

ELECTRICAL Parts Diagram

  • Title

505 50 58-01

Husqvarna Construction 505 50 58-01

PLUG

$17.99

$

Usually ships in 3-10 days

0

505 52 89-01

Husqvarna Construction 505 52 89-01

FRAME

$161.99

$

Usually ships in 3-10 days

0

505 52 92-01

Husqvarna Construction 505 52 92-01

CONTACT

$205.99

$

Usually ships in 3-10 days

0

505 53 81-01

Husqvarna Construction 505 53 81-01

CONSOLE

$160.99

$

Usually ships in 3-10 days

0

505 53 92-01

Husqvarna Construction 505 53 92-01

CABLE KIT

$

$

Not available

505 53 93-01

Husqvarna Construction 505 53 93-01

CABLE KIT

$

$

Not available

522 53 66-01

Husqvarna Construction 522 53 66-01

SCREW

$1.17

$

Usually ships in 3-10 days

0

522 71 01-01

Husqvarna Construction 522 71 01-01

GROMMET

$4.67

$

Usually ships in 3-10 days

0

531 11 91-37

Husqvarna Construction 531 11 91-37

SEAL

$2.98

$

Usually ships in 3-10 days

0

531 12 32-79

Husqvarna Construction 531 12 32-79

PRINTED CIRCUIT ASSY

$504.99

$

Usually ships in 3-10 days

0

531 12 32-81

Husqvarna Construction 531 12 32-81

PROTECTIVE COVER

$198.17

$

Usually ships in 3-10 days

0

574 41 61-01

Husqvarna Construction 574 41 61-01

ELECTRONIC BOX

$198.33

$

Usually ships in 3-10 days

0

574 41 62-01

Husqvarna Construction 574 41 62-01

ELECTRONIC BOX

$198.33

$

Usually ships in 3-10 days

0

574 45 59-01

Husqvarna Construction 574 45 59-01

SEAL

$6.53

$

Usually ships in 3-10 days

0

574 45 60-01

Husqvarna Construction 574 45 60-01

SEAL

$5.25

$

Usually ships in 3-10 days

0

574 45 61-01

Husqvarna Construction 574 45 61-01

SEAL

$5.25

$

Usually ships in 3-10 days

0

574 83 88-01

Husqvarna Construction 574 83 88-01

HOLDER

$44.33

$

Usually ships in 3-10 days

0

574 88 03-01

Husqvarna Construction 574 88 03-01

O-RING

$6.99

$

Usually ships in 3-10 days

0

575 33 54-01

Husqvarna Construction 575 33 54-01

COVER

$148.99

$

Usually ships in 3-10 days

0

575 39 41-01

Husqvarna Construction 575 39 41-01

GASKET

$16.99

$

Usually ships in 3-10 days

0

725 52 93-01

Husqvarna 725 52 93-01

SCREW IHSCM

$3.99

$

Usually ships in 3-10 days

0

725 62 89-01

Husqvarna Construction 725 62 89-01

SCREW IHCSFM

$1.34

$

Usually ships in 3-10 days

0

505 24 70-01

Husqvarna Construction 505 24 70-01

SHACKLE

$74.99

$

Usually ships in 3-10 days

0

522 93 08-01

Husqvarna Construction 522 93 08-01

TERMINAL

$8.99

$

Usually ships in 3-10 days

0

531 11 73-20

Husqvarna Construction 531 11 73-20

TERMINAL

$3.99

$

Usually ships in 3-10 days

0

725 52 24-01

Husqvarna Construction 725 52 24-01

SCREW

$1.99

$

In Stock, Qty 7

0
