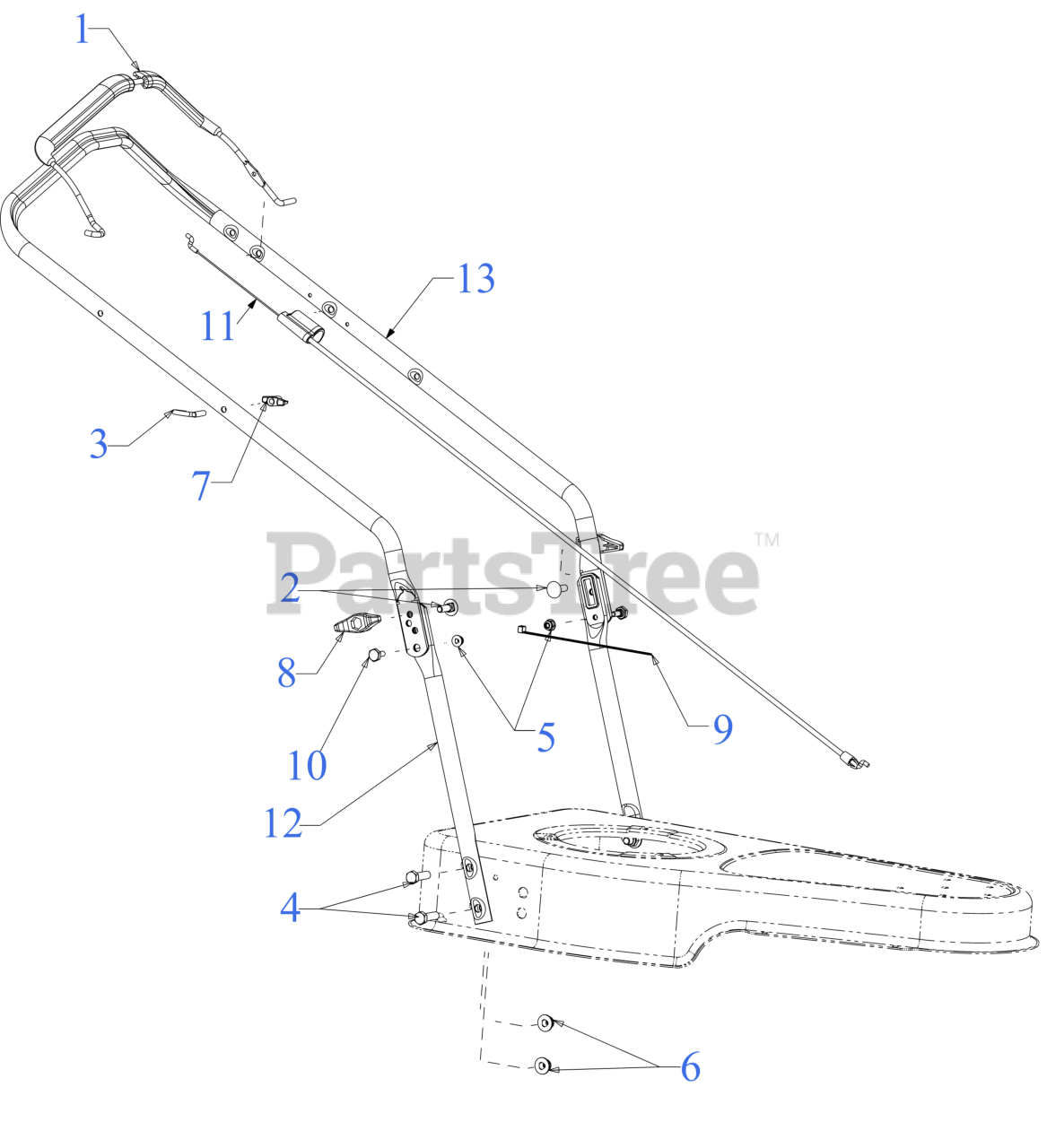

WST 100 (25A-26SD710) - Cub Cadet Walk-Behind Trimmer (2022) Handle Assembly Parts Diagram

Walk-Behind Trimmer

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 631-05292P

OPERATOR BAIL ASSEMBLY

$43.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 13

0

4

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 4 left!

0

10

Cub Cadet 738-04419A

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 946-04661A

CONTROL CABLE 37.58"

Note: (4/27/22 & After)

$13.99

$

In Stock, Qty 20+

0

11

Cub Cadet 746P06974

ERS CONTROL CABLE 49.7"

Note: (4/27/22 & Before)

$18.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 749-05102-0637

LOWER HANDLE (ADJUSTABLE)

$11.99

$

In Stock, Qty 9

0

13

Cub Cadet 749-05842A

UPPER HANDLE

Note: *CHOOSE COLOR WHEN ORDERING*

$36.99

$

Usually ships in 3-6 days

0
