WT-1610 HSP - Echo Wheeled Trimmer (SN: 120WTH000001 - 120WTH999999) Transmission Parts Diagram

Wheeled Trimmer

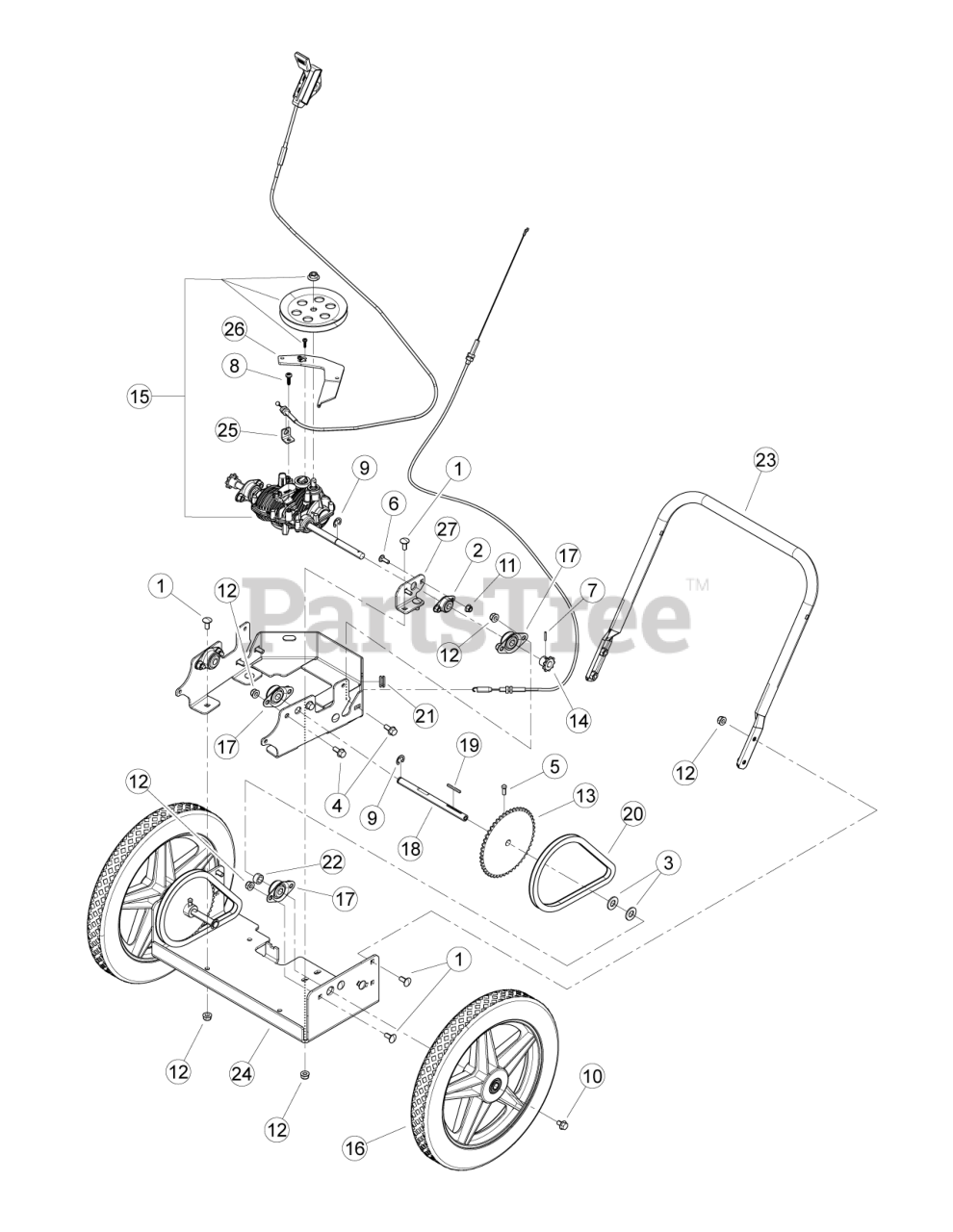

Transmission Parts Diagram

  • Title

1

Echo YH434000110

BOLT, 5/16-18 × 3/4 SN GR5 CRG

$0.99

$

Usually ships in 2-4 days

0

2

Echo YH453000110

BEARING, 1/2 FLANGE

$19.99

$

Usually ships in 2-4 days

0

3

Echo YH451000320

WASHER, 1/2 SAE FLAT

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH436000010

BOLT, 5/16 × 3/4 FLANGE NC

$0.99

$

Usually ships in 2-4 days

0

5

Echo YH420000000

SCREW, SET 1/4 × 5/8 SQ HD

$0.99

$

Usually ships in 2-4 days

0

6

Echo YH434000020

BOLT, 1/4 × 3/4 GR5 CRG ZP

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH471000100

PIN, 1/8 × 3/4 IN. SPRING LOCK

$0.99

$

Usually ships in 2-4 days

0

8

Echo YH415000260

SCREW, M6 × 1 mm × 20 mm FORMING

$4.99

$

Usually ships in 2-4 days

0

9

Echo YH452000670

CLIP, 1/2" E

$0.99

$

Usually ships in 2-4 days

0

10

Echo YH434000130

BOLT, 5/16-18 × 1/2 G5 HH SERRATED FLANGE

$1.49

$

Usually ships in 2-4 days

0

11

Echo YH449000030

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 2-4 days

0

12

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

13

Echo YH484000020

SPROCKET, 35B48T WITH .500 HUB ID

$42.99

$

Usually ships in 2-4 days

0

14

Echo YH484000030

SPROCKET, 35B9T WITH .500 HUB ID

$15.99

$

Usually ships in 2-4 days

0

15

Echo YH602000050

TRANSMISSION, 3 SPEED MG512

$409.99

$

Usually ships in 2-4 days

0

16

Echo YH478000130

WHEEL, TRIMMER HUB 15 × 1.75

$84.99

$

Usually ships in 2-4 days

0

17

Echo YH453000140

BUSHING, FLANGE 1/2 DIA 38 DEG MAX ANGLE

$33.99

$

Usually ships in 2-4 days

0

18

Echo YH478000140

SHAFT, WT AXLE

$60.99

$

Usually ships in 2-4 days

0

19

Echo YH469000070

KEY, 1/8 × 1/8 × 1-3/8

$3.49

$

Usually ships in 2-4 days

0

20

Echo YH454000030

CHAIN, #35 × 60 PITCH W/ C LINK

$24.99

$

Usually ships in 2-4 days

0

21

Echo YH468000500

GROMMET, 3/8 ID PUSH IN

$4.49

$

Usually ships in 2-4 days

0

22

Echo YH475000240

SPACER, .75 OD × .5 ID × .37

$6.99

$

Usually ships in 2-4 days

0

23

Echo YH466000160

HANDLE BAR, LOWER TRIMMER PAINTED

$84.99

$

Usually ships in 2-4 days

0

24

Echo YH479001860

BRACKET, WT BASE

$83.99

$

Usually ships in 2-4 days

0

25

Echo YH479001880

BRACKET, TRANS SPEED CABLE

$14.99

$

Usually ships in 2-4 days

0

26

Echo YH470000870

LEVER, WT TRANS ENGAGE SS

$47.99

$

Usually ships in 2-4 days

0

27

Echo YH479001910

BRACKET, TRANS SHAFT SUPPORT

$27.99

$

Usually ships in 2-4 days

0
