WT-1610 SP - Echo Wheeled Trimmer (SN: 130WTB000001 - 130WTB999999) Transmission Parts Diagram

Wheeled Trimmer

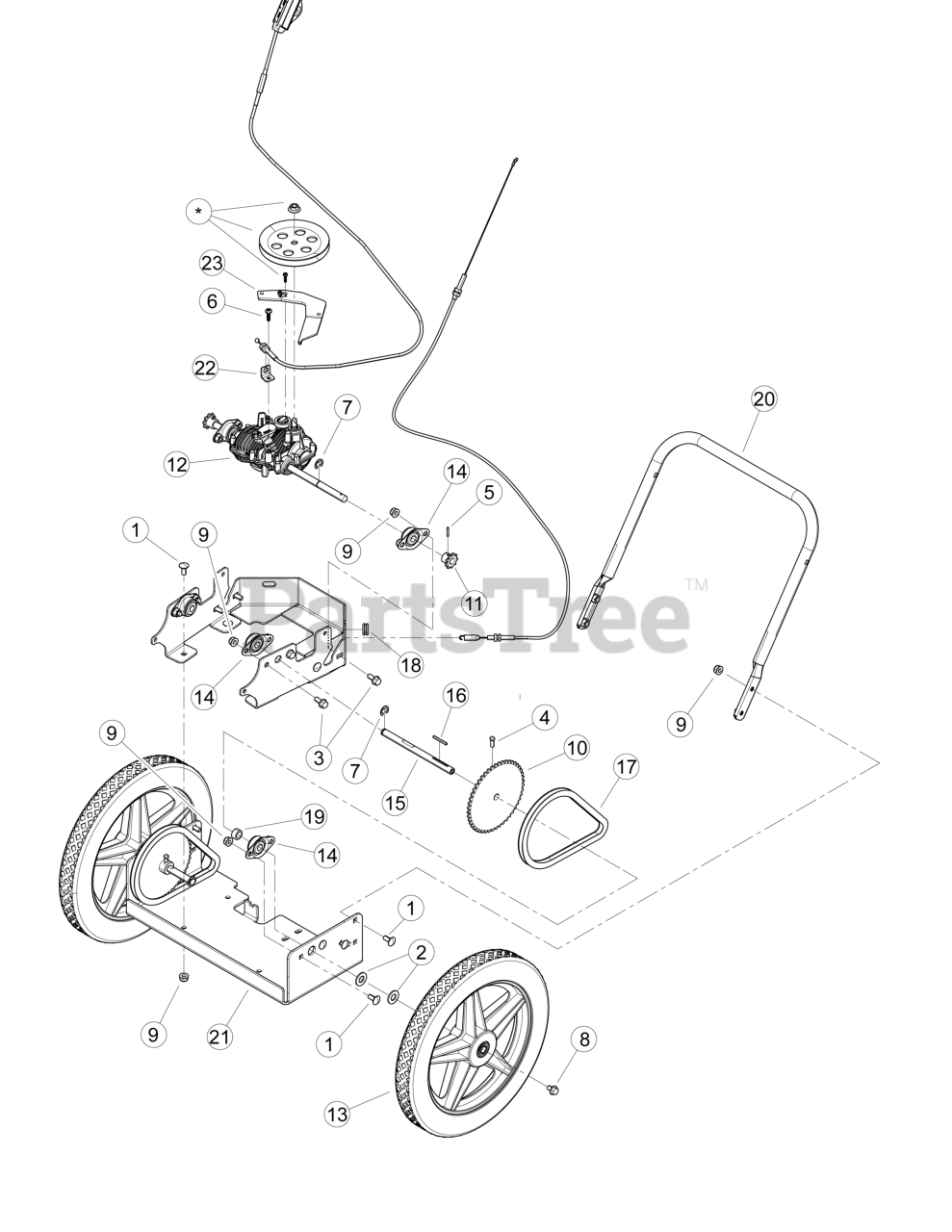

Transmission Parts Diagram

  • Title

1

Echo YH434000110

BOLT, 5/16-18 × 3/4 SN GR5 CRG

$0.99

$

Usually ships in 2-4 days

0

2

Echo YH451000320

WASHER, 1/2 SAE FLAT

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH436000010

BOLT, 5/16 × 3/4 FLANGE NC

$0.99

$

Usually ships in 2-4 days

0

4

Echo YH420000000

SCREW, SET 1/4 × 5/8 SQ HD

$0.99

$

Usually ships in 2-4 days

0

5

Echo YH471000100

PIN, 1/8 × 3/4 IN. SPRING LOCK

$0.99

$

Usually ships in 2-4 days

0

6

Echo YH415000260

SCREW, M6 × 1 mm × 20 mm FORMING

$4.49

$

Usually ships in 2-4 days

0

7

Echo YH452000670

CLIP, 1/2" E

$0.99

$

Usually ships in 2-4 days

0

8

Echo YH434000130

BOLT, 5/16-18 × 1/2 G5 HH SERRATED FLANGE

$1.49

$

Usually ships in 2-4 days

0

9

Echo YH449000040

NUT, 5/16-18 NYLOCK FLANGE

$0.99

$

Usually ships in 2-4 days

0

10

Echo YH484000020

SPROCKET, 35B48T WITH .500 HUB ID

$38.99

$

Usually ships in 2-4 days

0

11

Echo YH484000030

SPROCKET, 35B9T WITH .500 HUB ID

$13.99

$

Usually ships in 2-4 days

0

12

Echo YH602000050

TRANSMISSION, 3 SPEED MG512

$368.99

$

Usually ships in 2-4 days

0

13

Echo YH478000130

WHEEL, TRIMMER HUB 15 × 1.75

$76.99

$

Usually ships in 2-4 days

0

14

Echo YH453000140

BUSHING, FLANGE 1/2 DIA 38 DEG MAX ANGLE

$30.99

$

Usually ships in 2-4 days

0

15

Echo YH478000140

SHAFT, WT AXLE

$54.99

$

Usually ships in 2-4 days

0

16

Echo YH469000070

KEY, 1/8 × 1/8 × 1-3/8

$2.99

$

Usually ships in 2-4 days

0

17

Echo YH454000030

CHAIN, #35 × 60 PITCH W/ C LINK

$22.99

$

Usually ships in 2-4 days

0

18

Echo YH468000500

GROMMET, 3/8 ID PUSH IN

$3.99

$

Usually ships in 2-4 days

0

19

Echo YH475000240

SPACER, .75 OD × .5 ID × .37

$5.99

$

Usually ships in 2-4 days

0

20

Echo YH466000160

HANDLE BAR, LOWER TRIMMER PAINTED

$75.99

$

Usually ships in 2-4 days

0

21

Echo YH479001860

BRACKET, WT BASE

$75.99

$

Usually ships in 2-4 days

0

22

Echo YH479001880

BRACKET, TRANS SPEED CABLE

$13.99

$

Usually ships in 2-4 days

0

23

Echo YH470000870

LEVER, WT TRANS ENGAGE SS

$42.99

$

Usually ships in 2-4 days

0

*

INCLUDED WITH P/N YH6020000050 (ITEM 12)

$

$

Not available
